Removal Procedure

  1. GM4748619Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Remove the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Equinox) , or Windshield Garnish Molding Replacement (Terrain)

  2. GM4694190Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Remove the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Equinox) , or Instrument Panel Outer Trim Cover Replacement (Terrain)

  3. GM5736513Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement (Terrain without UV7) , or Instrument Panel Extension Replacement (Terrain with UV7)

  4. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Remove - Instrument Panel Trim Pad Replacement - Left Side (Equinox) , or Instrument Panel Trim Pad Replacement - Left Side (Terrain)

  5. GM5736995Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Transmission Shift Opening Bezel (1) - Remove - Front Floor Console Transmission Shift Opening Bezel Replacement (Terrain)

  6. GM5737054Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Shift Control Push-button (2) - Remove - Electronic Transmission Shift Control Push-button Replacement (Terrain)

  7. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Remove - Instrument Panel Trim Pad Replacement - Right Side (Equinox) , or Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  8. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement (Equinox) , or Instrument Panel Cluster Trim Plate Replacement (Terrain)

  9. GM4710565Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Remove - Instrument Cluster Replacement (Equinox) , or Instrument Cluster Replacement (Terrain)

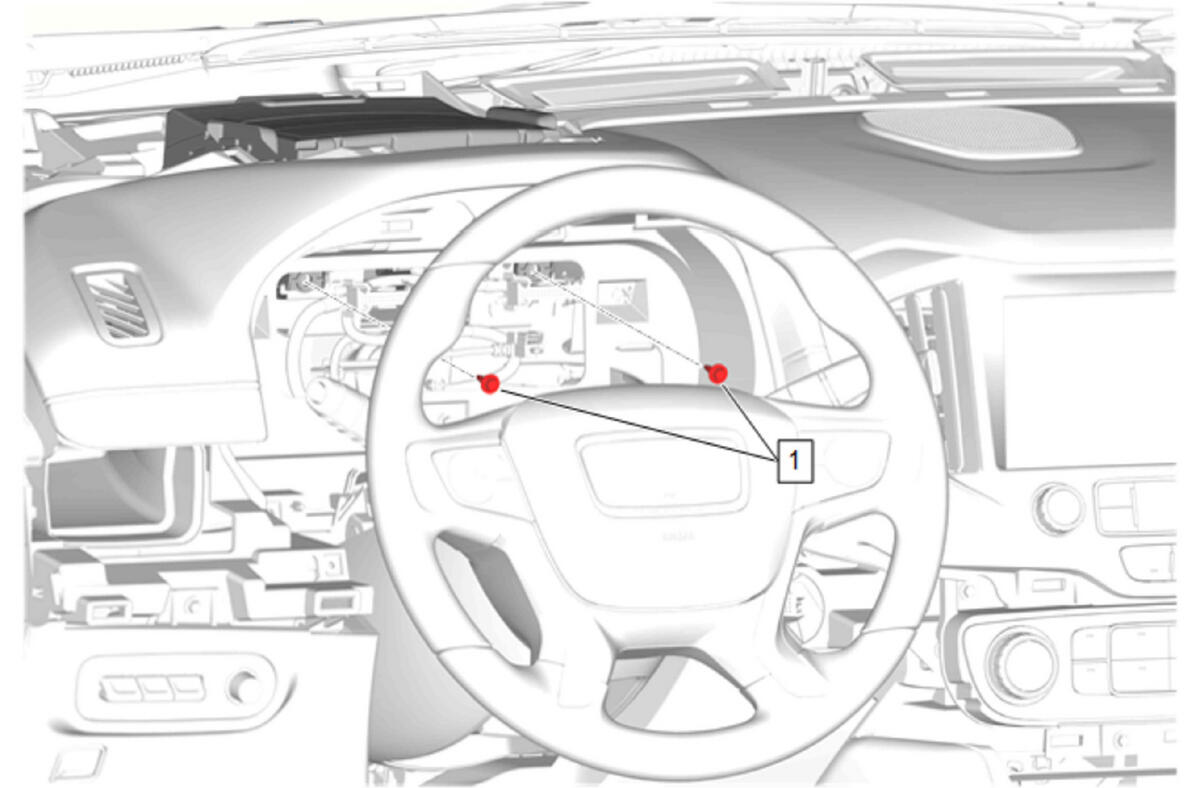

  10. GM5738596Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bolt (1) - Remove [2x]

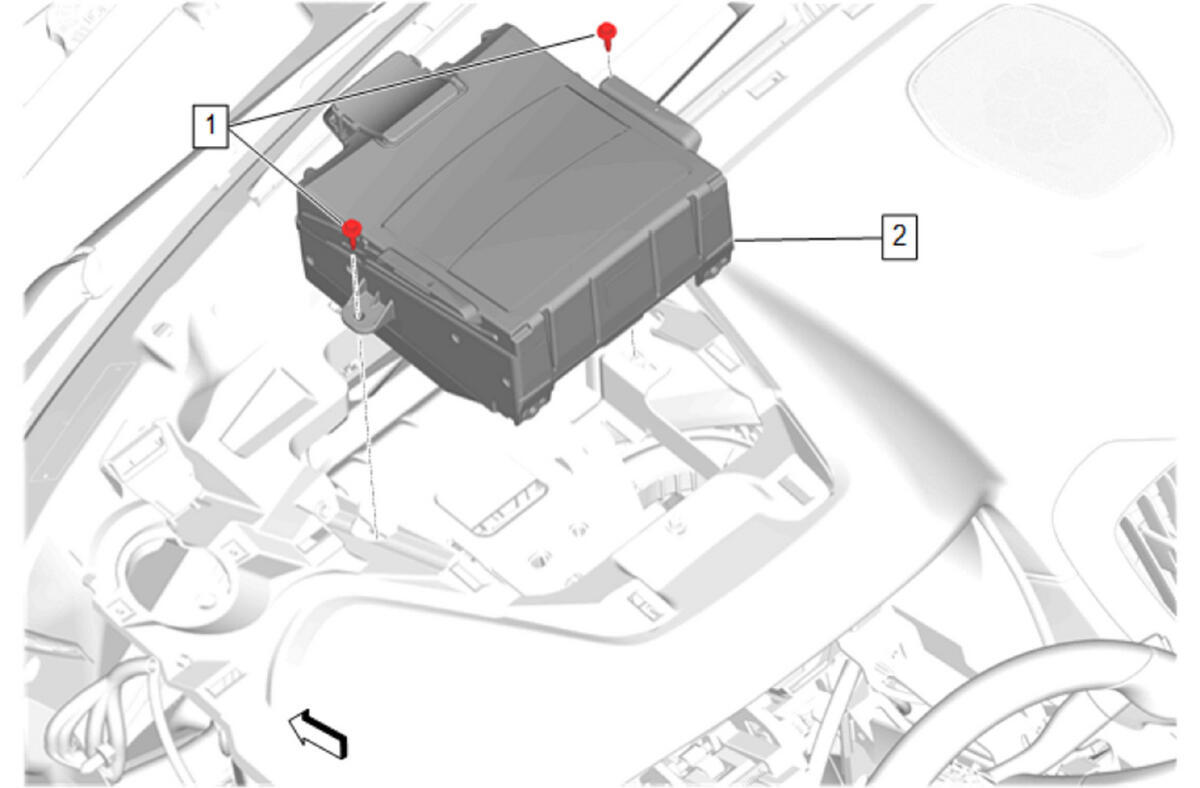

  11. GM5738598Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bolt (1) - Remove [2x]

  12. Reposition the component to access the electrical connector.
  13. Disconnect the electrical connector.
  14. Head-Up Display (2) - Remove
