Removal Procedure

  1. GM4693192Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Remove - Radio Front Center Speaker Grille Replacement (Equinox) , or Radio Front Center Speaker Grille Replacement (Terrain)

  2. GM4693123Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Remove - Radio Front Center Speaker Replacement (Equinox) , or Radio Front Center Speaker Replacement (Terrain)

  3. GM4748619Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Remove the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Equinox) , or Windshield Garnish Molding Replacement (Terrain)

  4. GM4694190Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Remove the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Equinox) , or Instrument Panel Outer Trim Cover Replacement (Terrain)

  5. GM5736513Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement (Terrain without UV7) , or Instrument Panel Extension Replacement (Terrain with UV7)

  6. GM4694926Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Remove the left and right radio front speaker (2). Radio Front Speaker Replacement (Equinox) , or Radio Front Speaker Replacement (Terrain)

  7. GM4692425Courtesy of GENERAL MOTORS COMPANY

    Remove the left and right instrument panel center trim plate applique (1, 2). Instrument Panel Center Trim Plate Applique Replacement (Terrain)

  8. GM5736995Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Transmission Shift Opening Bezel (1) - Remove - Front Floor Console Transmission Shift Opening Bezel Replacement (Terrain)

  9. GM5737054Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Shift Control Push-button (2) - Remove - Electronic Transmission Shift Control Push-button Replacement (Terrain)

  10. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Remove - Instrument Panel Trim Pad Replacement - Right Side (Equinox) , or Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  11. GM4702538Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (2) - Remove - Radio Control Assembly Replacement (Equinox) , or Radio Control Assembly Replacement (Terrain)

  12. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Remove - Instrument Panel Trim Pad Replacement - Left Side (Equinox) , or Instrument Panel Trim Pad Replacement - Left Side (Terrain)

  13. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement (Equinox) , or Instrument Panel Cluster Trim Plate Replacement (Terrain)

  14. GM4695950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Remove - Instrument Panel Light Conductor Lamp Replacement (Equinox) , or Instrument Panel Light Conductor Lamp Replacement (GMC)

  15. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Remove - Instrument Panel Compartment Door Replacement (Equinox) , or Instrument Panel Compartment Door Replacement (Terrain)

  16. GM5739781Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement (Equinox) , or Instrument Panel Upper Trim Panel Replacement (Terrain without UV7) , or Instrument Panel Upper Trim Panel Replacement (Terrain with UV7)

  17. GM4710565Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Remove - Instrument Cluster Replacement (Equinox) , or Instrument Cluster Replacement (Terrain)

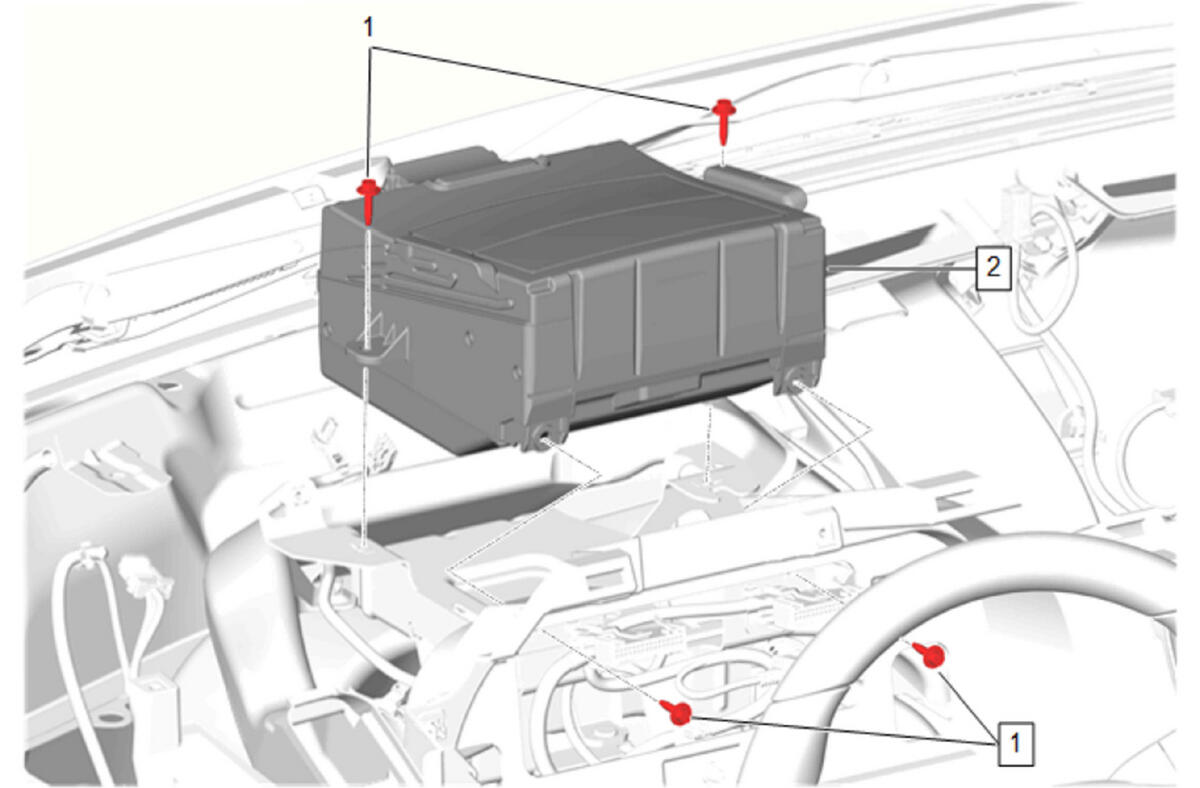

  18. GM5742875Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bolt (1) - Remove [4x]

  19. Reposition the component to access the electrical connector.
  20. Disconnect the electrical connector.
  21. Head-Up Display (2) - Remove
  22. GM4726911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Remove - Side Window Defogger Outlet Duct Replacement - Left Side (Equinox) , or Side Window Defogger Outlet Duct Replacement - Left Side (Terrain)

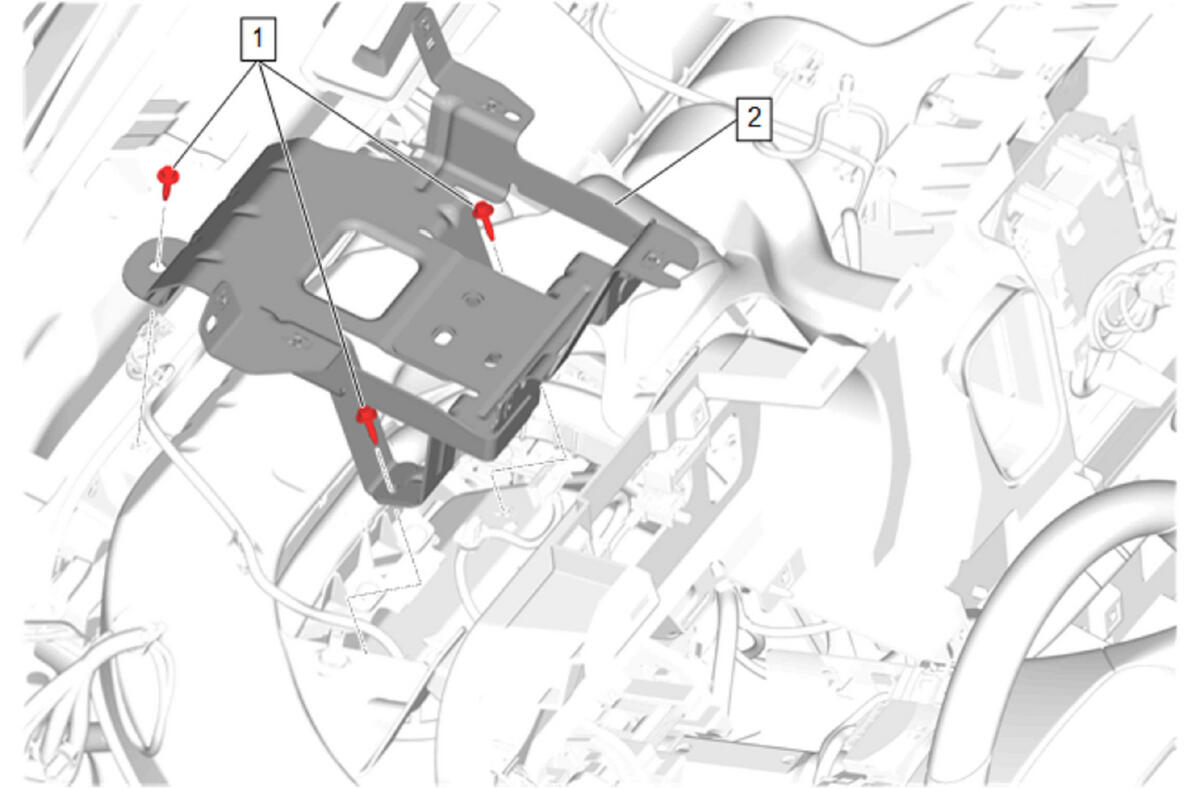

  23. GM5742876Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bracket Bolt (1) - Remove [3x]

  24. Disconnect and reposition harness as necessary.
  25. Head-Up Display Bracket (2) - Remove
