Installation Procedure

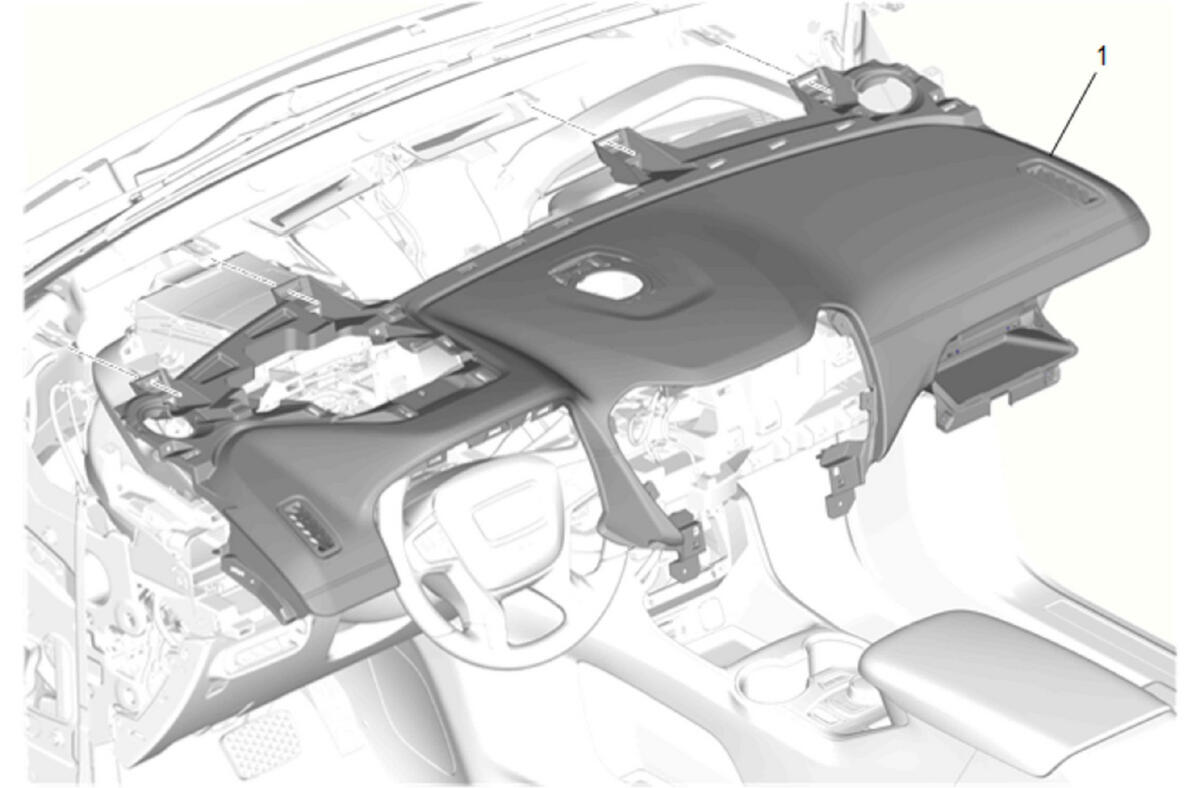

  1. GM5739781Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install

  2. Align the plenum bracket and locator pins before securing the instrument panel upper trim panel retainer clips.
  3. GM4717097Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel wiring harness retainer (1) to the instrument panel upper trim panel.

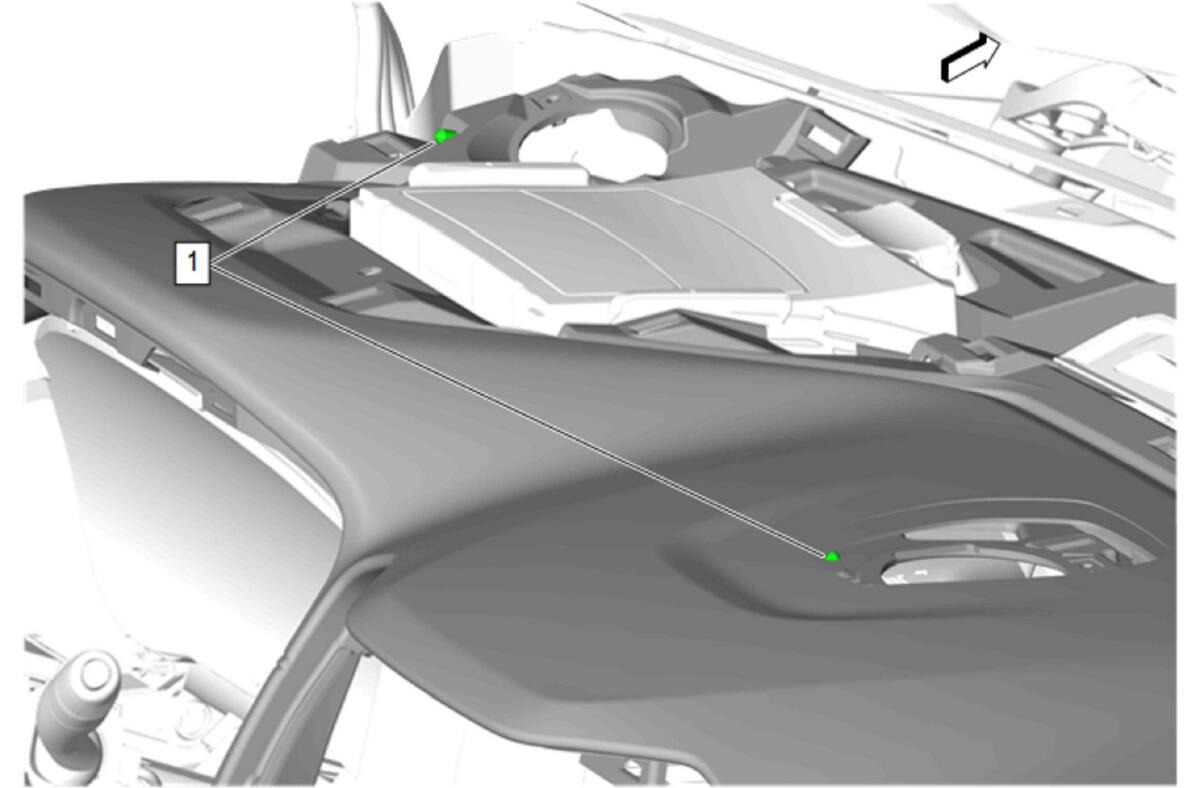

  4. GM5742798Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel wiring harness retainers (1) to the instrument panel upper trim panel.

  5. GM4717095Courtesy of GENERAL MOTORS COMPANY

    Connect the airbag electrical connector to the instrument panel wiring harness (1).

  6. GM4717094Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

  7. GM4717093Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

  8. GM4717092Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

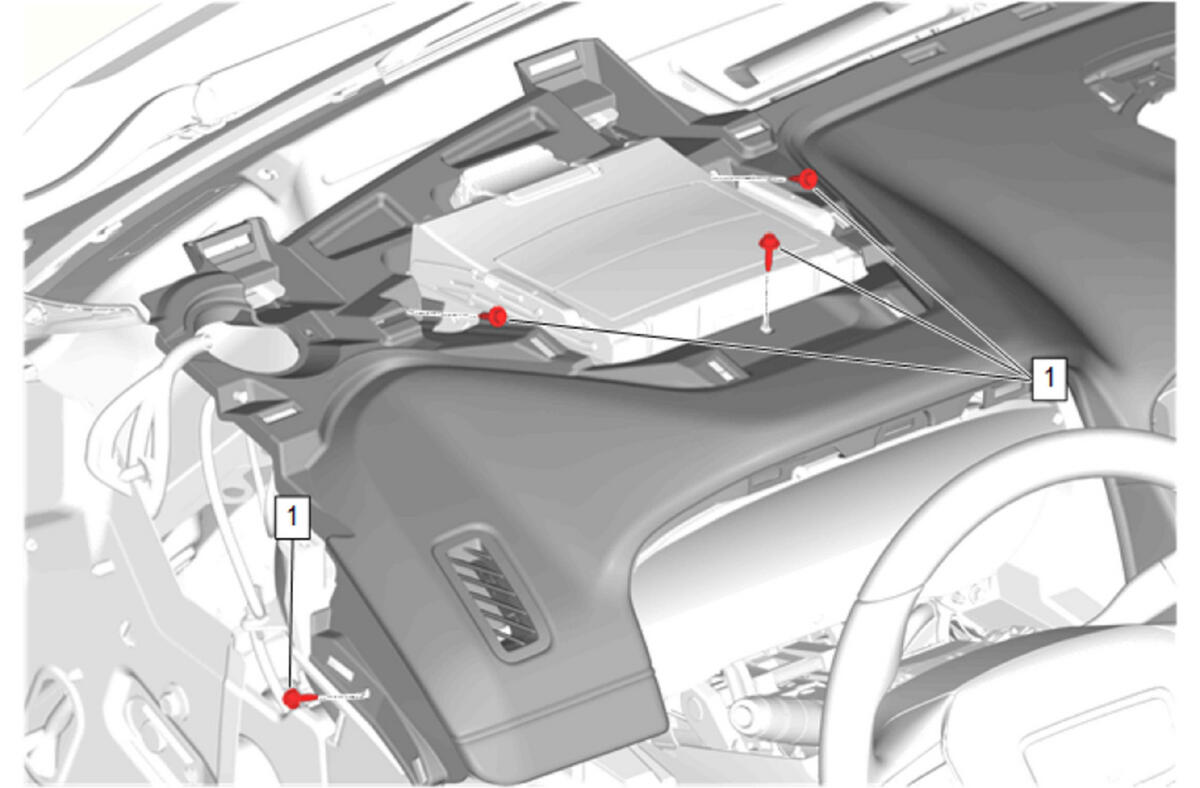

  9. GM5739780Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

  10. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Terrain)

  11. GM4695950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (GMC)

  12. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Terrain)

  13. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)

  14. GM4702538Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Terrain)

  15. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  16. GM5737054Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Shift Control Pushbutton (2) - Install - Electronic Transmission Shift Control Pushbutton Replacement (Terrain)

  17. GM5736995Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Transmission Shift Opening Bezel (1) - Install - Front Floor Console Transmission Shift Opening Bezel Replacement (Terrain)

  18. GM4692425Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel center trim plate applique (1, 2). Instrument Panel Center Trim Plate Applique Replacement (Terrain)

  19. GM4694926Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Terrain)

  20. GM5736513Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement (Terrain without UV7) , or Instrument Panel Extension Replacement (Terrain with UV7)

  21. GM4694190Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Terrain)

  22. GM4748619Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Terrain)

  23. GM4693123Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Terrain)

  24. GM4693192Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install - Radio Front Center Speaker Grille Replacement (Terrain)
