Installation Procedure

  1. GM4588688Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install

  2. Connect the electrical connectors.
  3. GM4581216Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Install - Turn Signal Switch Replacement (Equinox)

  4. GM4601868Courtesy of GENERAL MOTORS COMPANY

    Ignition and Start Switch (2) - Install - Ignition and Start Switch Replacement (Equinox)

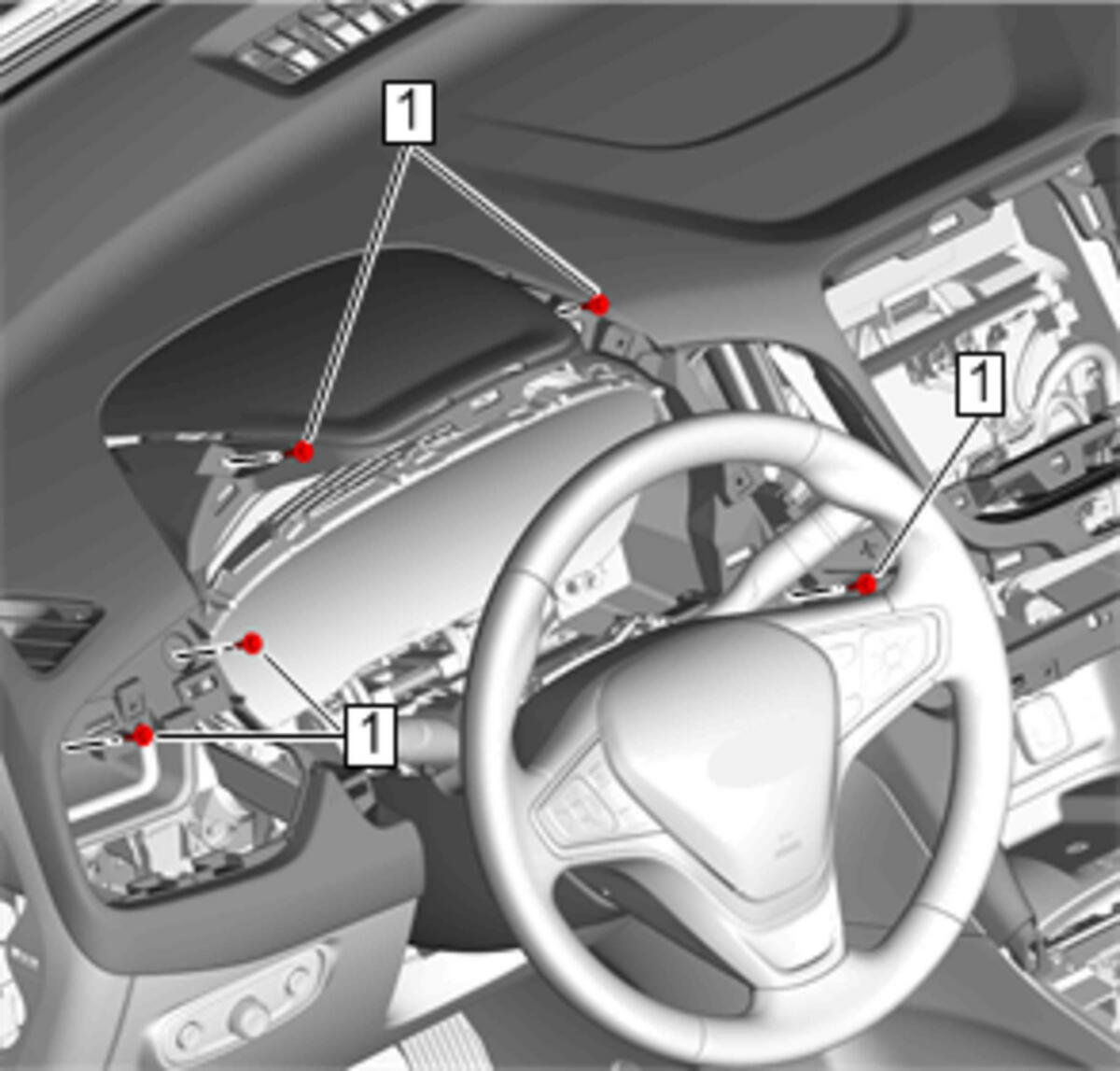

  5. GM4588687Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [5x] 2.5 N.m (22 lb in)

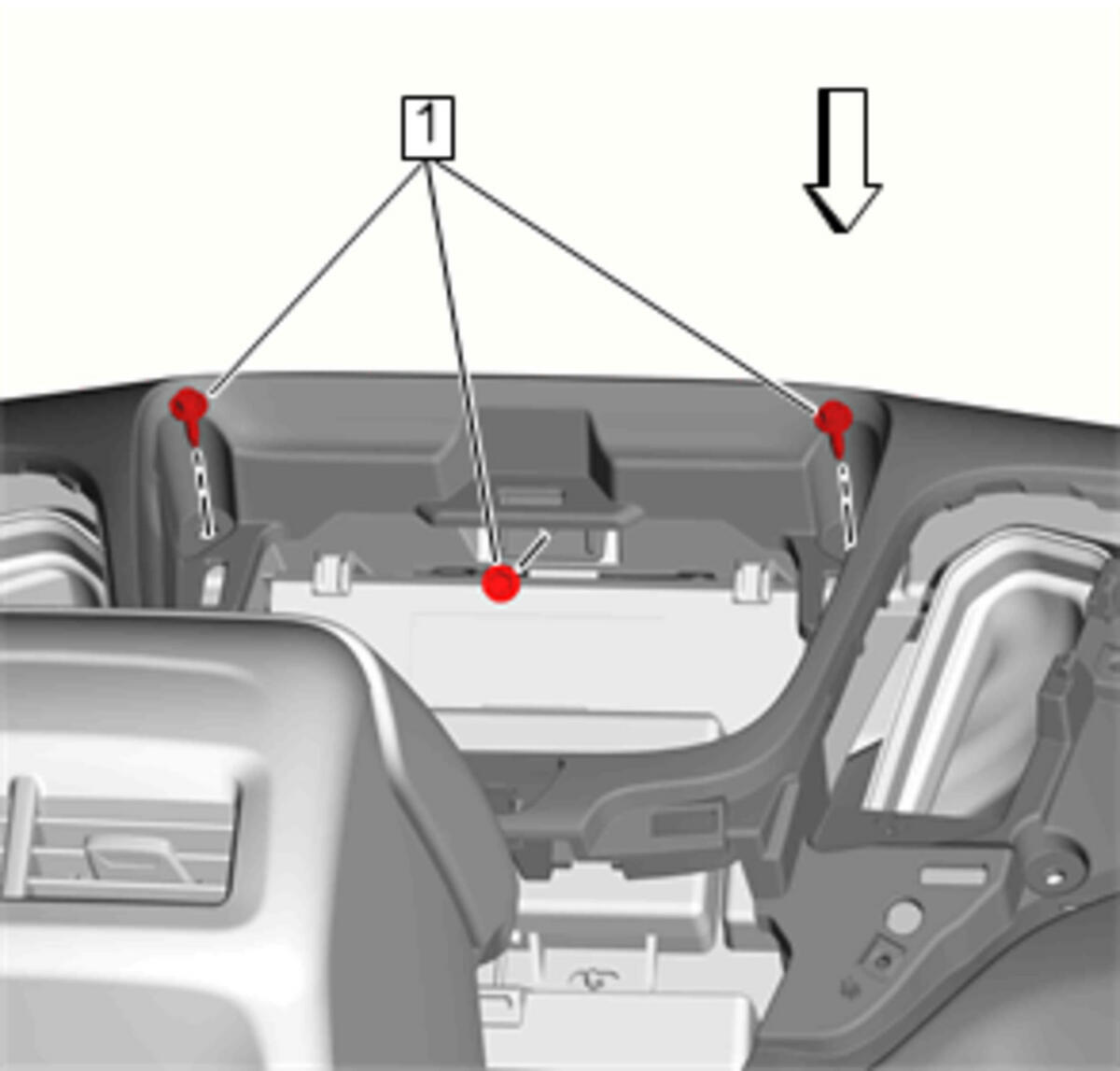

  6. GM4588686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

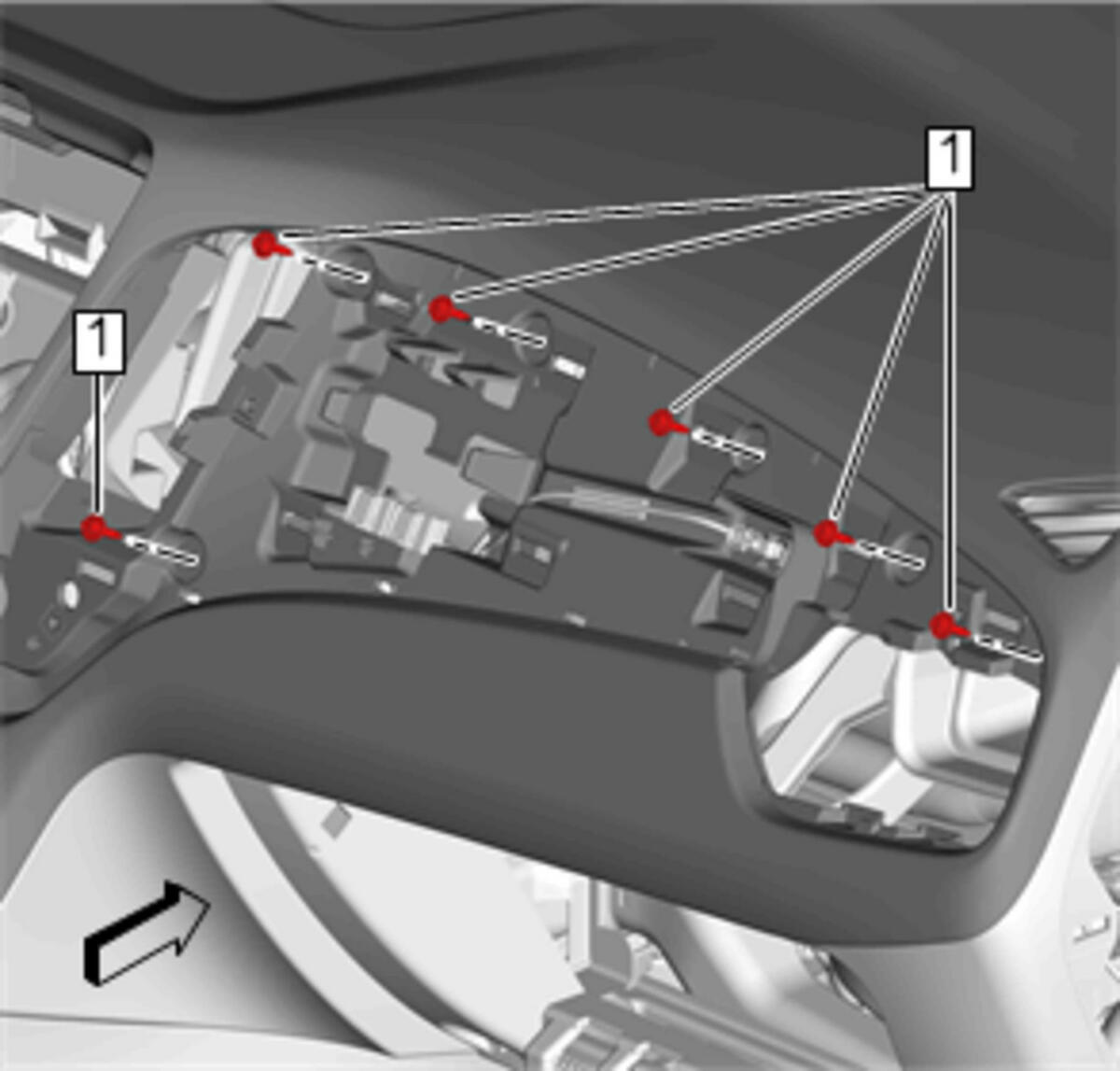

  7. GM4588685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] 2.5 N.m (22 lb in)

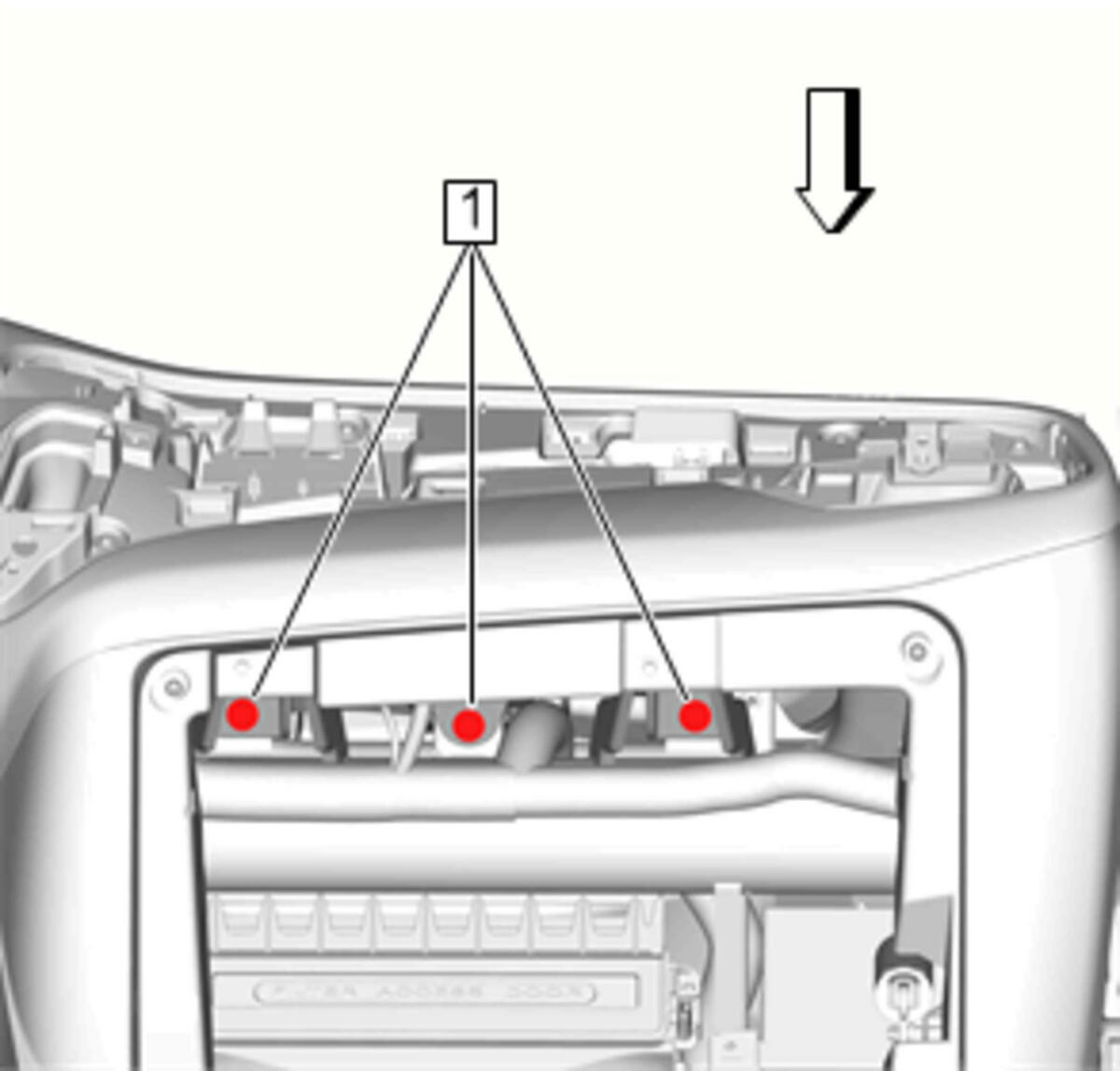

  8. GM4588684Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
  10. GM4584572Courtesy of GENERAL MOTORS COMPANY

    Hazard Warning Switch (1) - Install - Hazard Warning Switch Replacement (Equinox)

  11. GM4570449Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Forward Collision Alert Display (3) - Install - Forward Collision Alert Display Replacement (Equinox)

  12. GM4570349Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Equinox)

  13. GM4566666Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker (2) - Install [2x] - Radio Front Speaker Replacement (Equinox)

  14. GM4583879Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Equinox)

  15. GM4580403Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install - Front Floor Console Applique Replacement (Equinox)

  16. GM4566303Courtesy of GENERAL MOTORS COMPANY

    Radio Control (1) - Install - Radio Control Assembly Replacement (Equinox)

  17. GM4592534Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (Equinox)

  18. GM4564834Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install - Serial Data Gateway Module Replacement (Equinox)

  19. GM4563578Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side (Equinox)

  20. GM4564182Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Right Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Right Side (Equinox)

  21. GM4564180Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Left Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Left Side (Equinox)

  22. GM4563225Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Left Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side (Equinox)

  23. GM4562239Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install [2x] - Instrument Panel Outer Trim Cover Replacement (Equinox)

  24. GM4597051Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install [2x] - Windshield Garnish Molding Replacement (Equinox)

  25. Enable the SIR System. SIR Disabling and Enabling
