Installation Procedure

  1. GM4628176Courtesy of GENERAL MOTORS COMPANY

    Make note of the routing of the instrument panel harness (1) around the bracket that support the passenger airbag. If it is improperly installed the harness will interfere with the installation of the passenger airbag.

  2. GM4628206Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel tie bar (1) into the vehicle.

  3. Install the brake pedal assembly guide pins to the tie bar bracket.
  4. GM4628198Courtesy of GENERAL MOTORS COMPANY

    Seat the instrument panel tie bar on the body hinge pillar tie bar bracket (1) making sure the tab is engaged.

  5. GM4628190Courtesy of GENERAL MOTORS COMPANY

    Seat the instrument panel tie bar on the body hinge pillar tie bar bracket (1) making sure the tab is engaged.

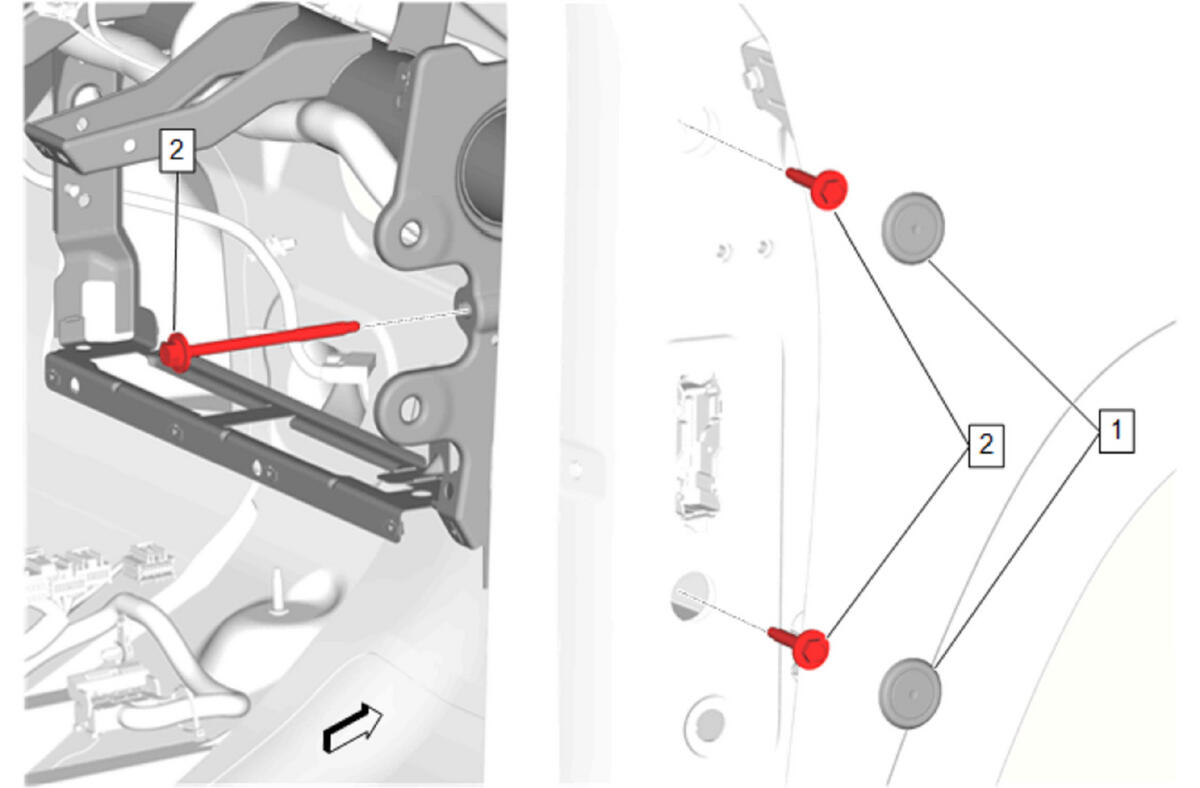

  6. GM5750578Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (2) - Install and tighten [3x] 22 N.m (16 lb ft)

  7. Body Hinge Pillar Outer Panel Hole Plug (1) - Install [2x]

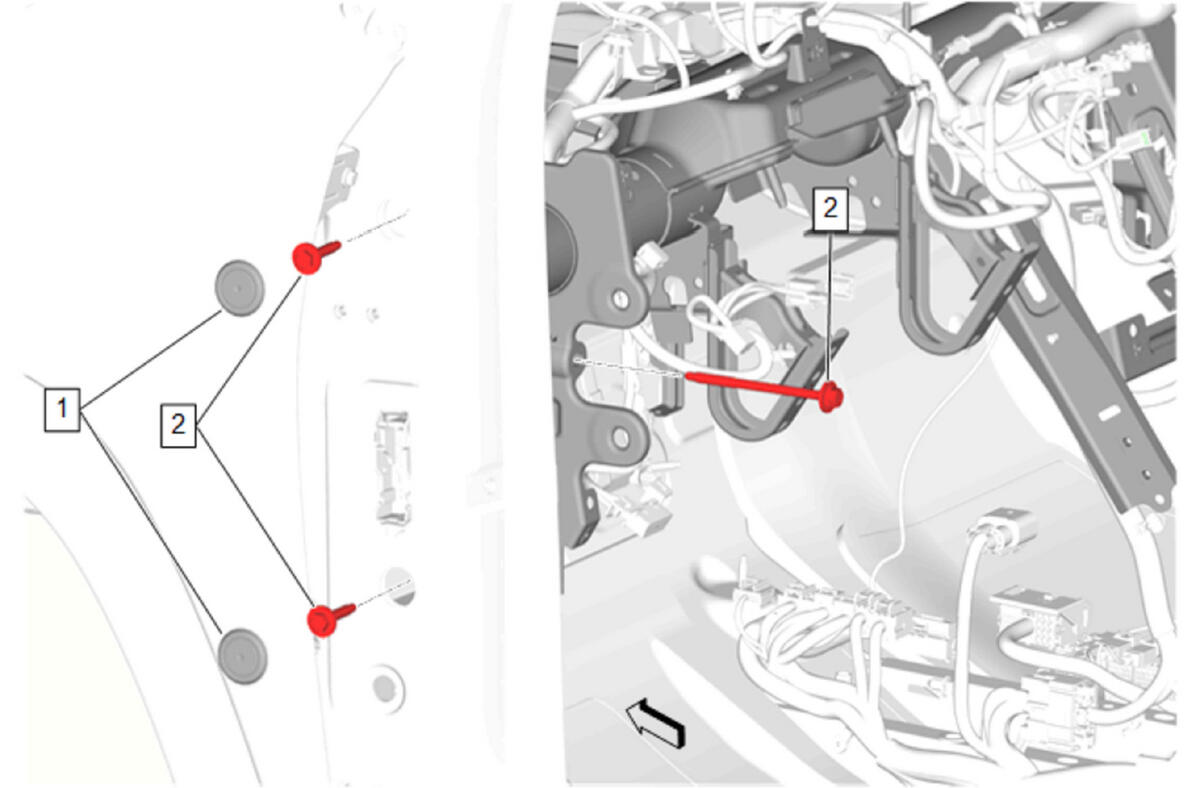

  8. GM5750577Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (2) - Install and tighten [3x] 22 N.m (16 lb ft)

  9. Body Hinge Pillar Outer Panel Hole Plug (1) - Install [2x]
  10. GM4628159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  11. GM3923967Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator and Blower Module Nut (1) @ Cowl Panel - Tighten 9 N.m (80 lb in)

  12. GM4601626Courtesy of GENERAL MOTORS COMPANY

    Seat the HVAC module tabs into the tie bar.

  13. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 5 N.m (44 lb in)
  14. Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten [3x] 9 N.m (80 lb in)
  15. Heater and Air Conditioning Evaporator and Blower Module Nut (3) - Install and tighten [2x] 5 N.m (44 lb in)
  16. GM4601624Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 8 N.m (71 lb in)

  17. GM4601623Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Fuse Block Bracket Bolt (3) - Install and tighten [2x] 2.5 N.m (22 lb in)

  18. Instrument Panel Wiring Harness Junction Block (2) - Install
  19. If equipped, replace the zip tie (1) holding the harness together.
  20. GM4567730Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement

  21. GM3903420Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right windshield wiper arm (3). Windshield Wiper Arm Replacement

  22. GM4654923Courtesy of GENERAL MOTORS COMPANY

    Install the right air inlet grille panel extension (2). Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)

  23. GM4567563Courtesy of GENERAL MOTORS COMPANY

    Install the left air inlet grille panel extension (1). Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)

  24. GM4733769Courtesy of GENERAL MOTORS COMPANY

    Install the right instrument panel center lower bracket (3). Instrument Panel Center Lower Bracket Replacement (Terrain - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Right Side)

  25. GM4733746Courtesy of GENERAL MOTORS COMPANY

    Install the left instrument panel center lower bracket (3). Instrument Panel Center Lower Bracket Replacement (Terrain - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Right Side)

  26. GM4598967Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket (2) - Install - Radio Bracket Replacement (Equinox) , or Radio Bracket Replacement (Terrain)

  27. GM4743979Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right front side door sill (1). Front Side Door Sill Garnish Molding Replacement (Terrain)

  28. GM4601078Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right front side door (4). Front Side Door Replacement

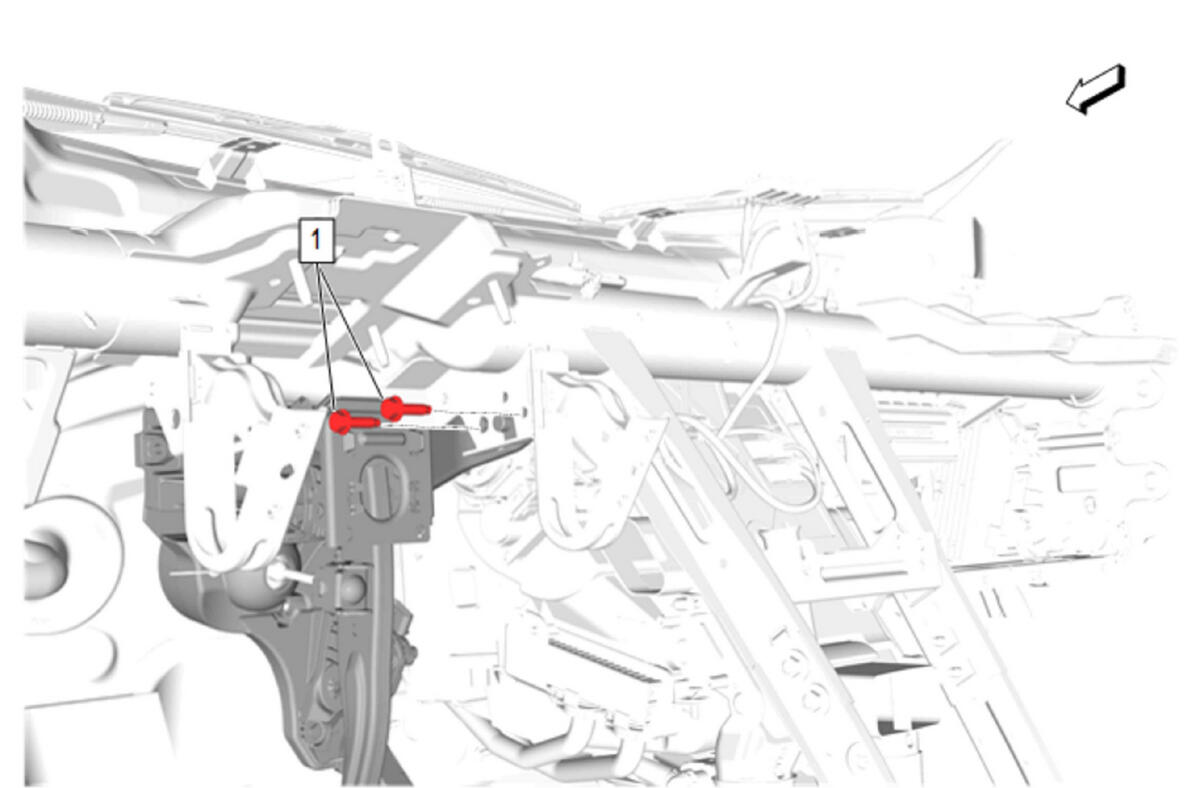

  29. GM5750576Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

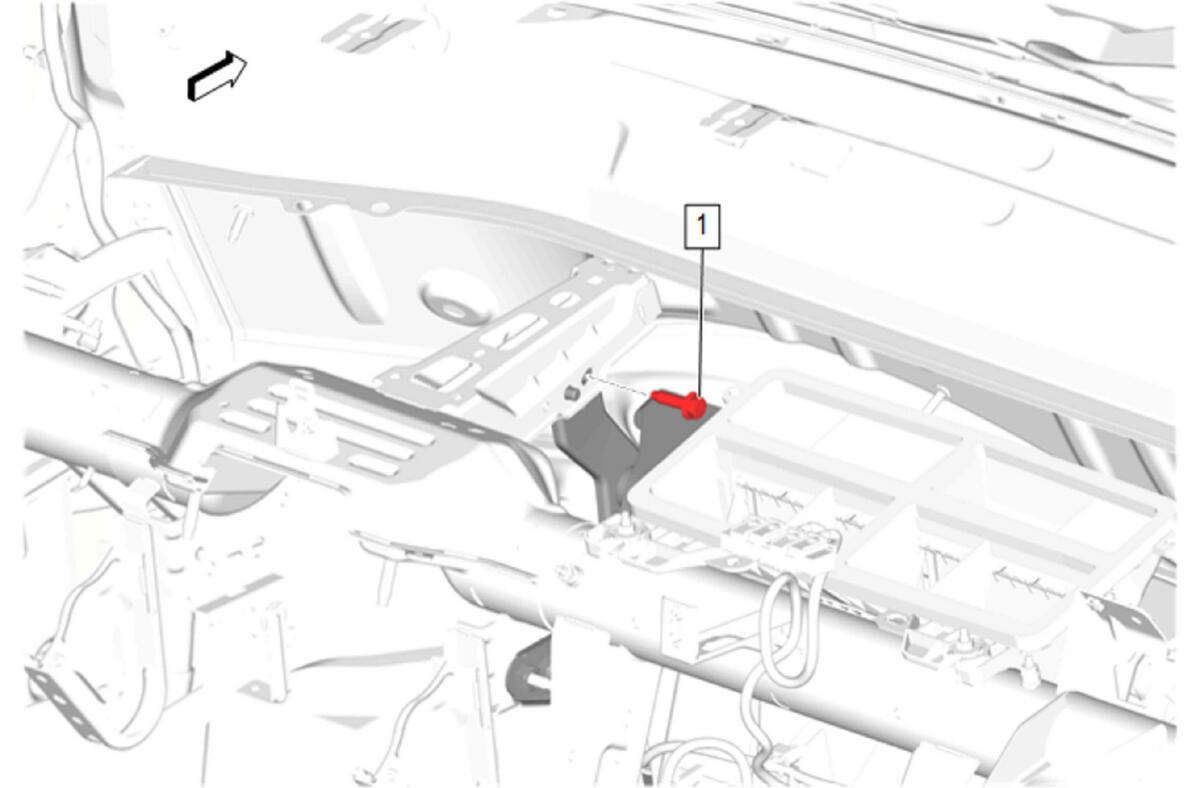

  30. GM5750575Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  31. GM4711299Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Instrument Panel Compartment Air Duct (1) - Install - Instrument Panel Compartment Air Duct Replacement (Terrain)

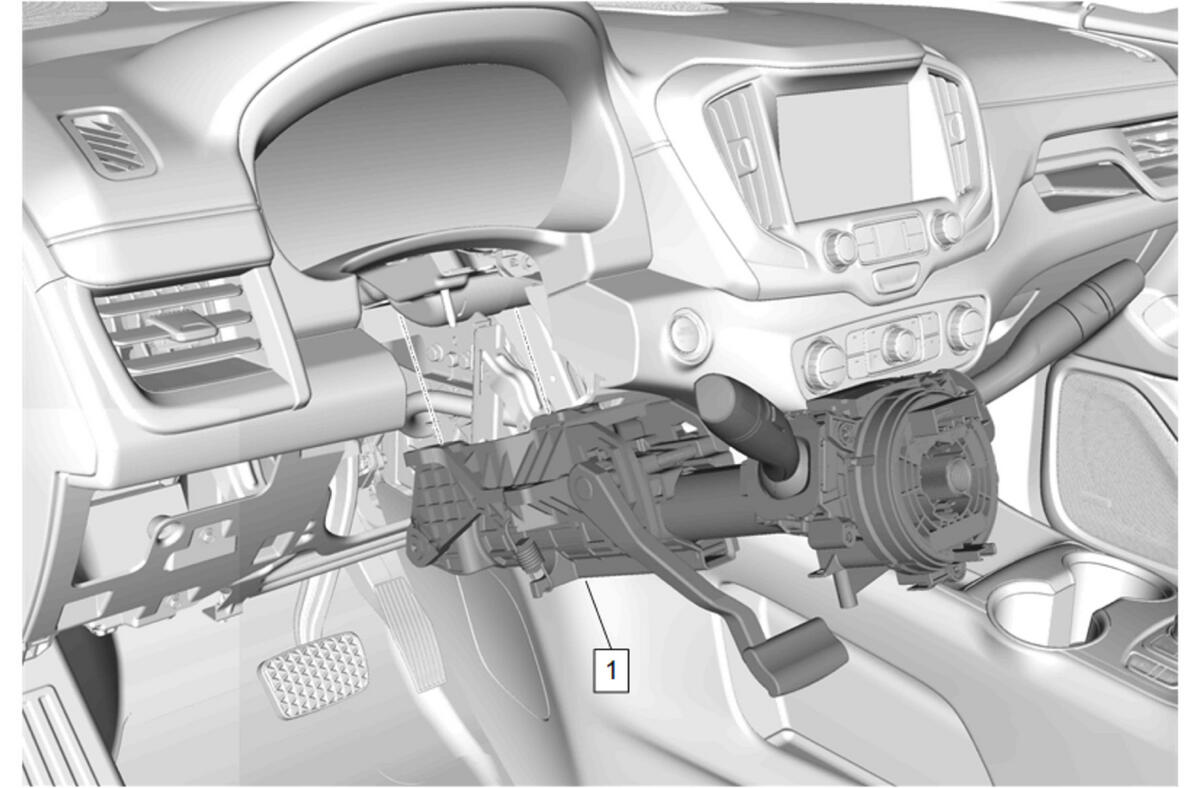

  32. GM5445393Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (Terrain)

  33. GM4728069Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct (1) - Install - Instrument Panel Center Air Outlet Duct Replacement (Terrain)

  34. GM4602046Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement (Terrain)

  35. GM5742876Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bracket (2) - Install - Head-Up Display Bracket Replacement (Terrain)

  36. GM5742875Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display (2) - Install - Head-Up Display Replacement (Terrain)

  37. GM4732078Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install - Instrument Panel Knee Bolster Deflector Replacement (Terrain) , or Instrument Panel Knee Bolster Deflector Replacement (Terrain with UV7) , or Instrument Panel Knee Bolster Deflector Replacement (Terrain without UV7)

  38. GM4730492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install - Instrument Panel Assembly Replacement (Terrain without UV7) , or Instrument Panel Assembly Replacement (Terrain with UV7)

  39. GM4726911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Terrain)

  40. GM4726924Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Terrain)

  41. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement

  42. GM4703357Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install - Communication Interface Module Replacement (Terrain with IOS, IOT, IOU) , or Communication Interface Module Replacement (Terrain with IOR)

  43. GM4709960Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Terrain)

  44. GM4710565Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Terrain)

  45. GM4706052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Terrain)

  46. GM4565913Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Handle Replacement

  47. GM4717098Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Terrain without UV7) , or Instrument Panel Upper Trim Panel Replacement (Terrain with UV7)

  48. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Terrain)

  49. GM4695950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (GMC)

  50. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Terrain)

  51. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)

  52. GM5744844Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (2) - Install - Serial Data Gateway Module Replacement (Terrain)

  53. GM4702538Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Terrain)

  54. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  55. GM4692425Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel center trim plate applique (1, 2). Instrument Panel Center Trim Plate Applique Replacement (Terrain)

  56. GM4694926Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Terrain)

  57. GM5736513Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement (Terrain without UV7) , or Instrument Panel Extension Replacement (Terrain with UV7)

  58. GM4693123Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Terrain)

  59. GM4693192Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install - Radio Front Center Speaker Grille Replacement (Terrain)

  60. GM4694190Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Terrain)

  61. GM4748619Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Terrain)

  62. GM5744820Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Wireless Communication Interface Antenna (1) - Install - Auxiliary Wireless Communication Interface Antenna Replacement (Terrain)

  63. GM4741732Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement (Terrain) , or Front Floor Console Replacement (Terrain 2022)
