Installation Procedure

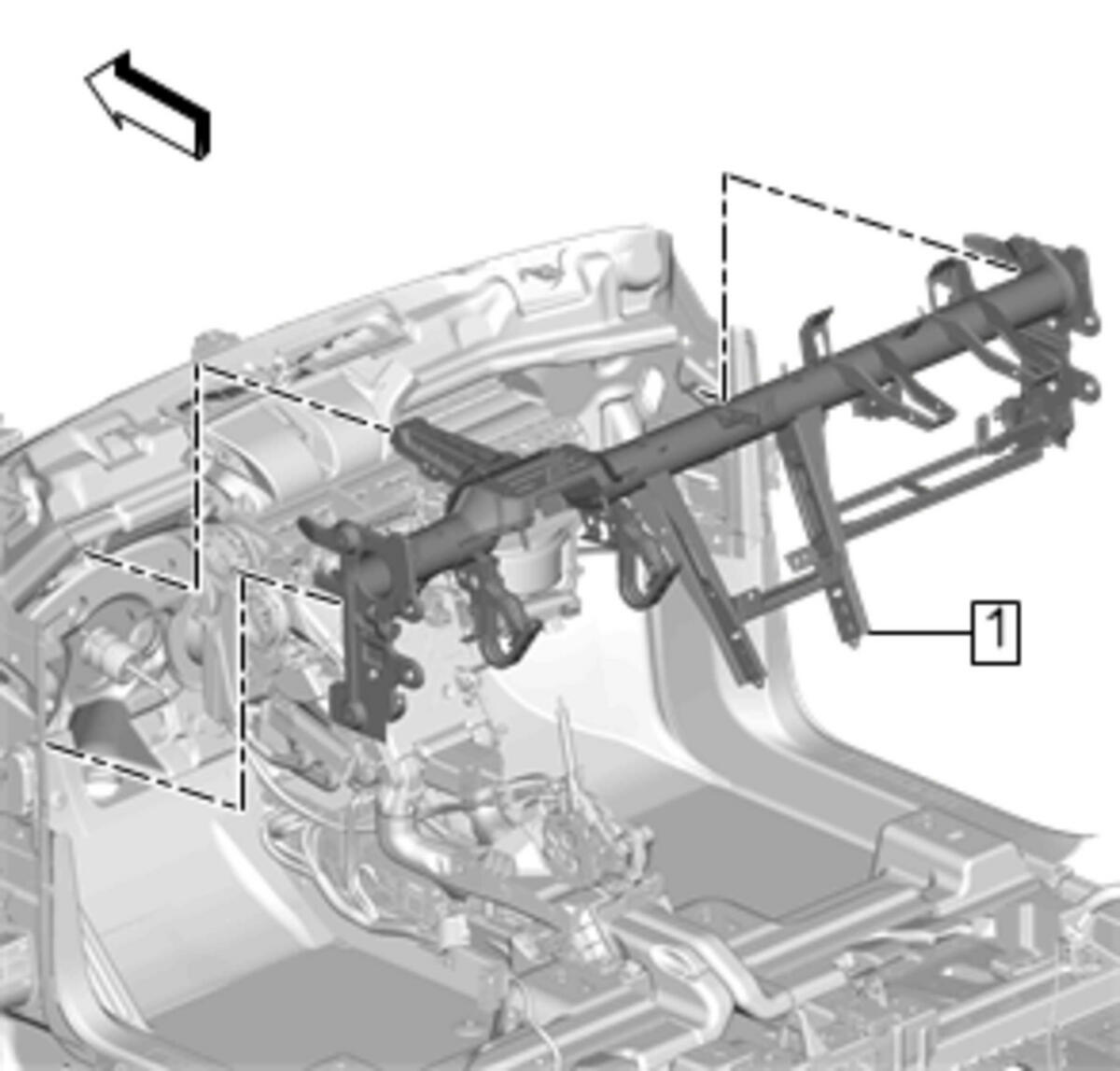

With the aid of an assistant, position the instrument panel tie bar (1) into the vehicle.

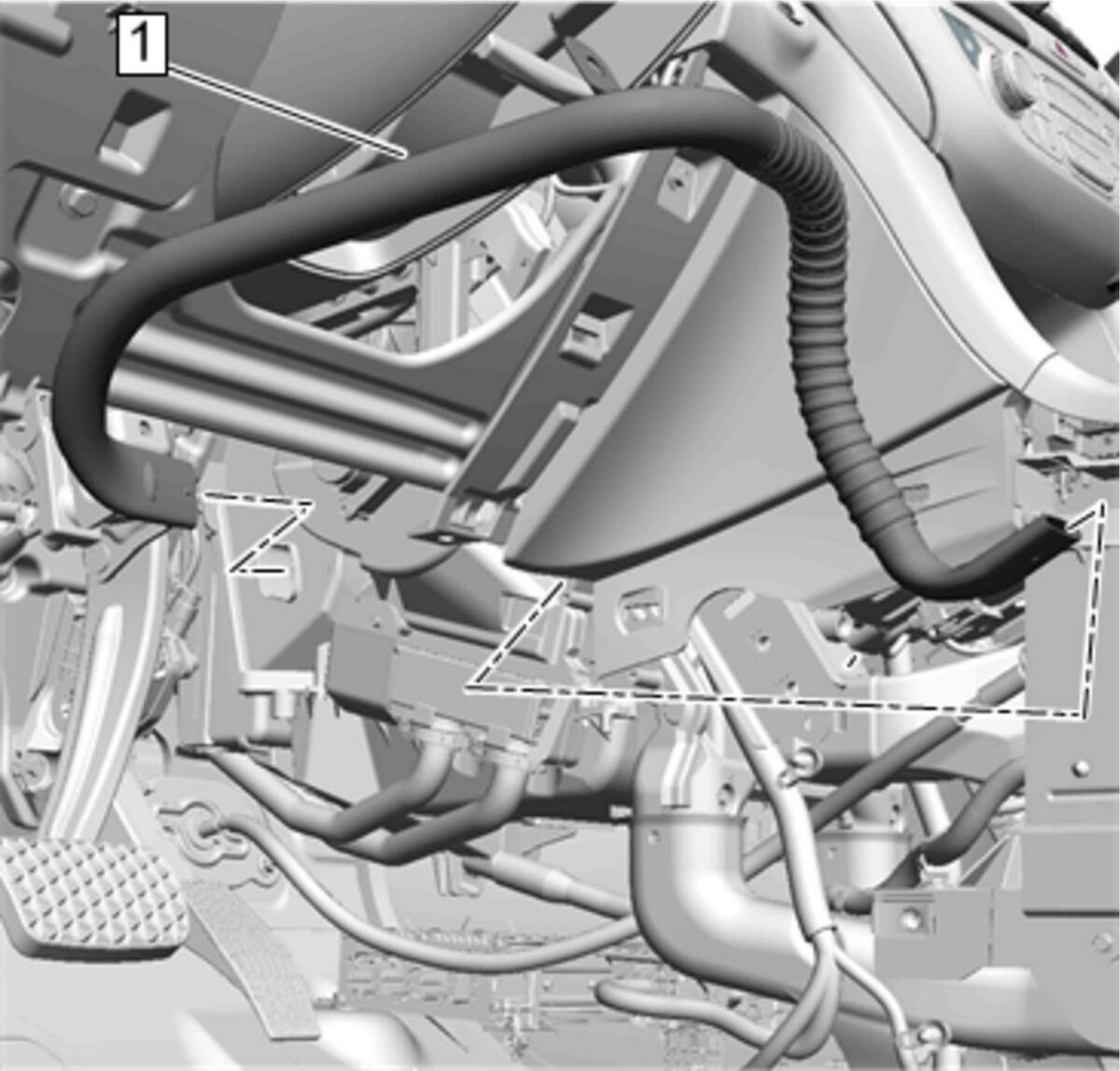

- Install the instrument panel wiring harness to the position noted in the removal procedure.
- CAUTION:
Refer to Fastener Caution .
Instrument Panel Tie Bar Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)
Instrument Panel Tie Bar Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

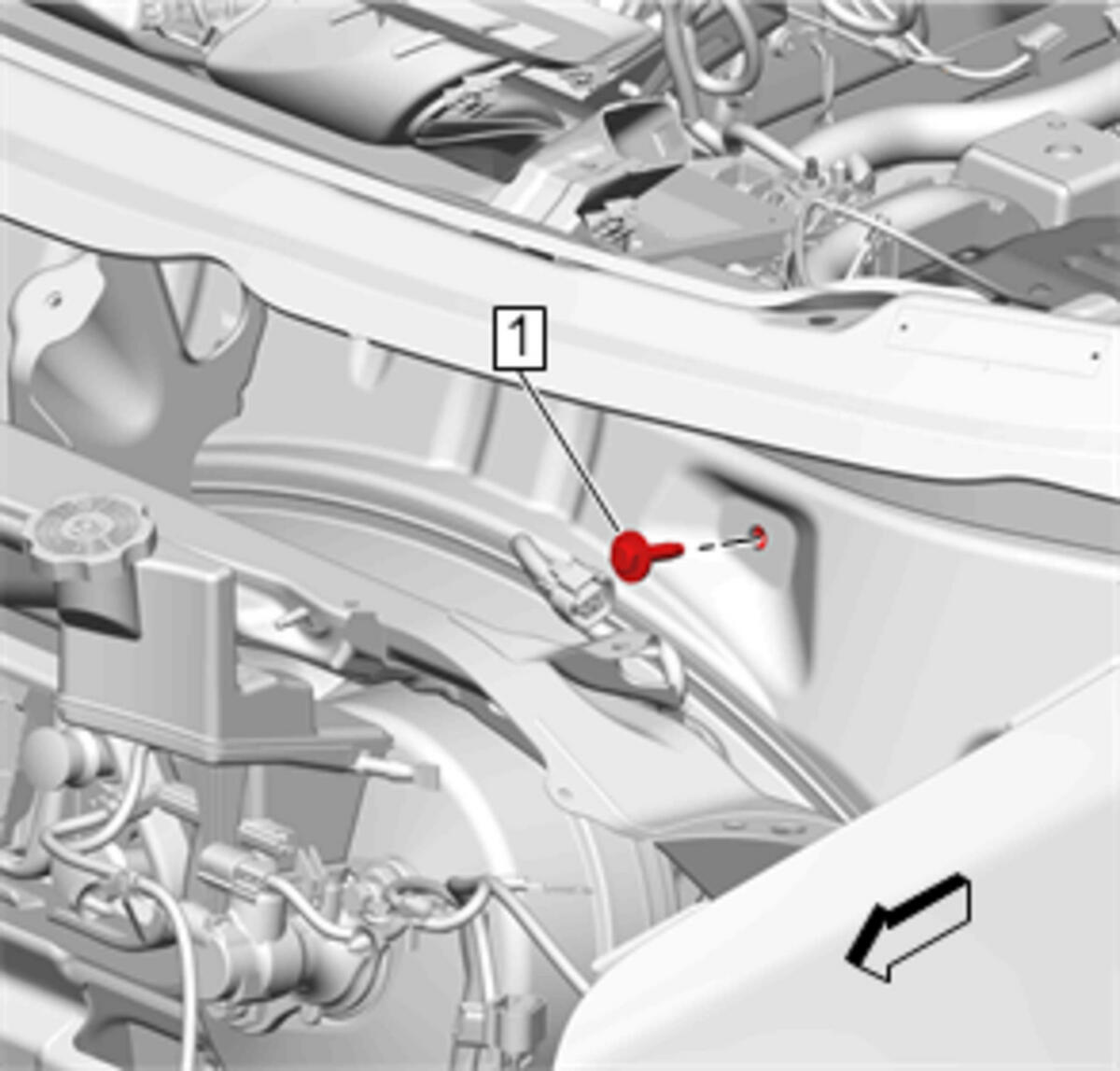

Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 5 N.m (44 lb in)
- Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten [3x] 9 N.m (80 lb in)
- Heater and Air Conditioning Evaporator and Blower Module Nut (3) - Install and tighten [2x] 5 N.m (44 lb in)
Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 8 N.m (71 lb in)
Instrument Panel Wiring Harness Fuse Block Bracket Bolt (3) - Install and tighten [2x] 2.5 N.m (22 lb in)
- Instrument Panel Wiring Harness Junction Block (2) - Install
- If equipped, replace the zip tie (1) holding the harness together.

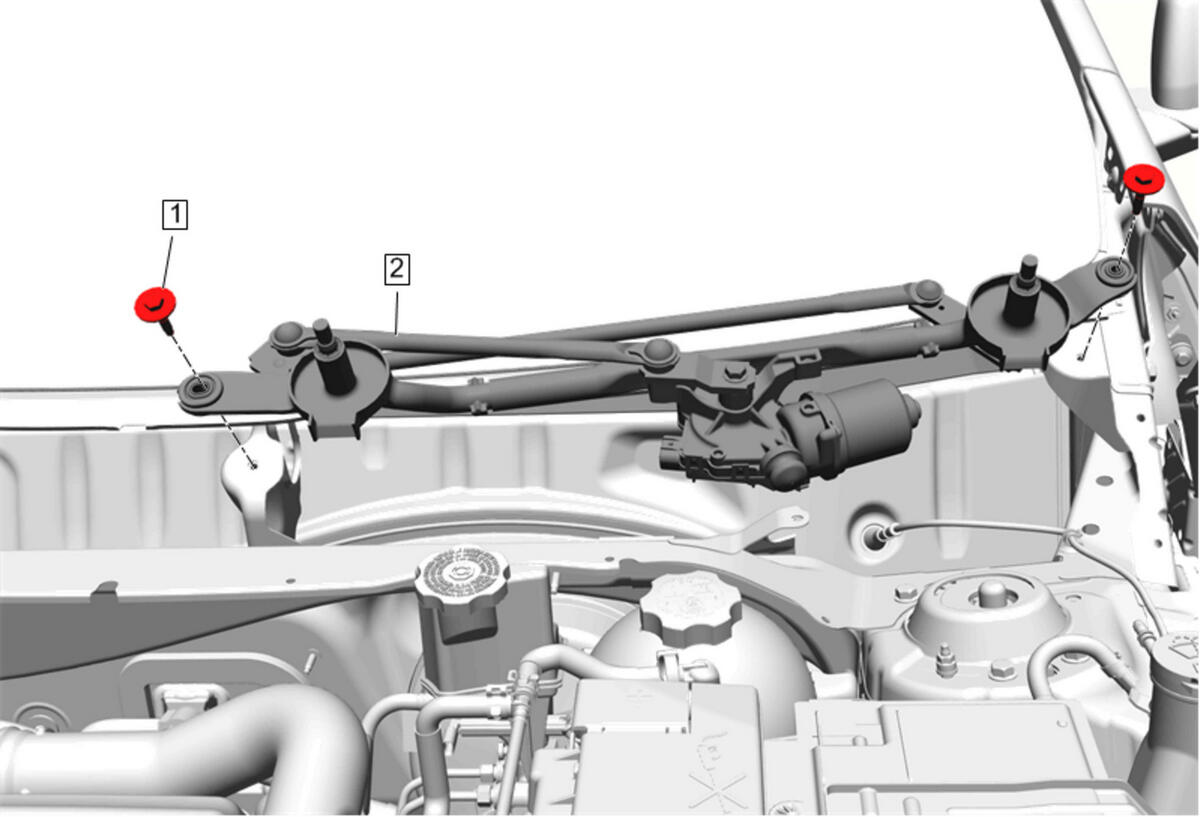

Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement
Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement
Install the left and right windshield wiper arm (3). Windshield Wiper Arm Replacement
Install the left and right air inlet grille panel extension (1). Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)
Install the right instrument panel center lower bracket (4). Instrument Panel Center Lower Bracket Replacement (Equinox - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Equinox - Right Side)
Install the left instrument panel center lower bracket (3). Instrument Panel Center Lower Bracket Replacement (Equinox - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Equinox - Right Side)
Radio Bracket (2) - Install - Radio Bracket Replacement (Equinox)
Human Machine Interface Control Module (1) - Install - Human-Machine Interface Control Module Replacement
Radio (1) - Install - Radio Replacement (IO5, IO6, IOB, IOR) , or Radio Replacement (IOS, IOT, IOU)
Human Machine Interface Control Module Bypass Module (1) - Install - Human-Machine Interface Control Module Bypass Module Replacement
Install the left and right front side door (4). Front Side Door Replacement
Brake Pedal Assembly (1) - Install - Brake Pedal Assembly Replacement

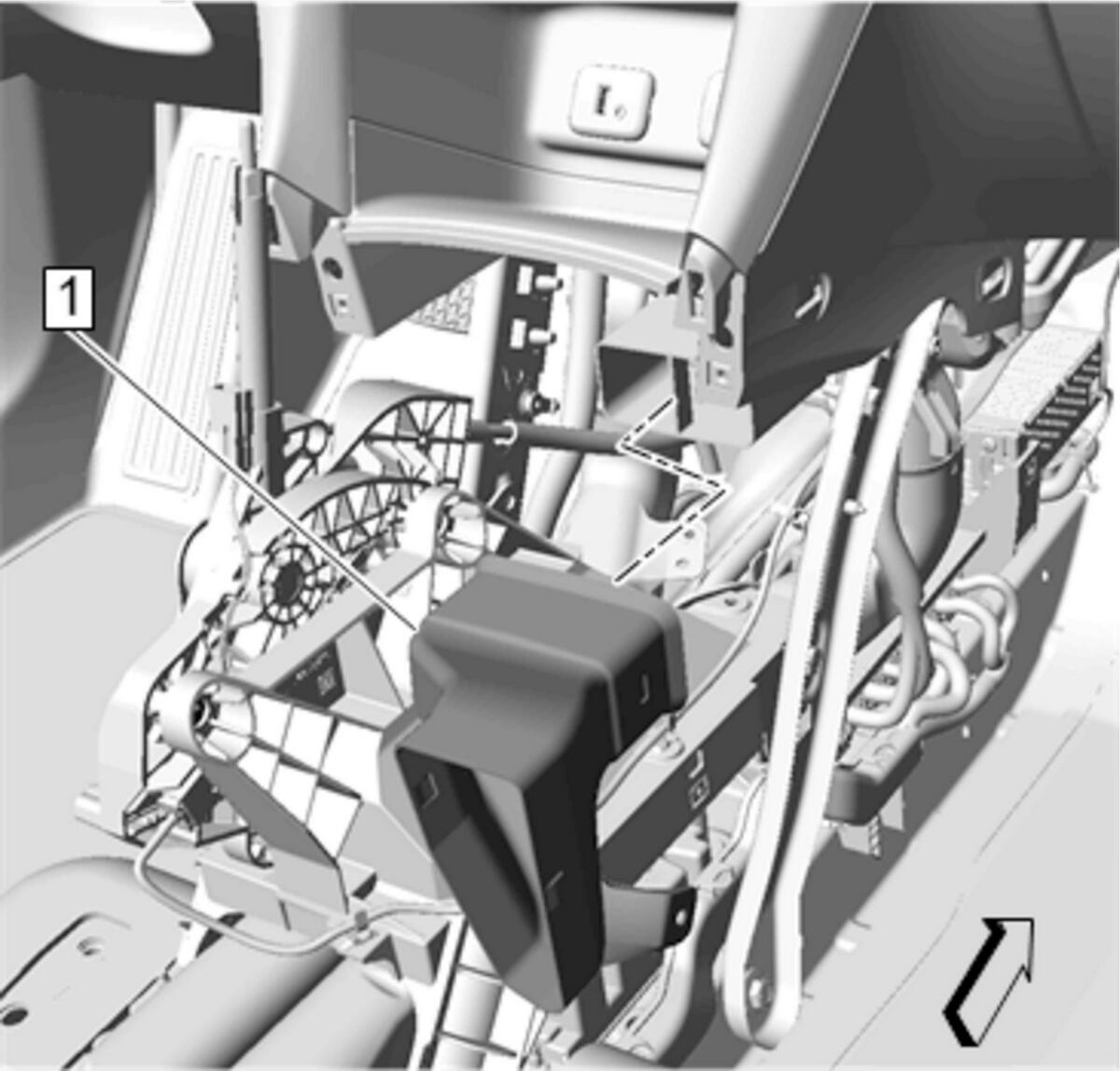

Front Floor Console Rear Air Duct (1) - Install - Front Floor Console Rear Air Duct Replacement (Equinox Front)

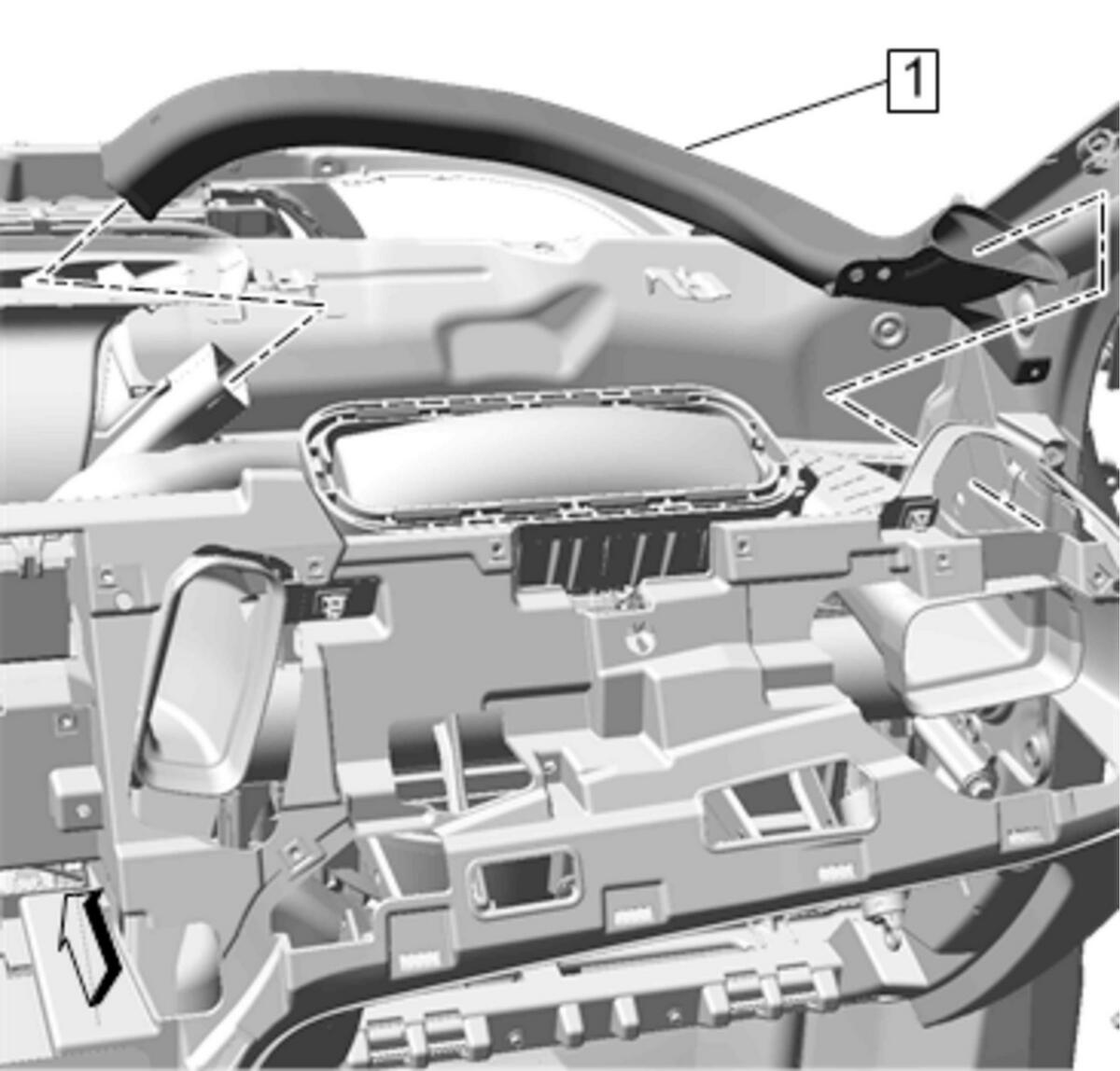

Instrument Panel Compartment Air Duct (1) - Install - Instrument Panel Compartment Air Duct Replacement (Equinox)

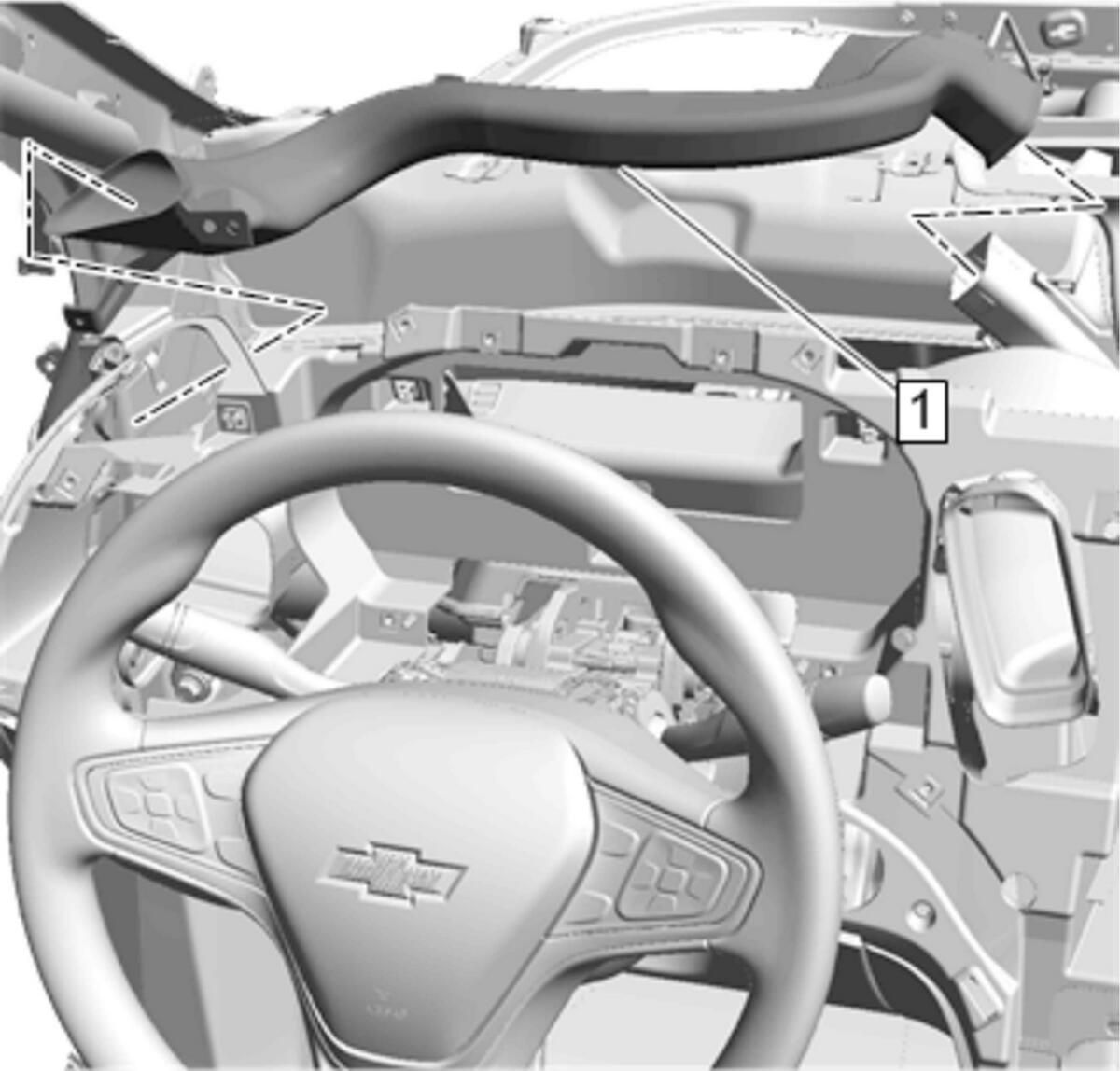

Instrument Panel Center Air Outlet Duct (1) - Install - Instrument Panel Center Air Outlet Duct Replacement (Equinox)
Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Equinox)
Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Equinox)
Steering Column (1) - Install - Steering Column Replacement (Equinox)
Instrument Panel Knee Bolster Deflector (1) - Install - Instrument Panel Knee Bolster Deflector Replacement (Equinox)

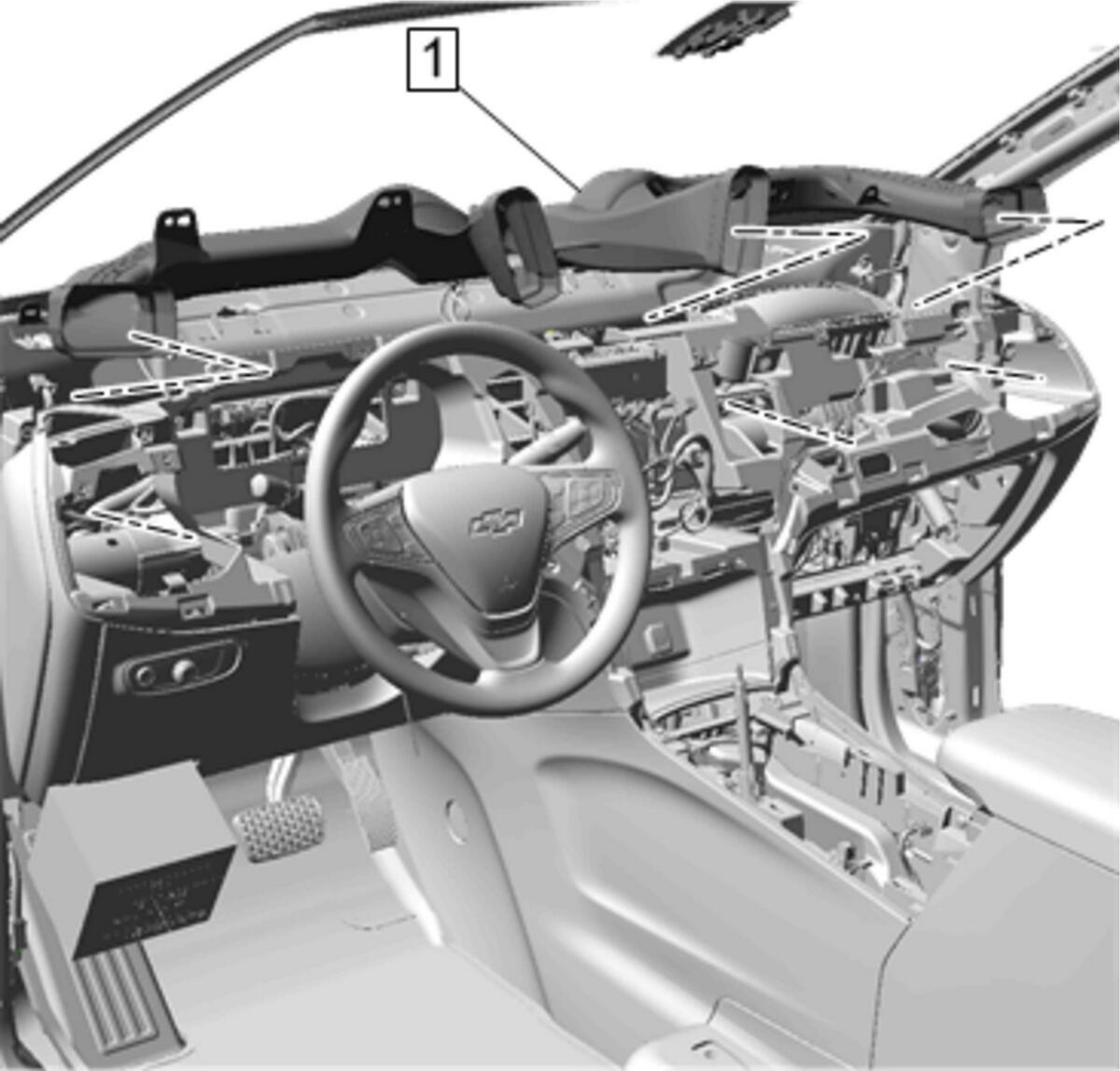

Instrument Panel (1) - Install - Instrument Panel Assembly Replacement (Equinox)
Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement
Communication Interface Module (1) - Install - Communication Interface Module Replacement (Equinox)
Communication Interface Module Battery (2) - Install - Communication Interface Module Battery Replacement
Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Equinox)
Instrument Cluster (2) - Install - Instrument Cluster Replacement (Equinox)
Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Equinox)
Instrument Panel Stowage Tray (2) - Install - Instrument Panel Stowage Tray Replacement (Equinox)
Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Equinox)
Front Floor Console (1) - Install - Front Floor Console Replacement (Equinox)
Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Equinox)
Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Equinox)
Hazard Warning Switch (1) - Install - Hazard Warning Switch Replacement (Equinox)
Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Equinox)
Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Equinox)
Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Equinox)
Front Floor Console Applique (1) - Install - Front Floor Console Applique Replacement (Equinox)
Radio Control (1) - Install - Radio Control Assembly Replacement (Equinox)
Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (Equinox)
Serial Data Gateway Module (1) - Install - Serial Data Gateway Module Replacement (Equinox)
Instrument Panel Outer Air Outlet - Right Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side (Equinox)
Instrument Panel Center Air Outlet - Right Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Right Side (Equinox)
Instrument Panel Center Air Outlet - Left Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Left Side (Equinox)
Instrument Panel Outer Air Outlet - Left Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side (Equinox)
Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Equinox)
Install the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Equinox)
