Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Radio Front Trim Plate (2) - Install

CAUTION:

Instrument Panel Upper Compartment Bolt (1) - Install and tighten [4x] 1 N.m (9 lb in)
Courtesy of GENERAL MOTORS COMPANY

Radio Control Bracket (2) - Install
Radio Control Bracket Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Radio Control Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radio Control Bracket Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement (Equinox) , or Heater and Air Conditioning User Interface Control Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement - Right Side (Equinox)
Courtesy of GENERAL MOTORS COMPANY

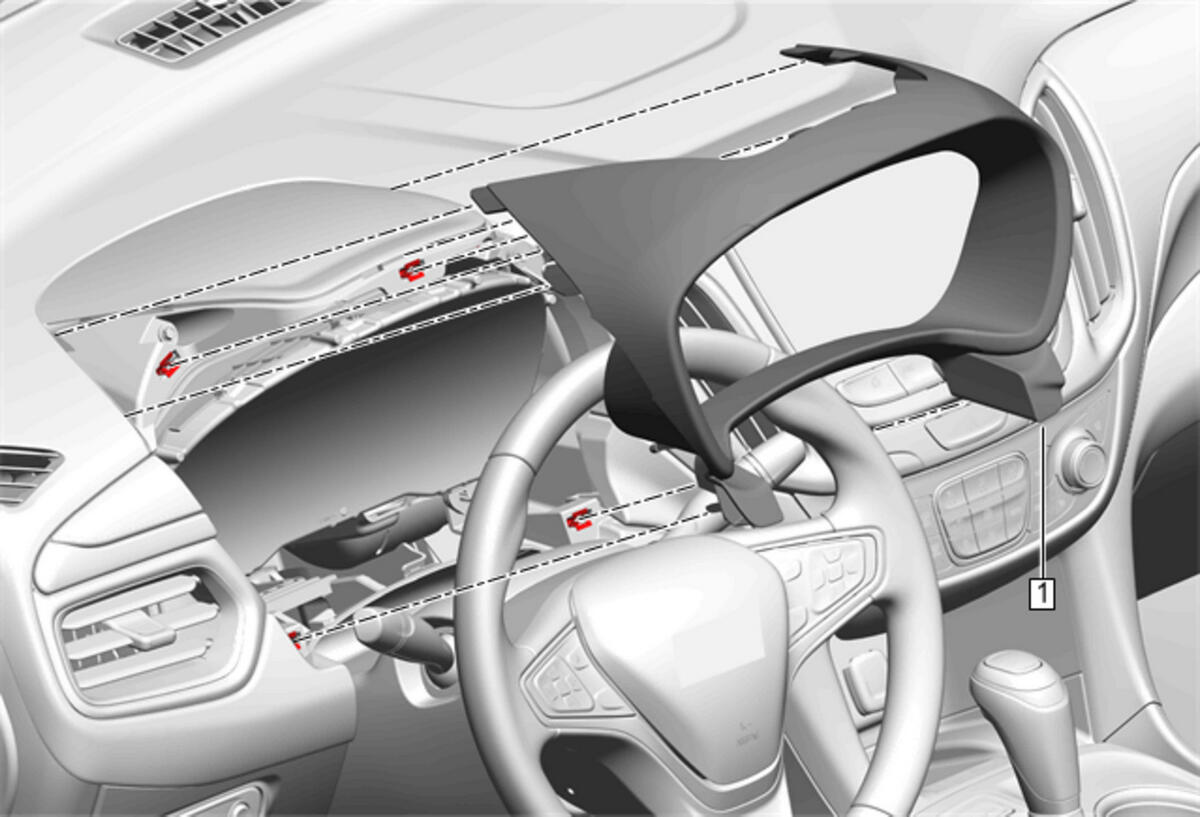

Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Equinox)
