Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

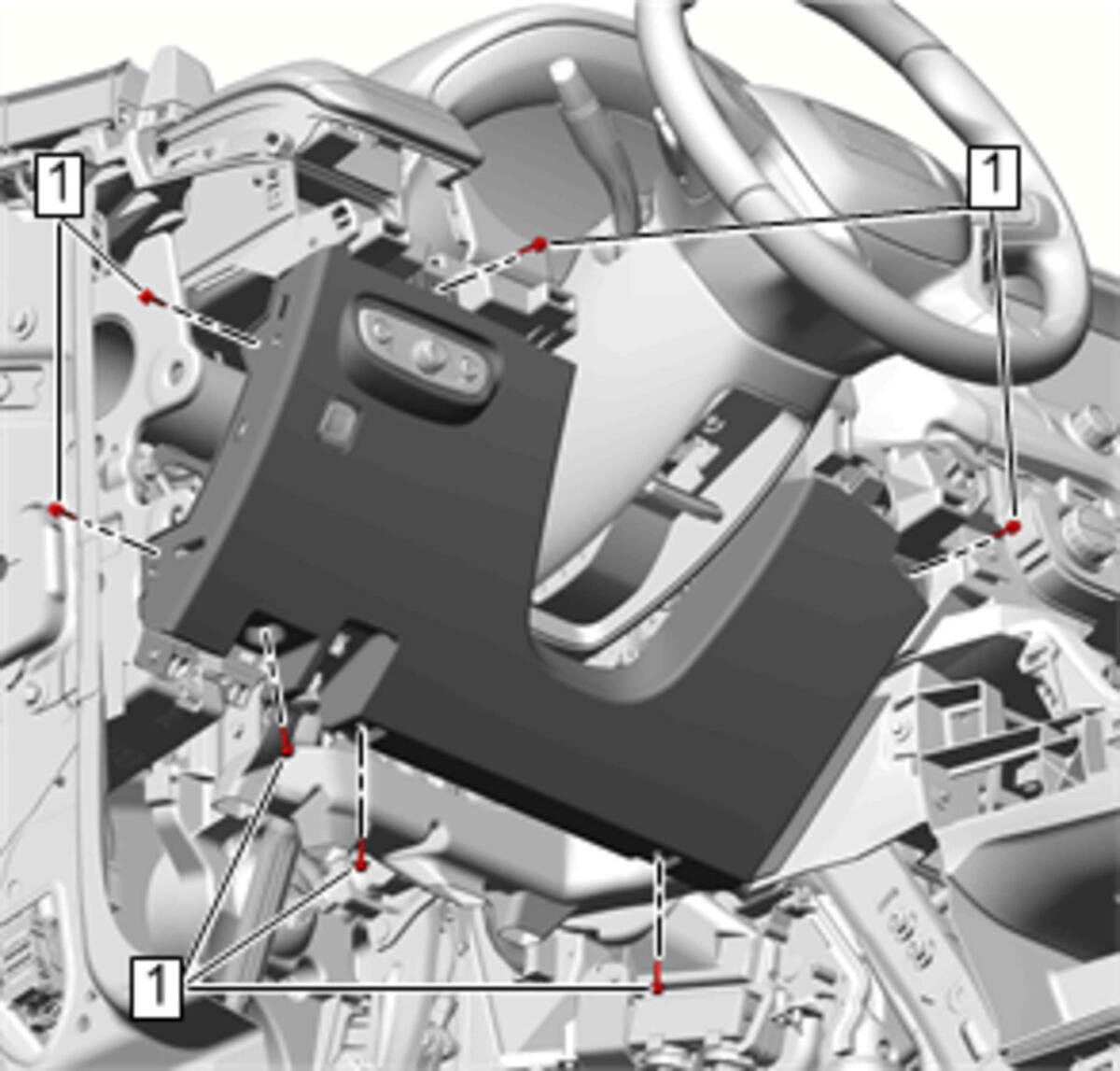

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [7x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Terrain)
