Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

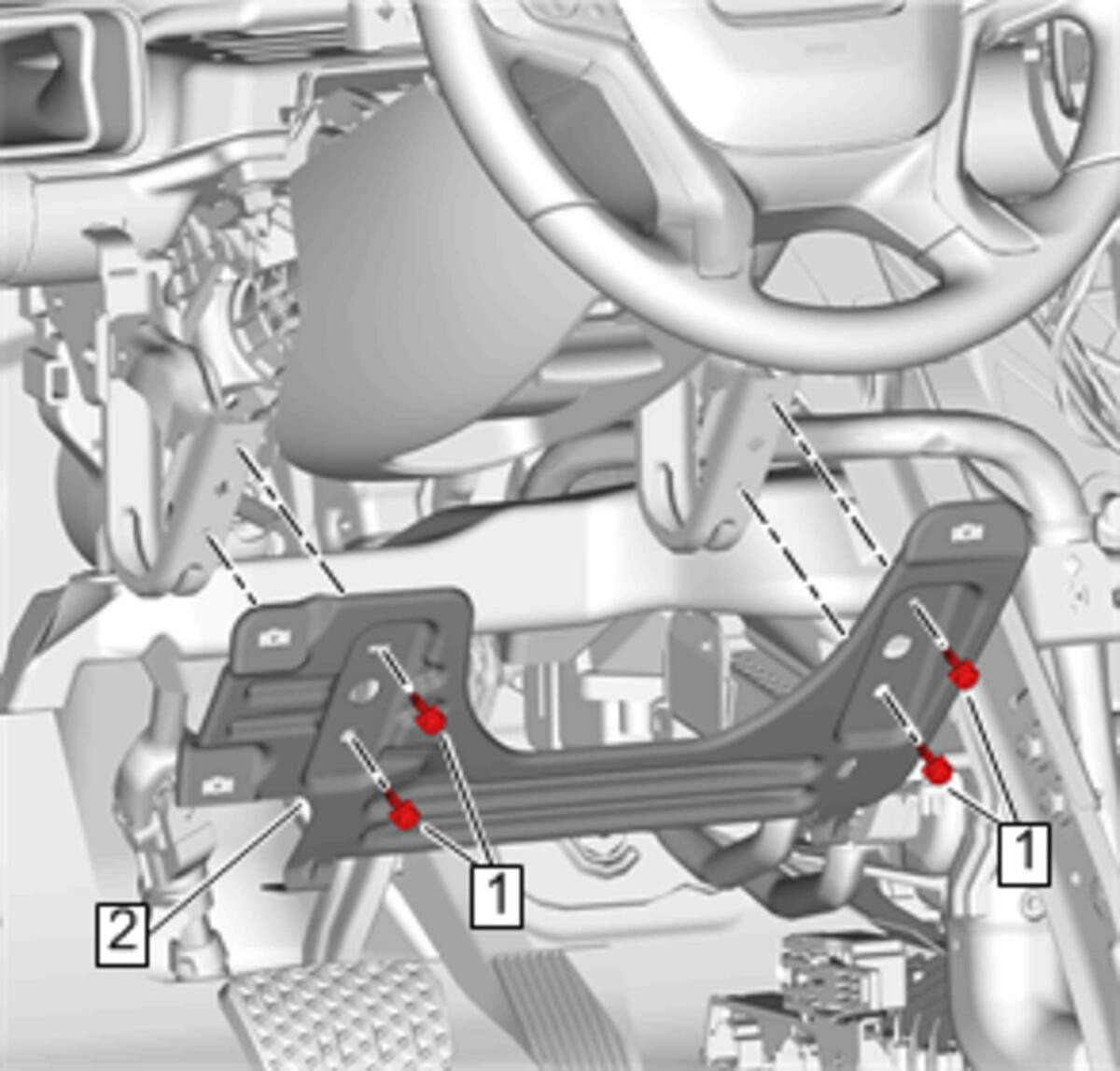

Instrument Panel Knee Bolster Deflector (2) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Knee Bolster Bracket Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel (1) - Install - Instrument Panel Assembly Replacement (Terrain without UV7) , or Instrument Panel Assembly Replacement (Terrain with UV7)
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement
Courtesy of GENERAL MOTORS COMPANY

Communication Interface Module (1) - Install - Communication Interface Module Replacement (Terrain with IOS, IOT, IOU) , or Communication Interface Module Replacement (Terrain with IOR)
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Cluster (2) - Install - Instrument Cluster Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Serial Data Gateway Module (1) - Install - Serial Data Gateway Module Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Terrain without UV7) , or Instrument Panel Upper Trim Panel Replacement (Terrain with UV7)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (GMC)
Courtesy of GENERAL MOTORS COMPANY

Forward Collision Alert Display (2) - Install - Forward Collision Alert Display Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Terrain)
Install the left and right windshield garnish molding. Windshield Garnish Molding Replacement (Terrain)
Front Floor Console - Install - Front Floor Console Replacement (Terrain) , or Front Floor Console Replacement (Terrain 2022)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Terrain)
