Installation Procedure

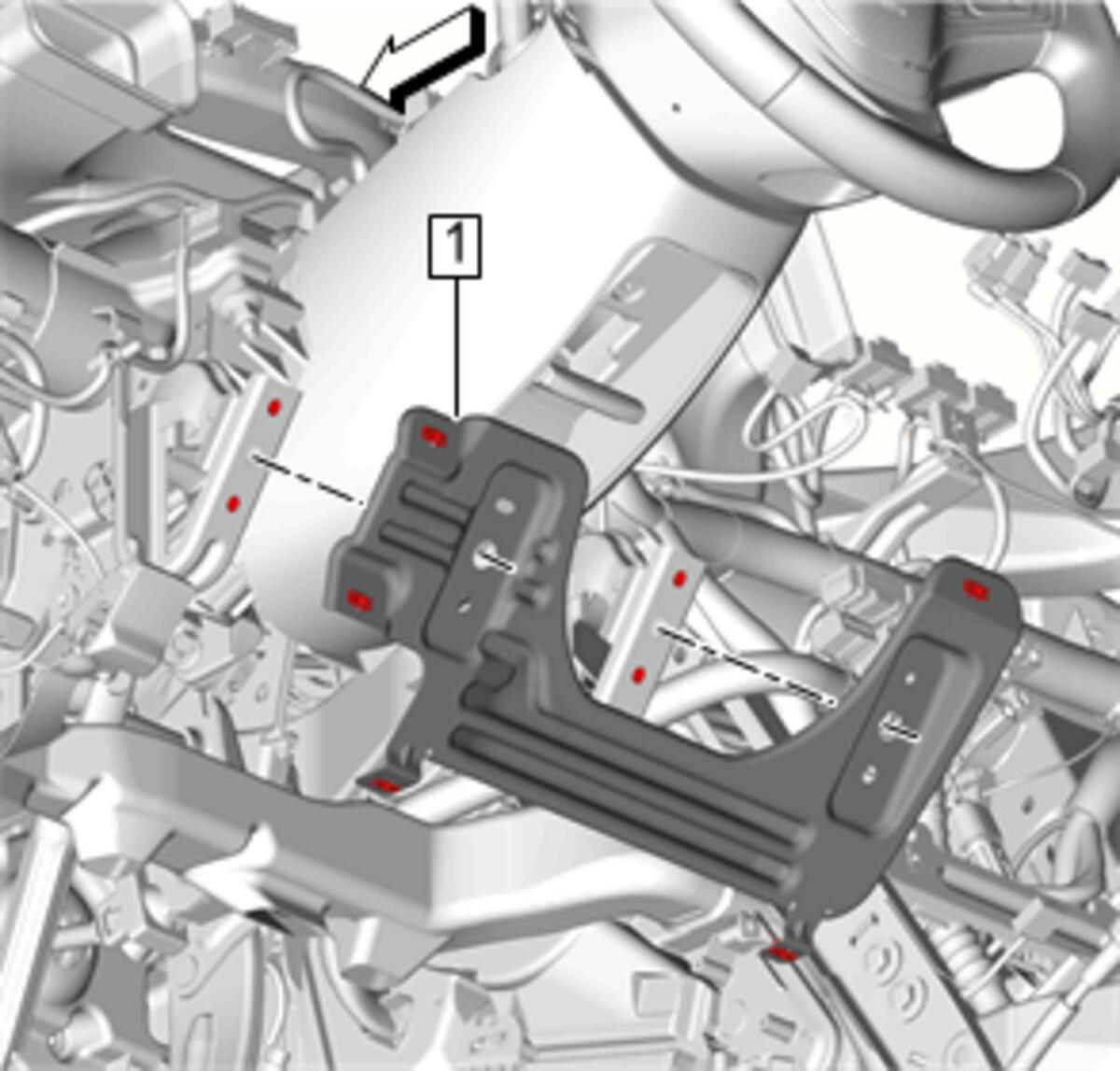

  1. GM4600303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (1) - Install

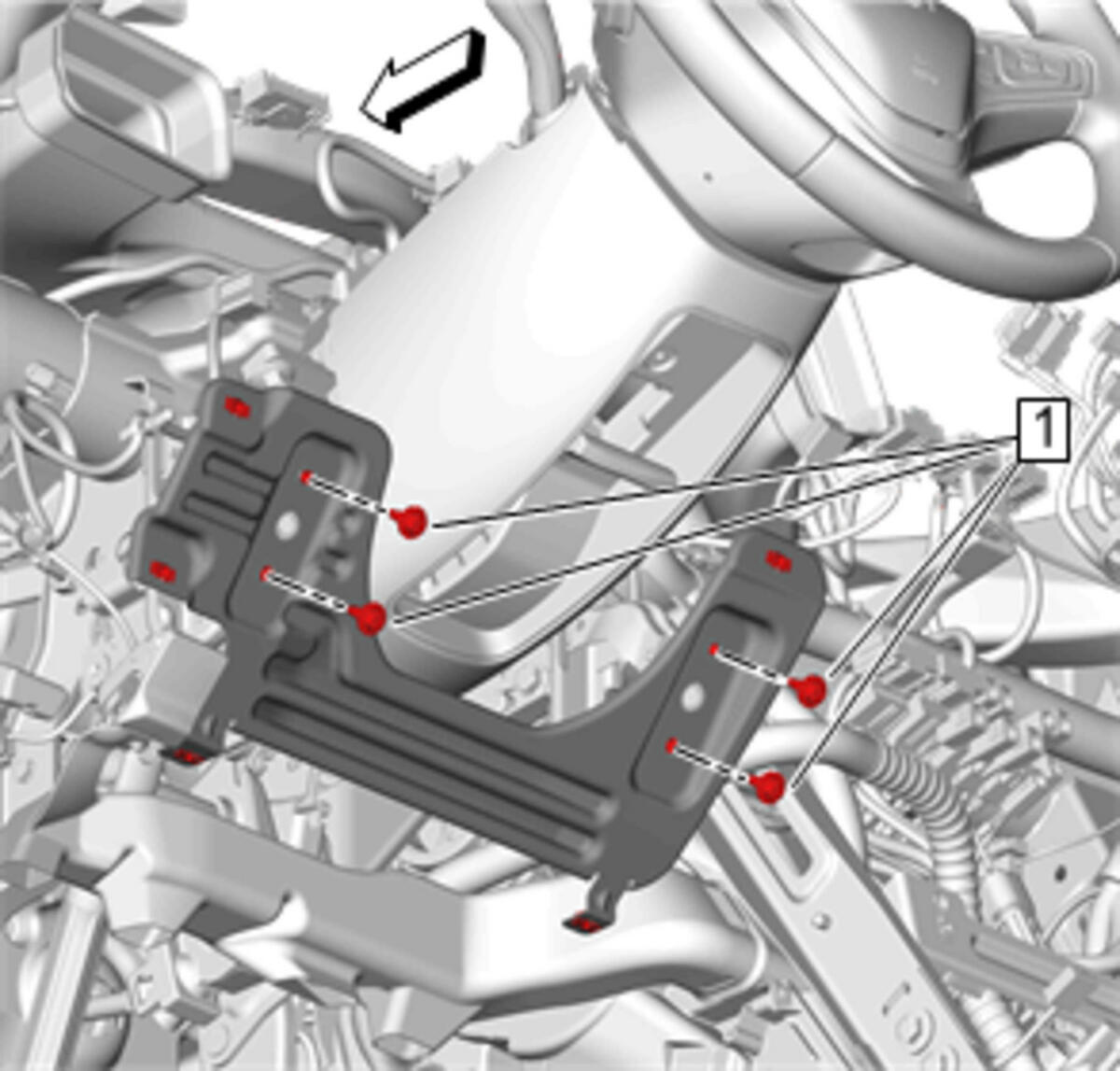

  2. GM4600302Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Knee Bolster Bracket Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

  3. GM4599425Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install - Instrument Panel Assembly Replacement (Equinox)

  4. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement

  5. GM4568507Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install - Communication Interface Module Replacement (Equinox)

  6. GM4568511Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Battery (2) - Install - Communication Interface Module Battery Replacement

  7. GM4590164Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Equinox)

  8. GM4566538Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Equinox)

  9. GM4562241Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Equinox)

  10. GM4595852Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (2) - Install - Instrument Panel Stowage Tray Replacement (Equinox)

  11. GM4581725Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement (Equinox)

  12. GM4579322Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Equinox)

  13. GM4580029Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Equinox)

  14. GM4588688Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Equinox)

  15. GM4584572Courtesy of GENERAL MOTORS COMPANY

    Hazard Warning Switch (1) - Install - Hazard Warning Switch Replacement (Equinox)

  16. GM4570349Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Equinox)

  17. GM4566666Courtesy of GENERAL MOTORS COMPANY

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Equinox)

  18. GM4583879Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Equinox)

  19. GM4580403Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install - Front Floor Console Applique Replacement (Equinox)

  20. GM4566303Courtesy of GENERAL MOTORS COMPANY

    Radio Control (1) - Install - Radio Control Assembly Replacement (Equinox)

  21. GM4592534Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (Equinox)

  22. GM4564834Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install - Serial Data Gateway Module Replacement (Terrain)

  23. GM4563578Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side (Equinox)

  24. GM4564182Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Right Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Right Side (Equinox)

  25. GM4564180Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Left Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Left Side (Equinox)

  26. GM4563225Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Left Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side (Equinox)

  27. GM4562239Courtesy of GENERAL MOTORS COMPANY

    Remove the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Equinox)

  28. GM4597051Courtesy of GENERAL MOTORS COMPANY

    Remove the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Equinox)
