Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

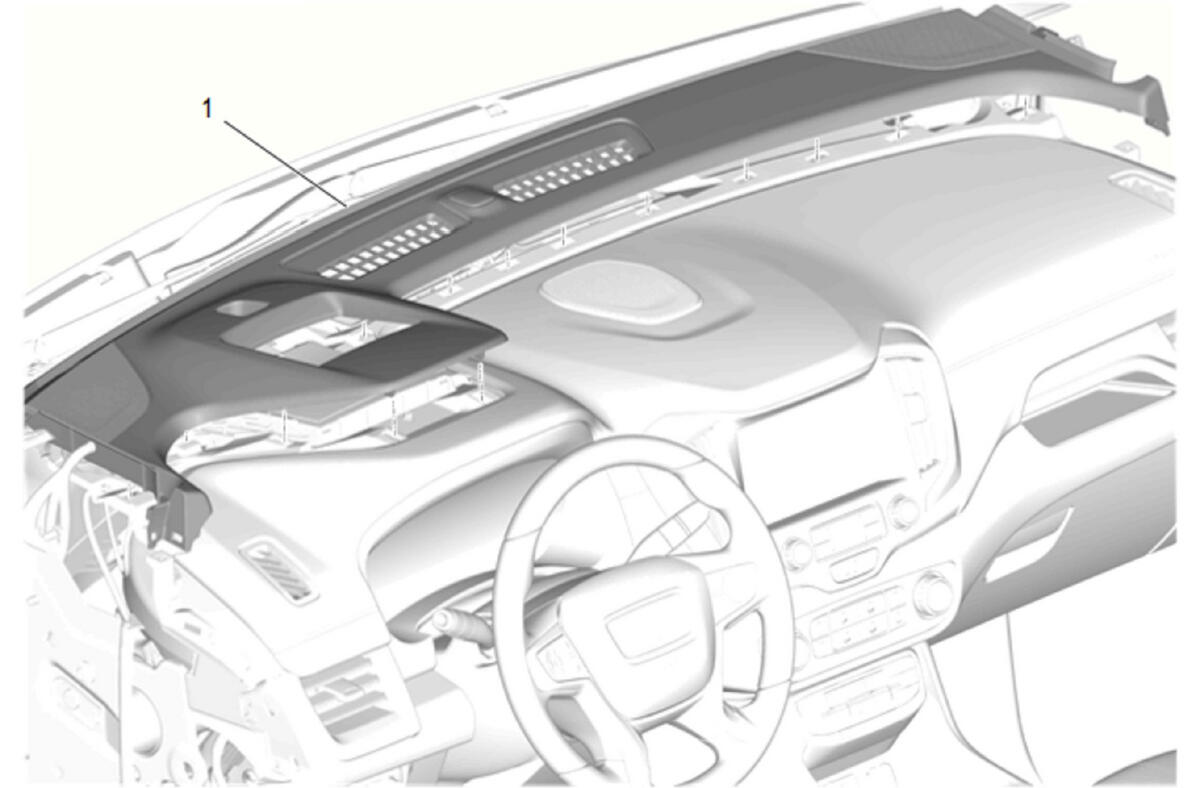

Instrument Panel Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Engage the instrument panel extension retainers (1) to the instrument upper trim panel.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

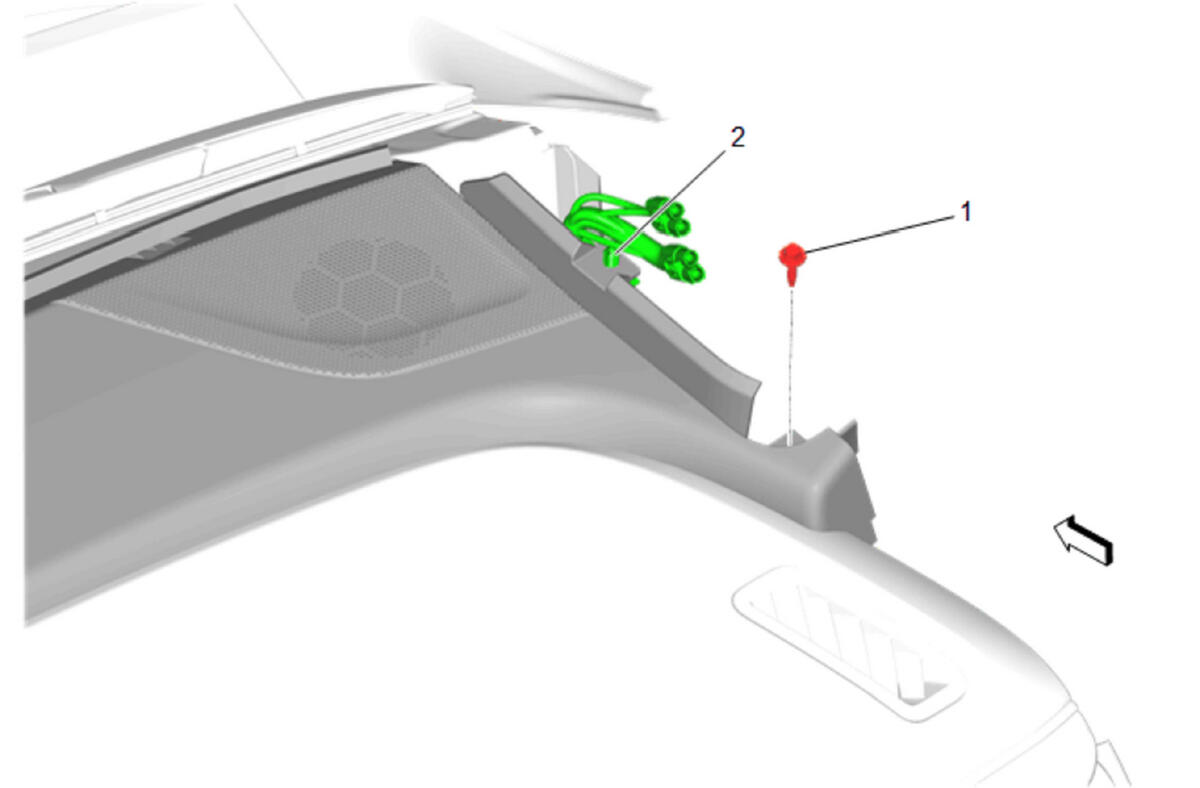

Instrument Panel Extension Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the harness clip.(2)

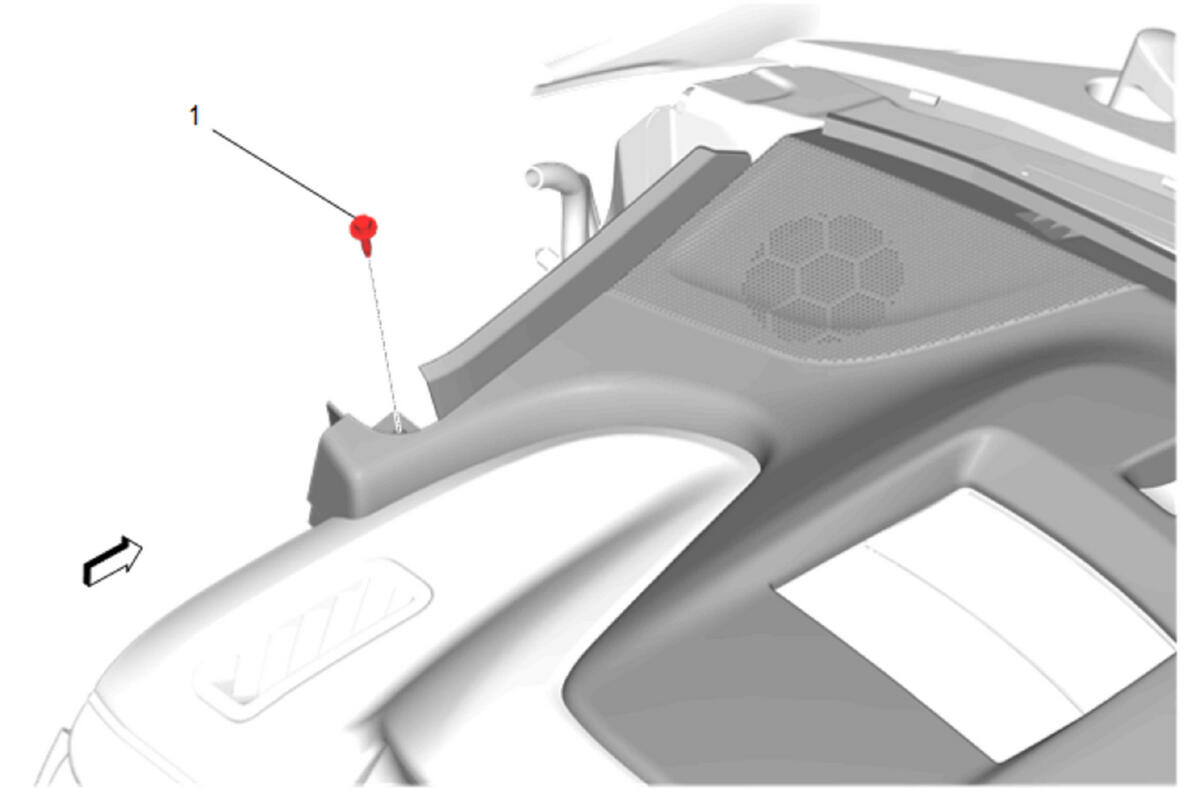

Instrument Panel Extension Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Install the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Terrain)
