Removal Procedure

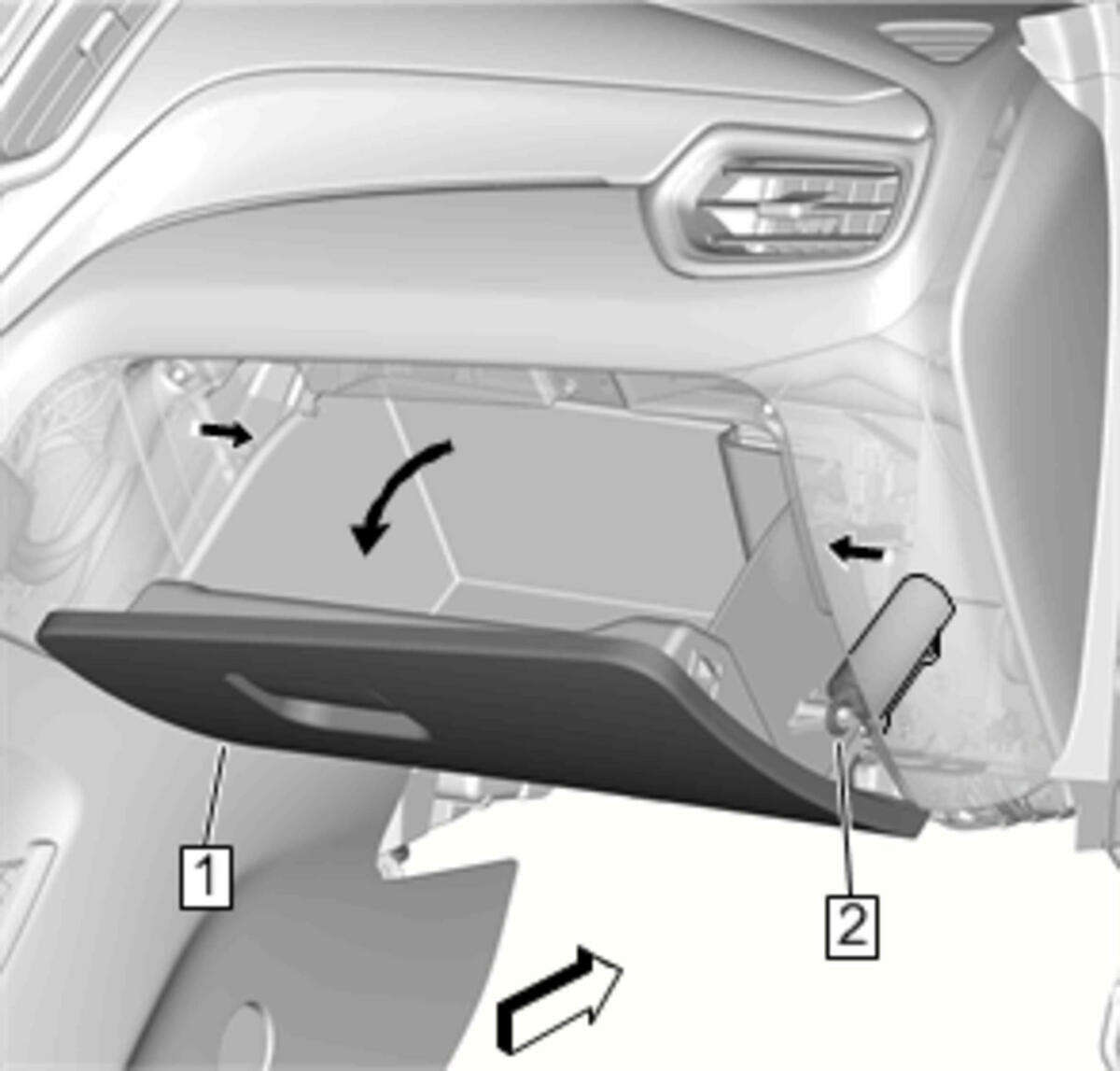

  1. GM4583877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Open

  2. Disconnect the instrument panel compartment door dampener (2) from the instrument panel compartment door (1).

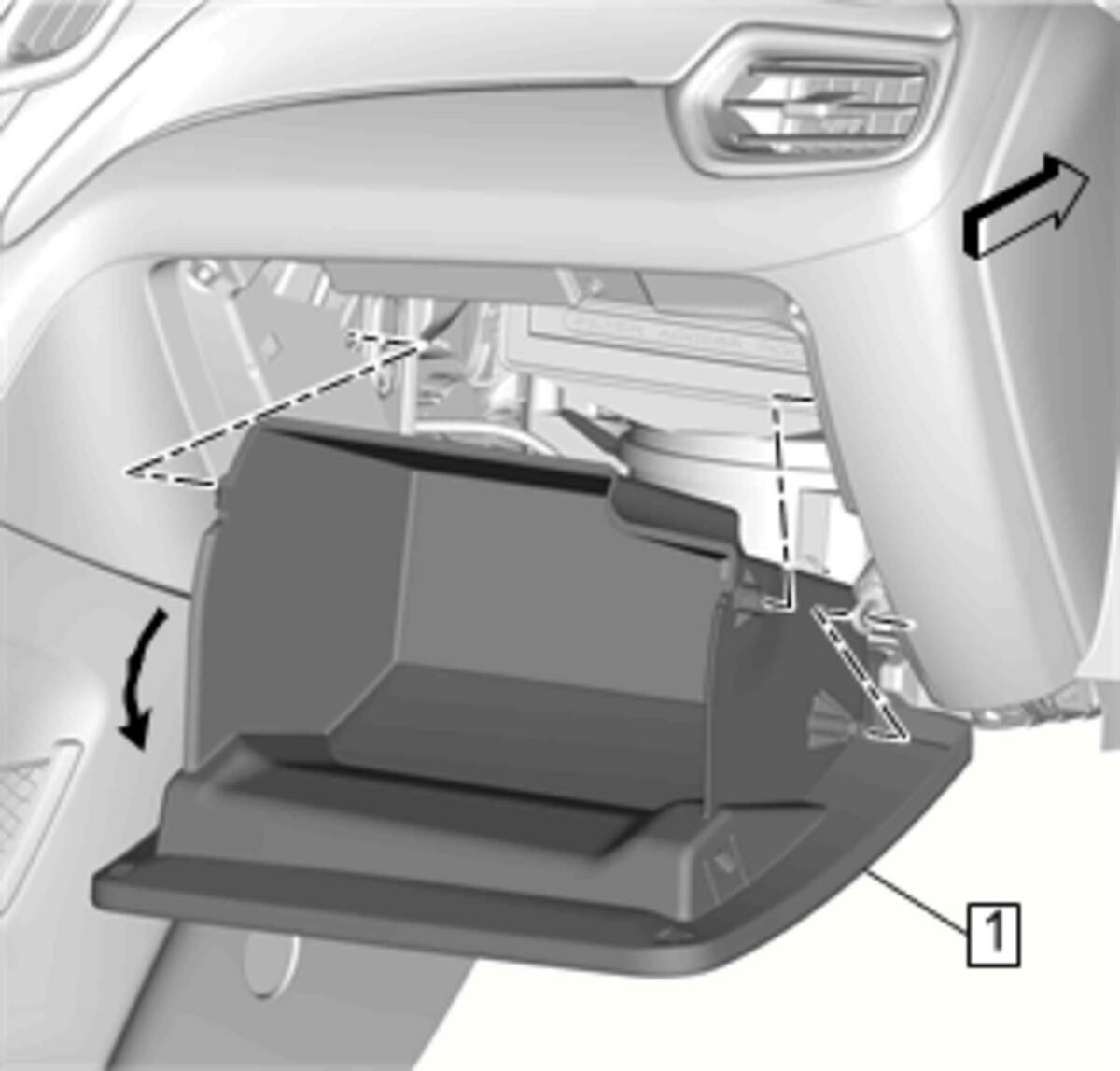

  3. GM4583878Courtesy of GENERAL MOTORS COMPANY

    Release the retainers and squeeze the sides of the instrument panel compartment (1) to allow the door to open past the stops.

  4. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Remove
