Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

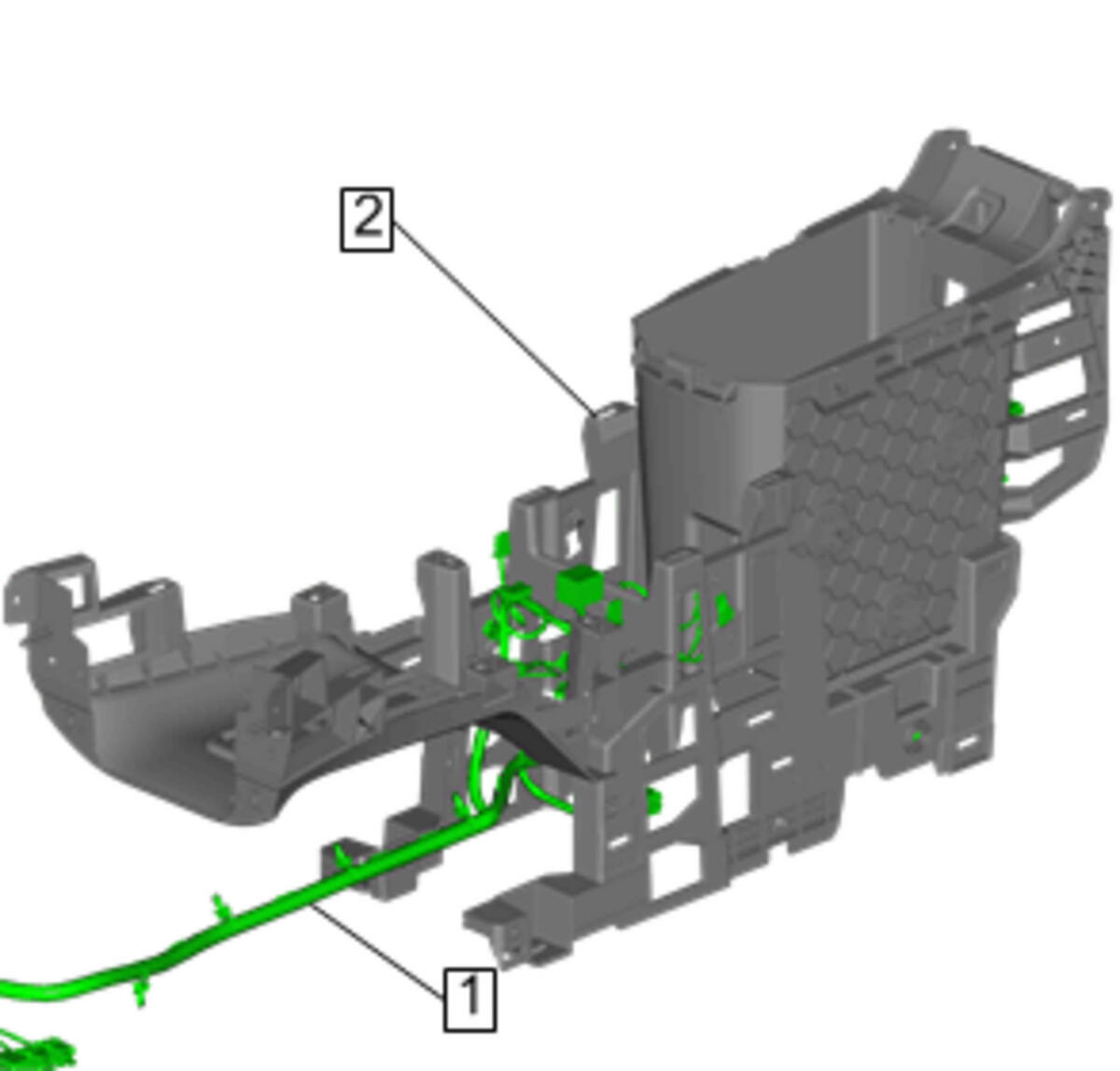

Install the wiring harness (1) to the main front floor console retainer (2).

Courtesy of GENERAL MOTORS COMPANY

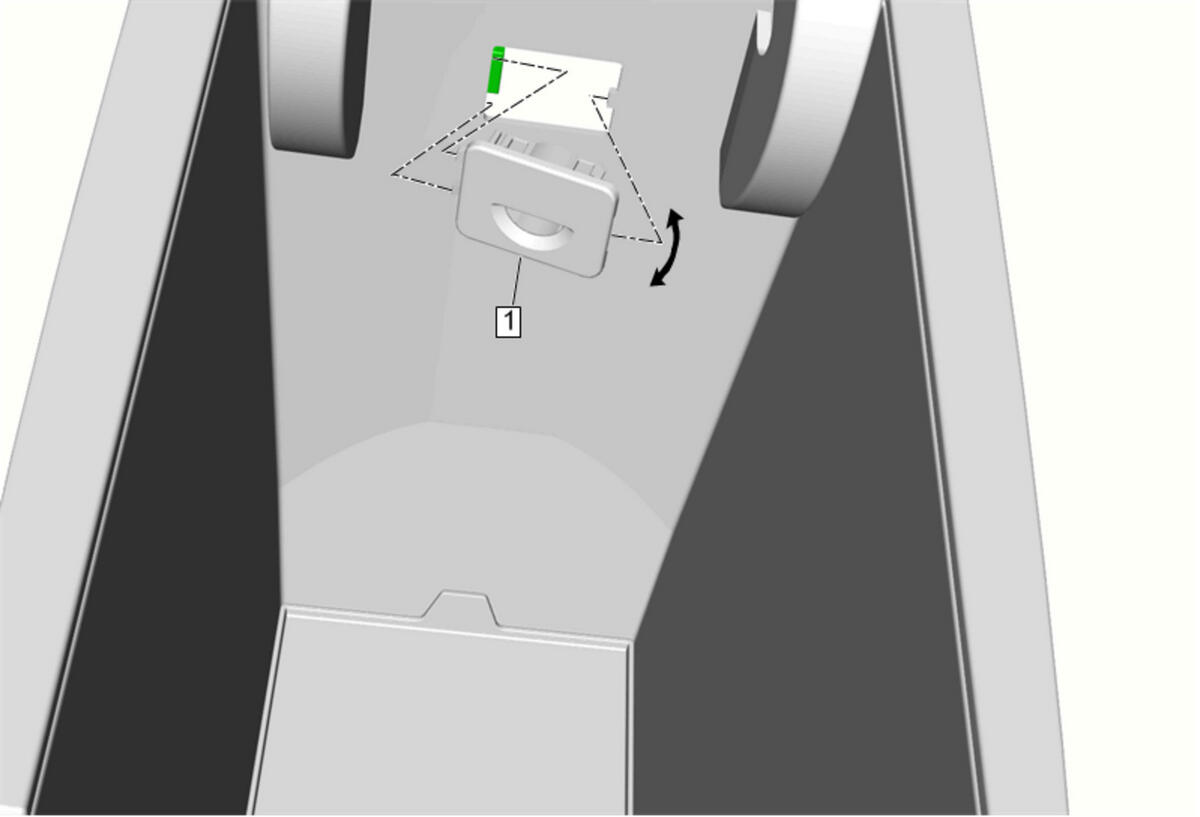

Interior Lamp Bezel (1) - Install - Interior Lamp Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

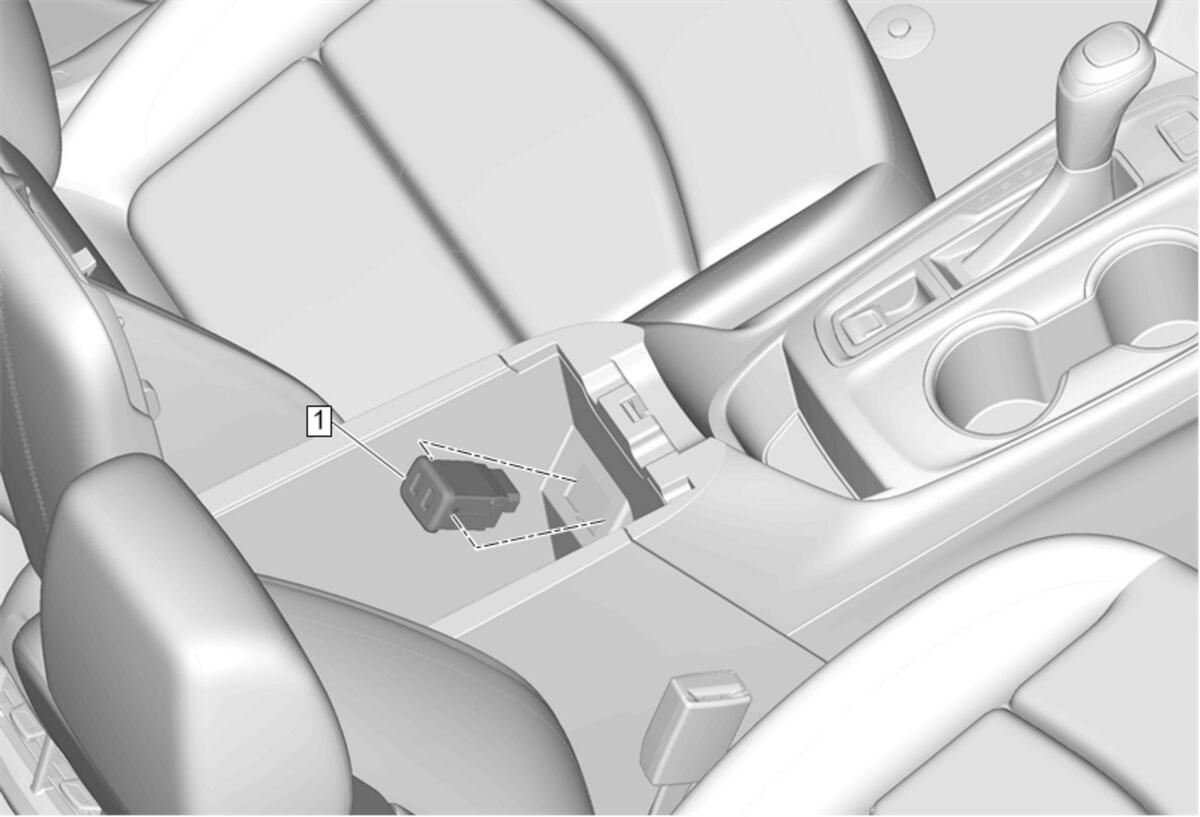

USB Receptacle (1) - Install - USB Receptacle Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (1) - Install - Front Floor Console Armrest Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

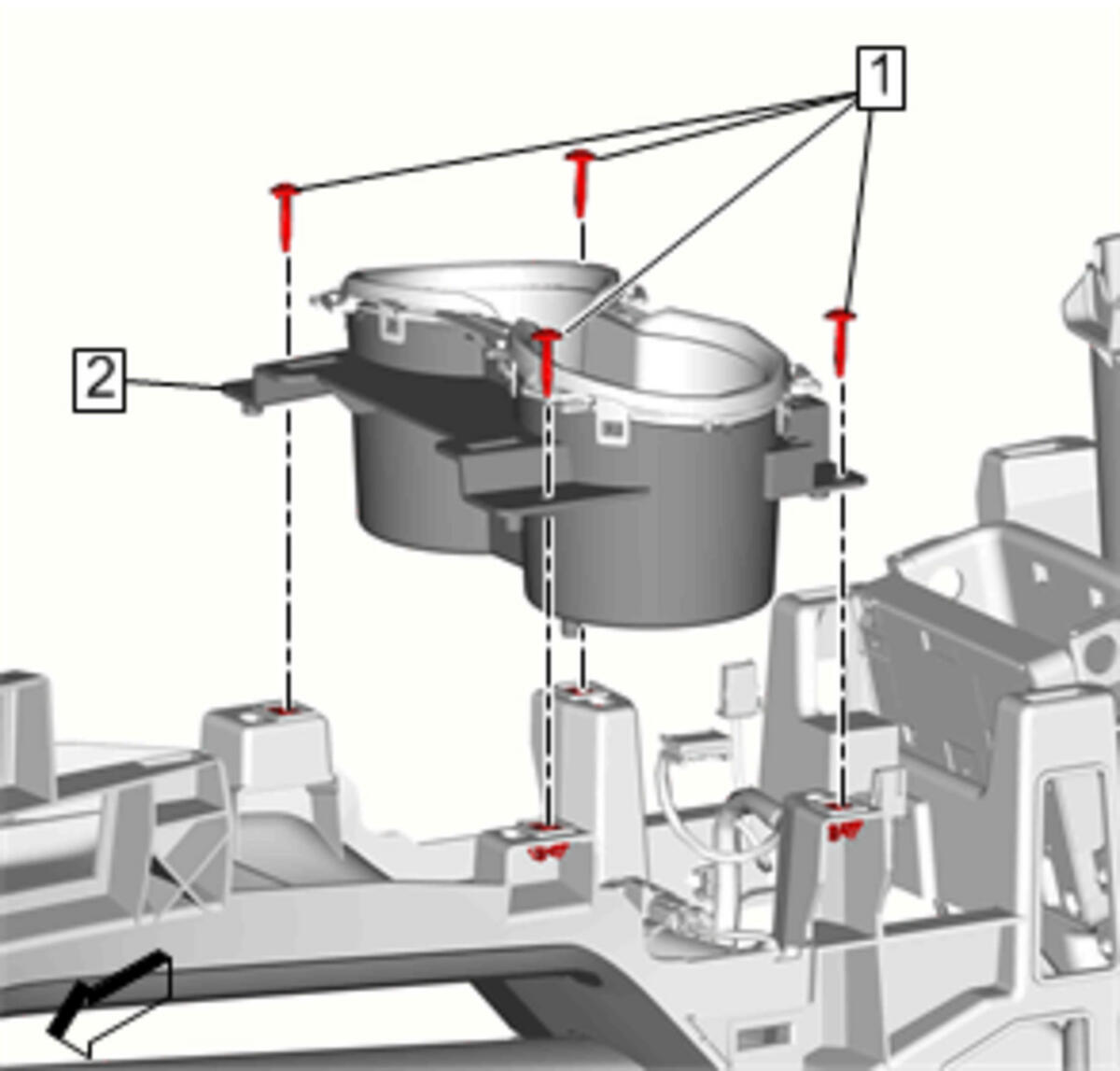

Front Floor Console Cup Holder (2) - Install - Front Floor Console Cup Holder Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

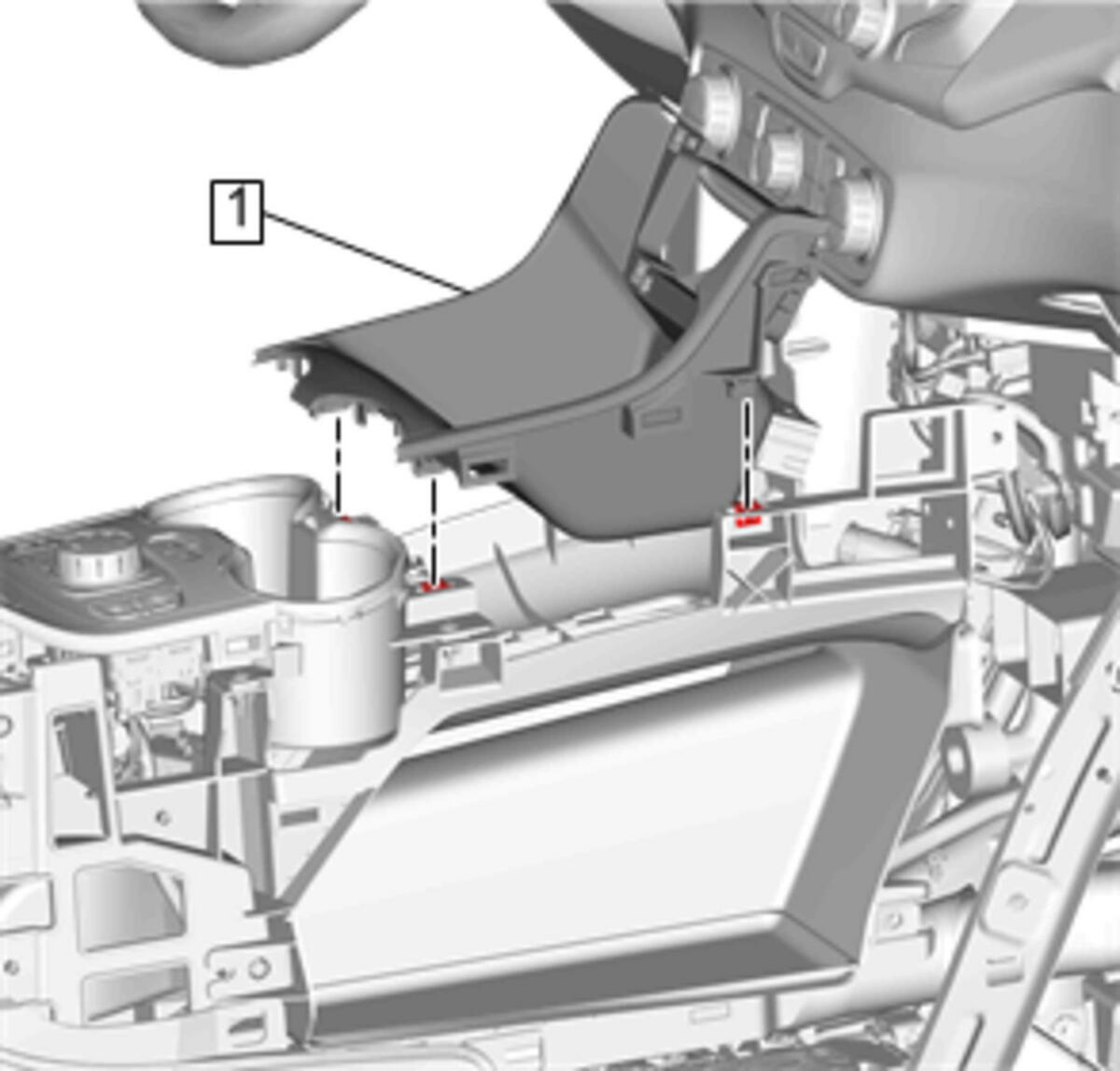

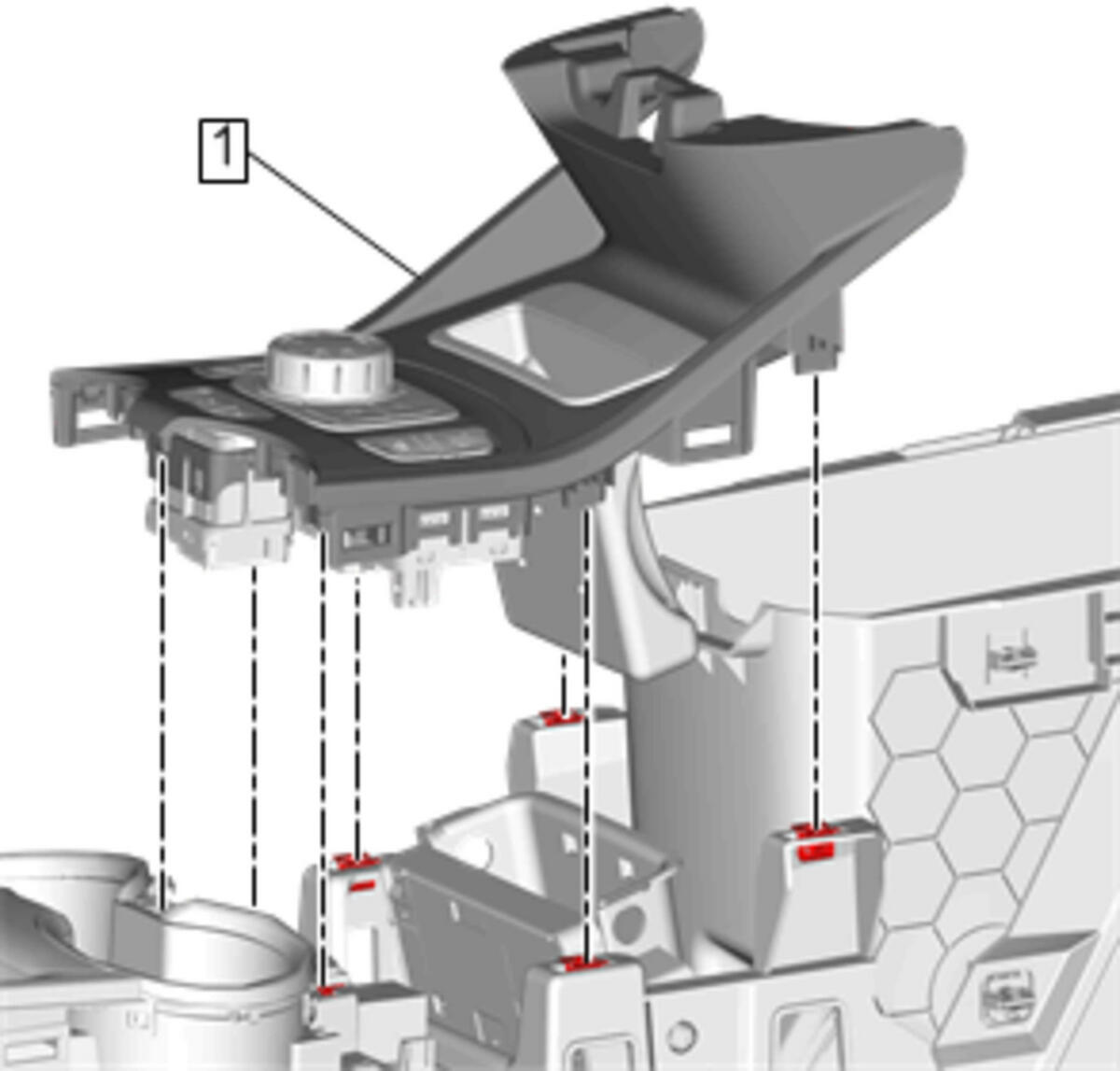

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Compartment (1) - Install - Front Floor Console Front Compartment Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

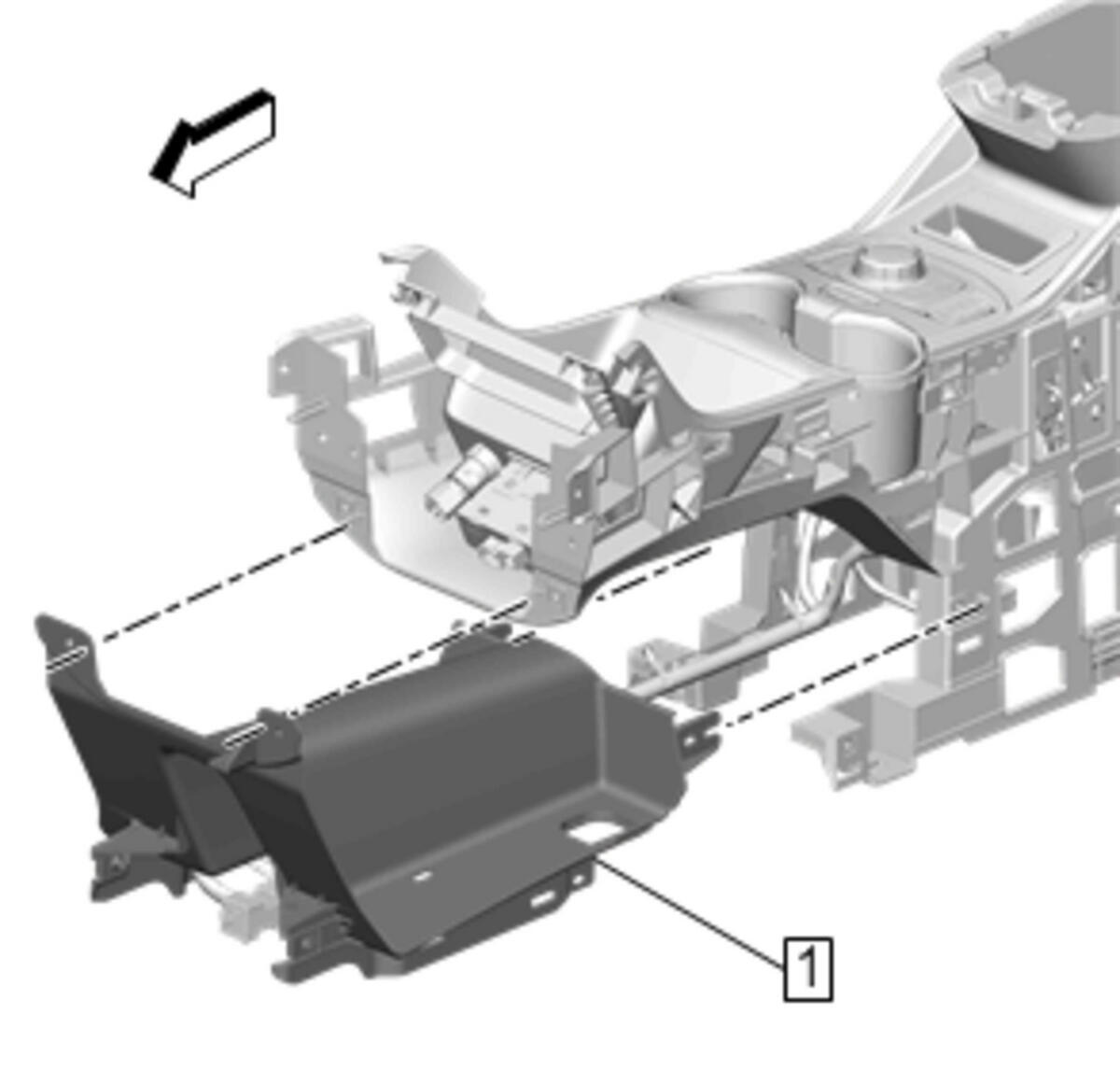

Front Floor Console Retainer - Lower Retainer (1) - Install

Courtesy of GENERAL MOTORS COMPANY

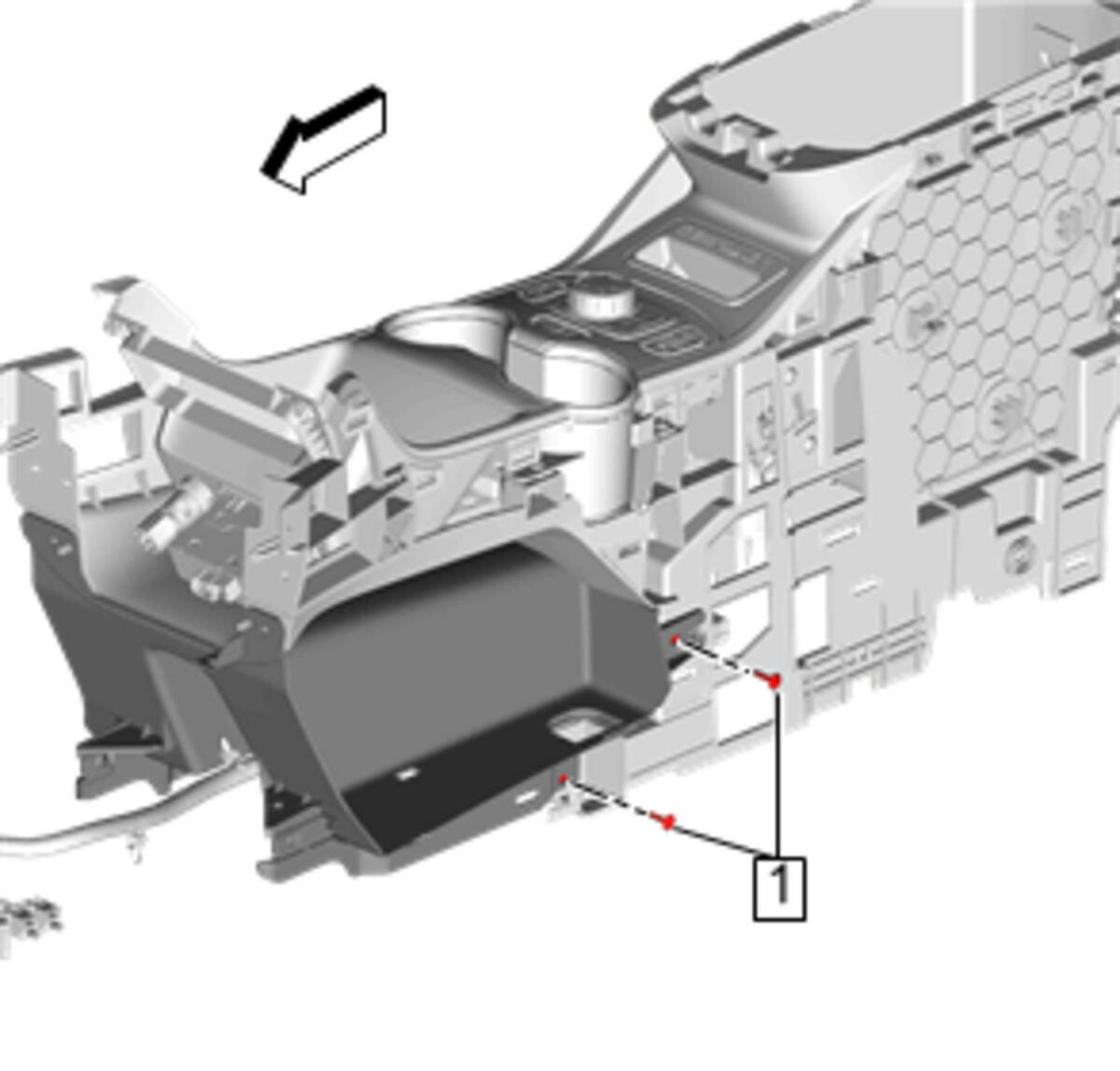

Front Floor Lower Console Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

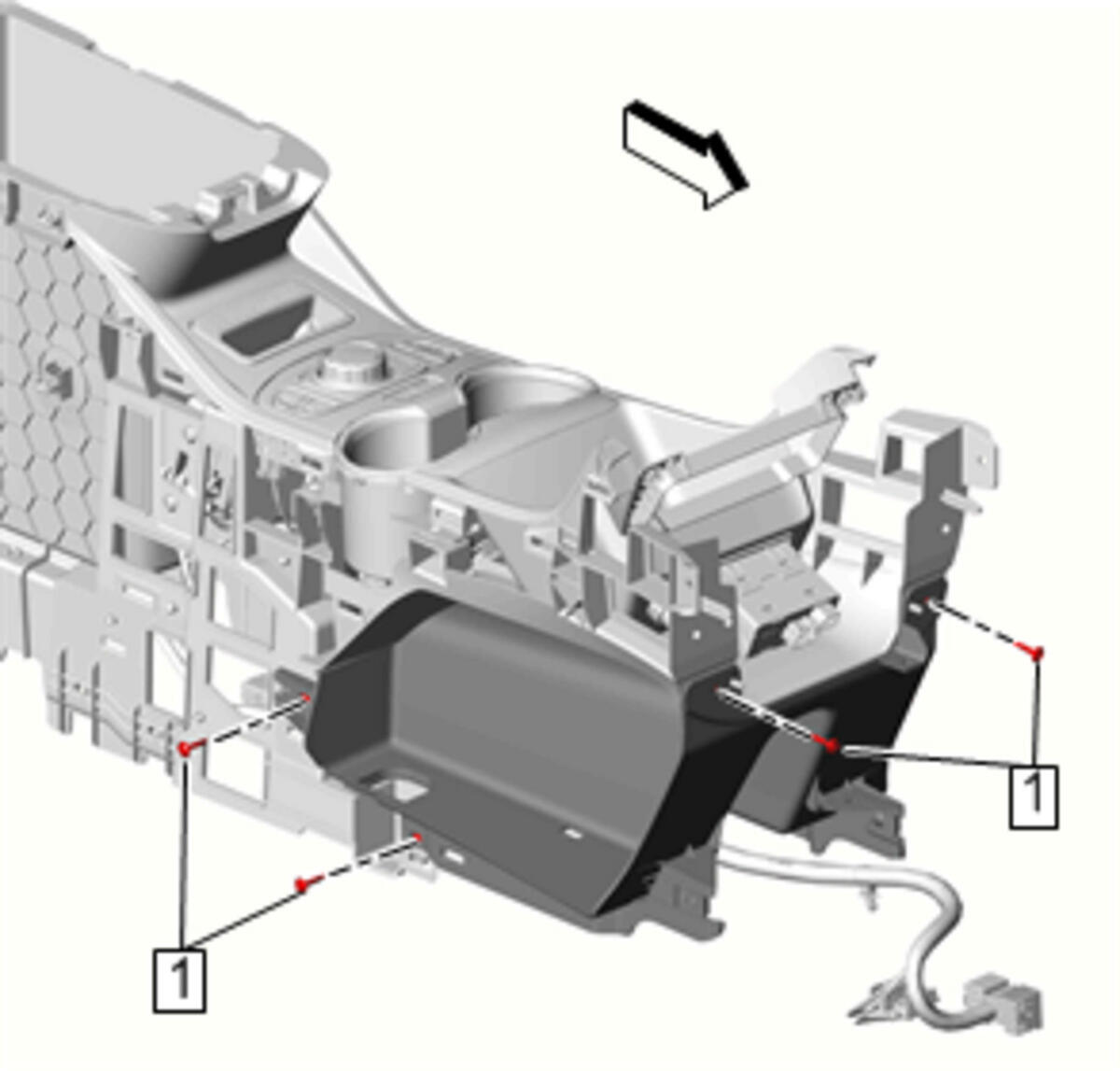

Front Floor Lower Console Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

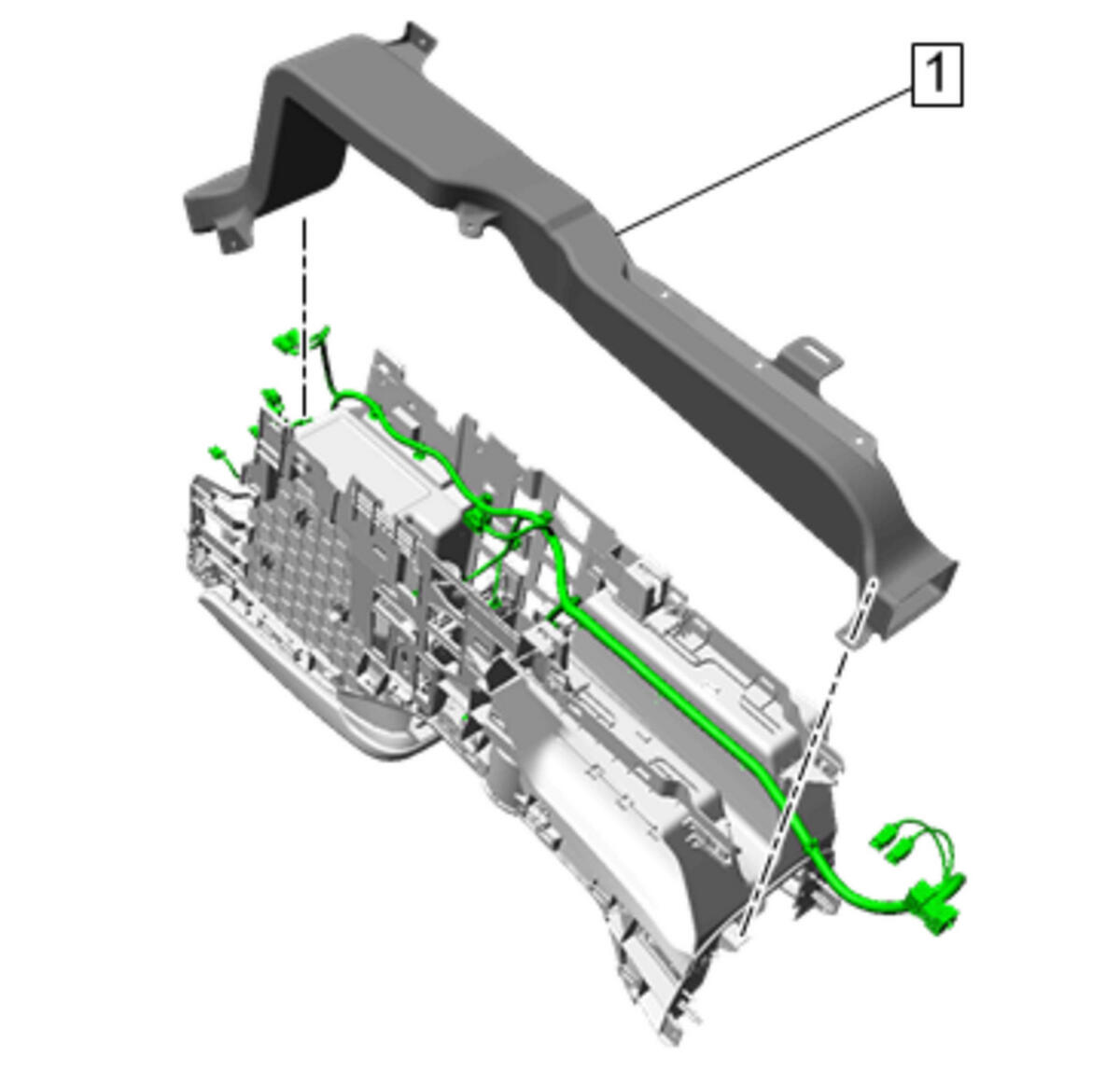

Front Floor Console Rear Air Duct (1) - Install - Front Floor Console Rear Air Duct Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

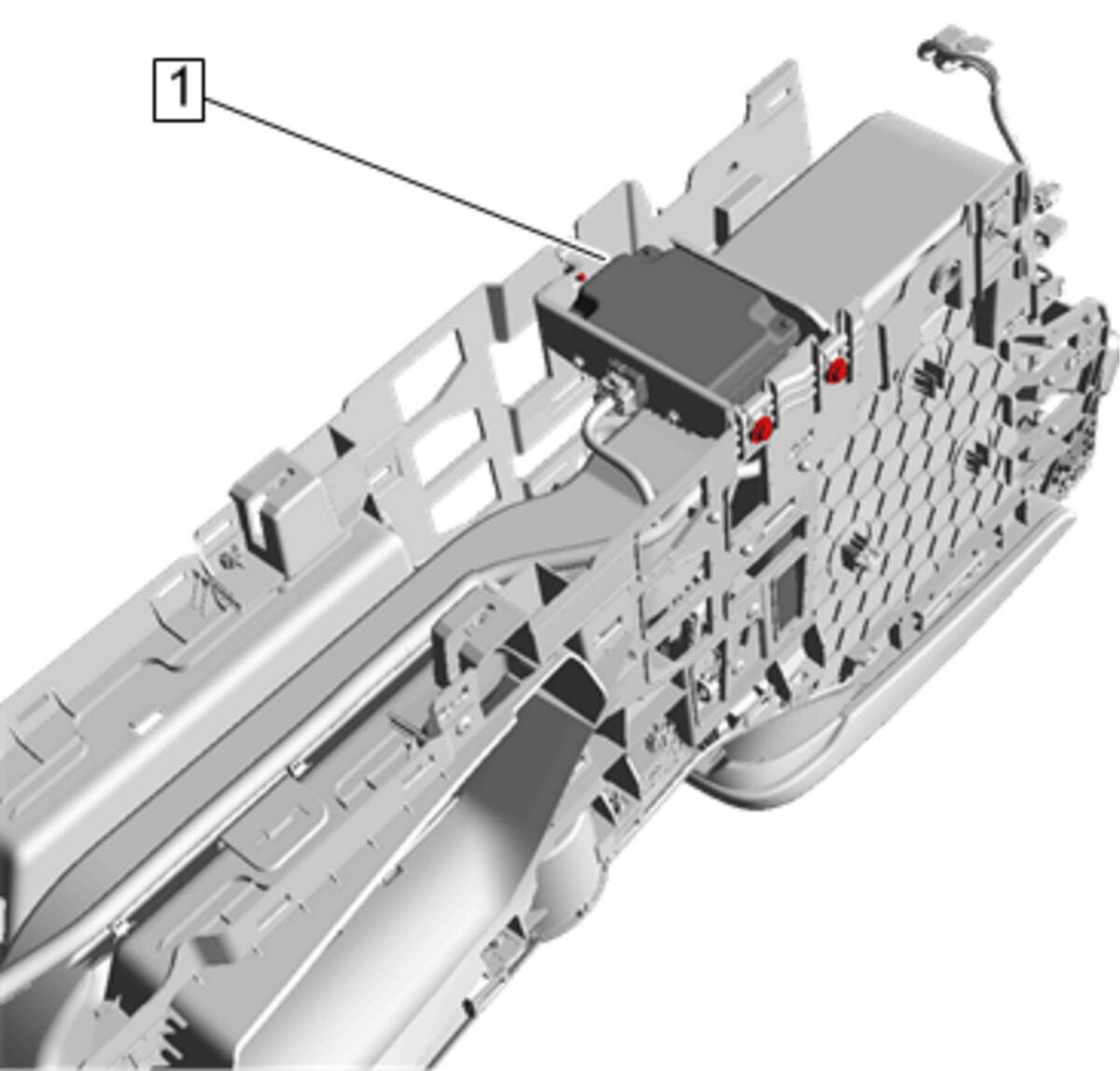

Accessory AC and DC Power Control Module (1) - Install - Accessory AC and DC Power Control Module Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

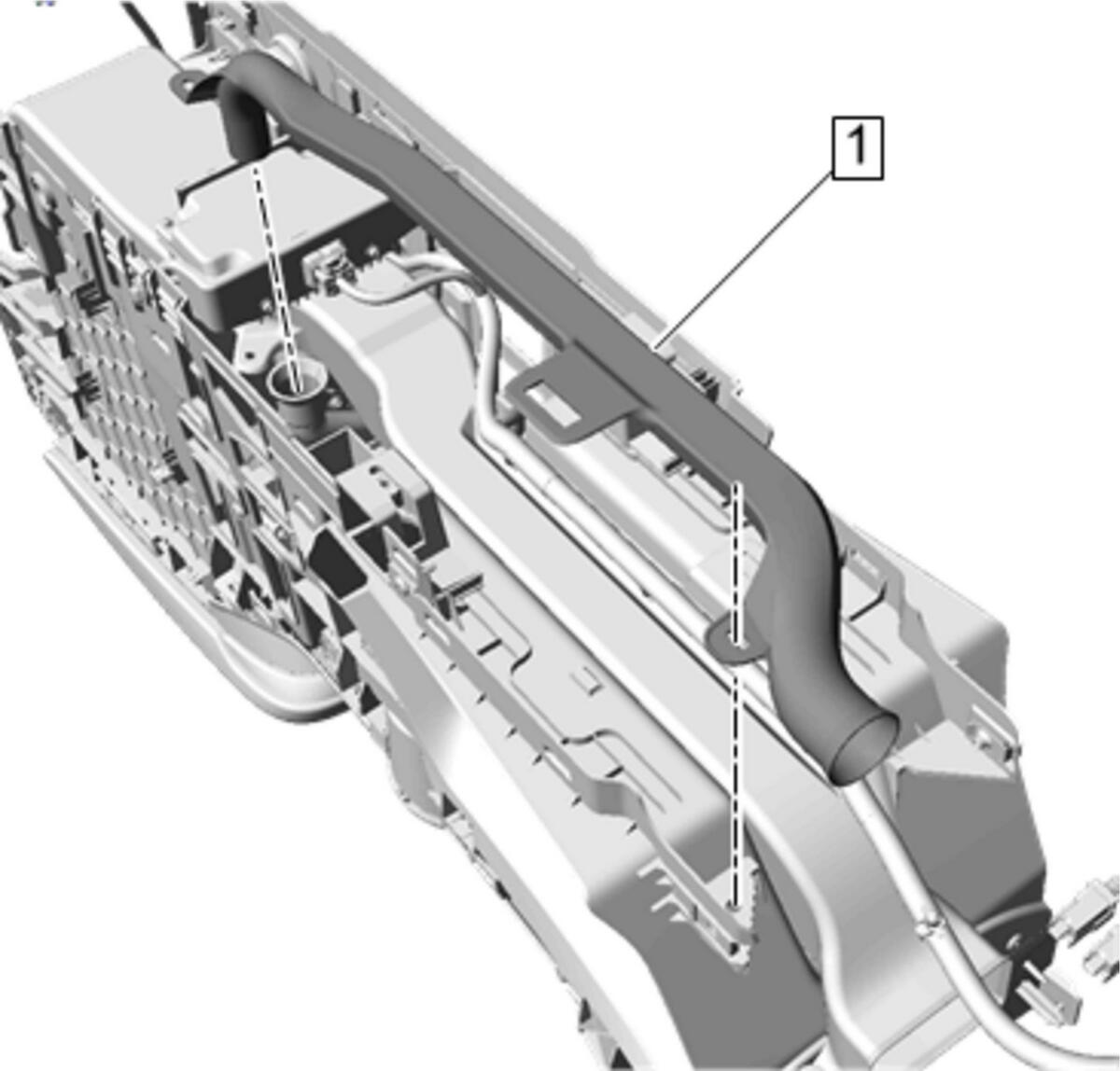

Front Floor Console Auxiliary Cooling Duct (1) - Install - Front Floor Console Auxiliary Cooling Duct Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

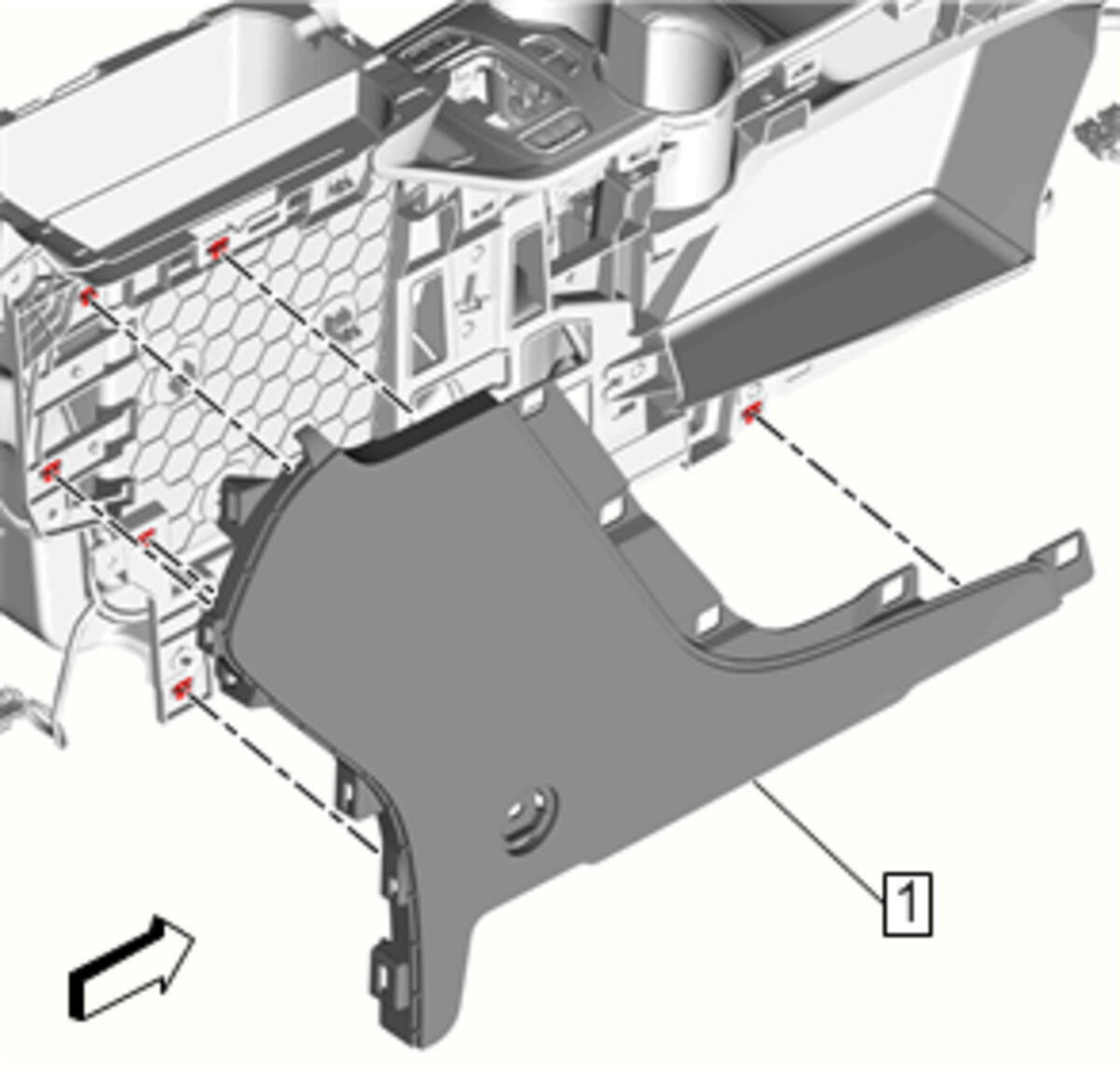

Front Floor Console Rear Trim Panel - Right Side (1) - Install

Courtesy of GENERAL MOTORS COMPANY

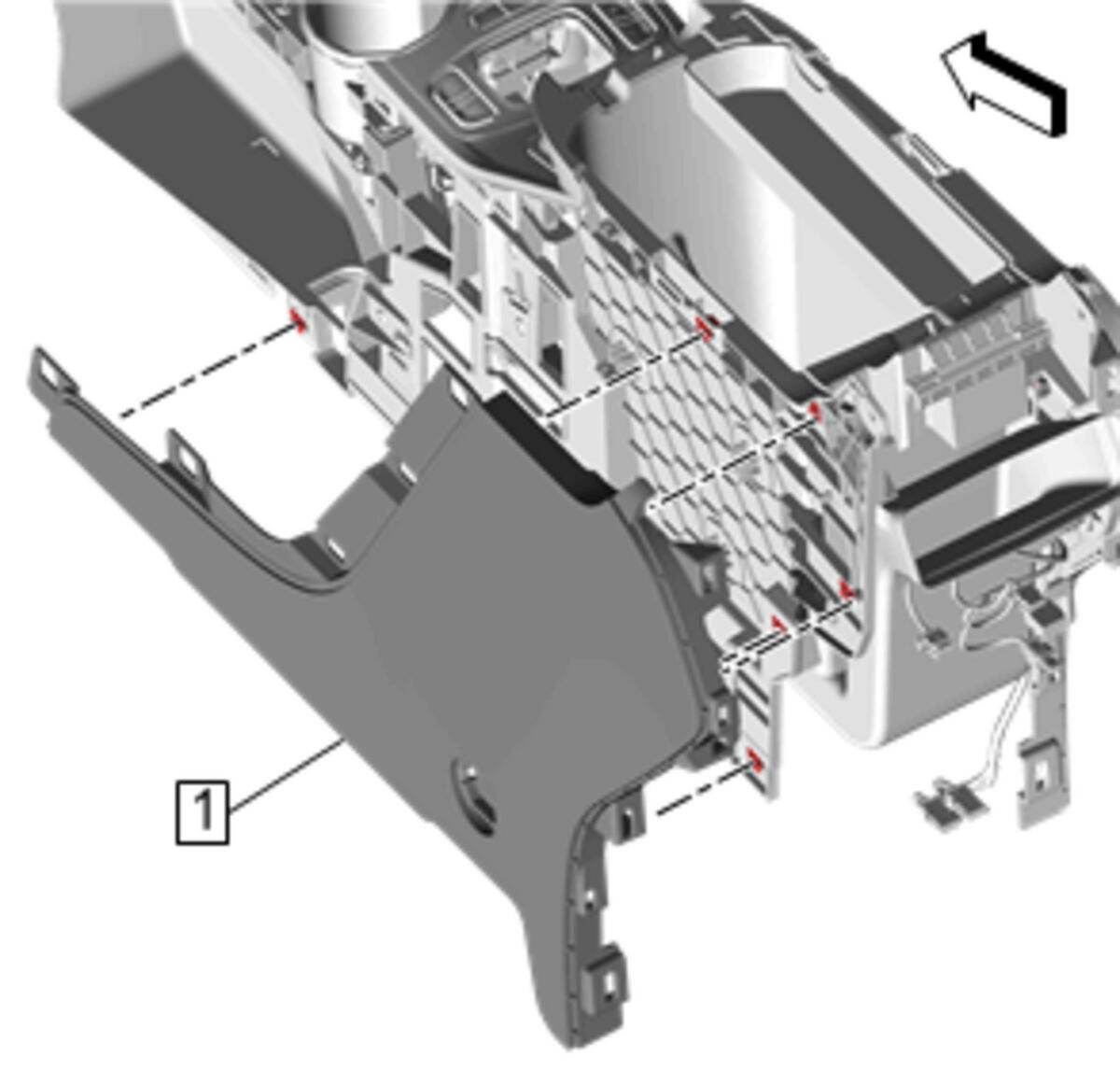

Front Floor Console Rear Trim Panel - Left Side (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Replacement (Terrain) , or Front Floor Console Replacement (Terrain 2022)

Courtesy of GENERAL MOTORS COMPANY

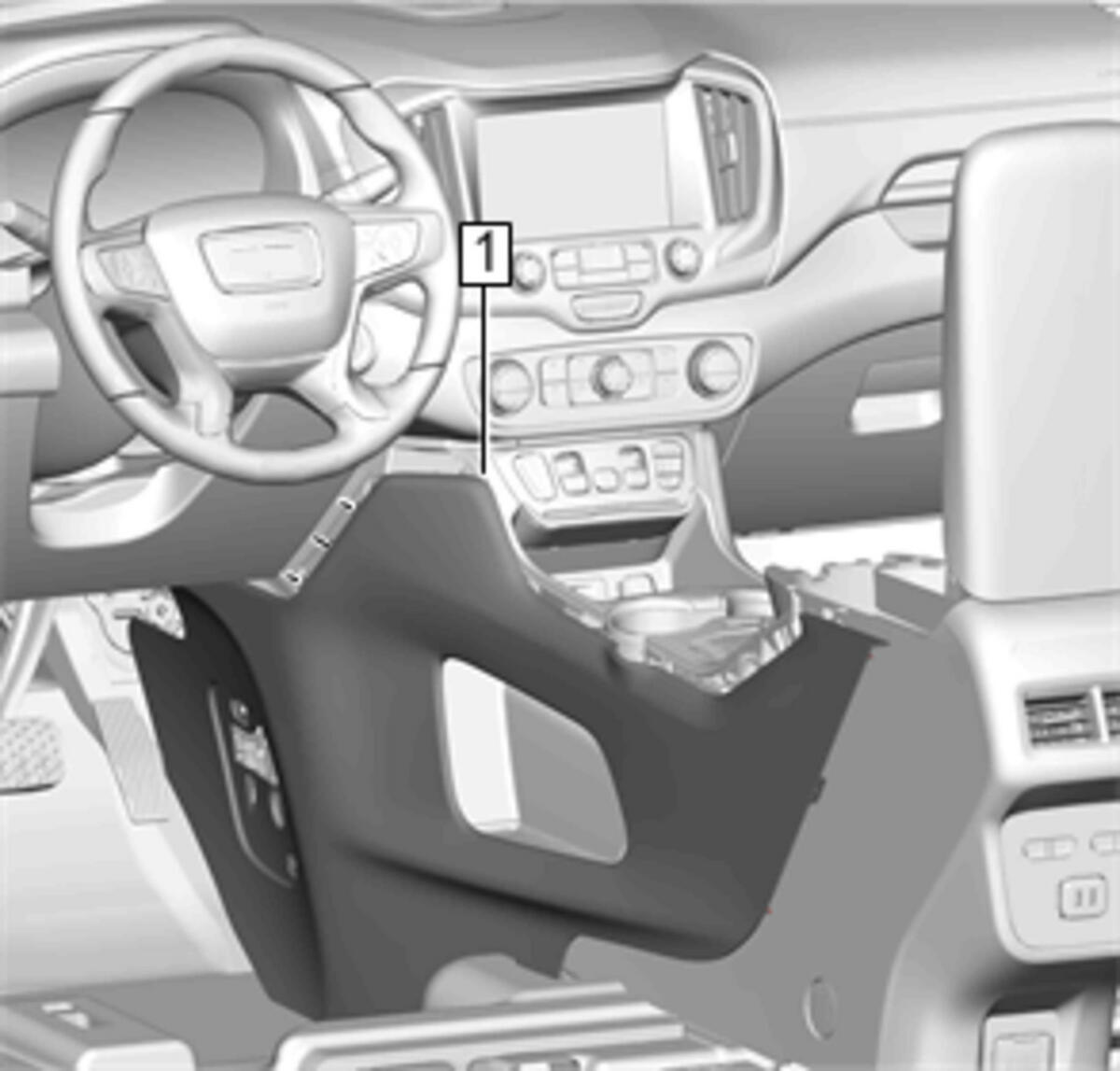

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Terrain)

Courtesy of GENERAL MOTORS COMPANY

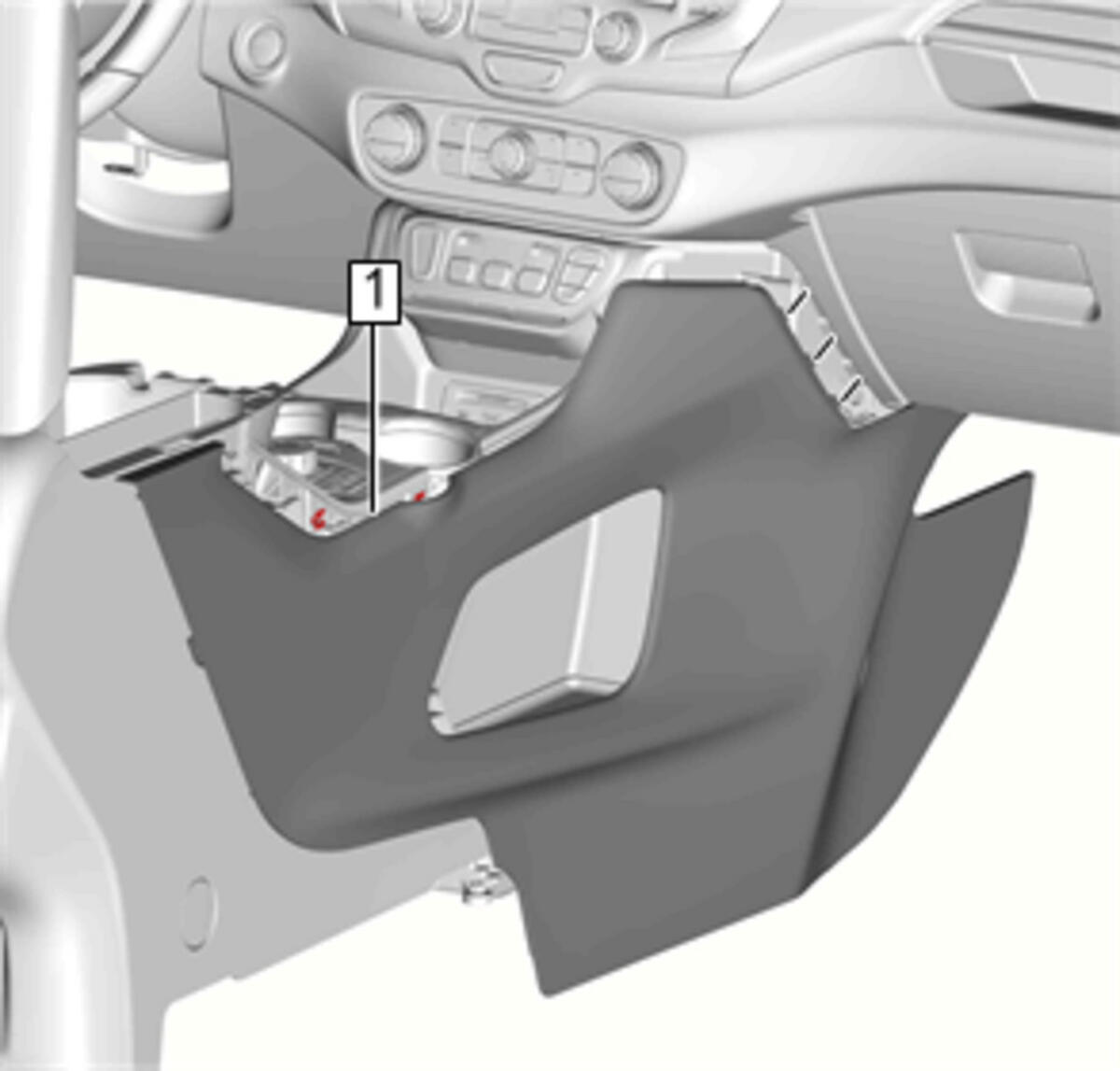

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Terrain)
