Installation Procedure

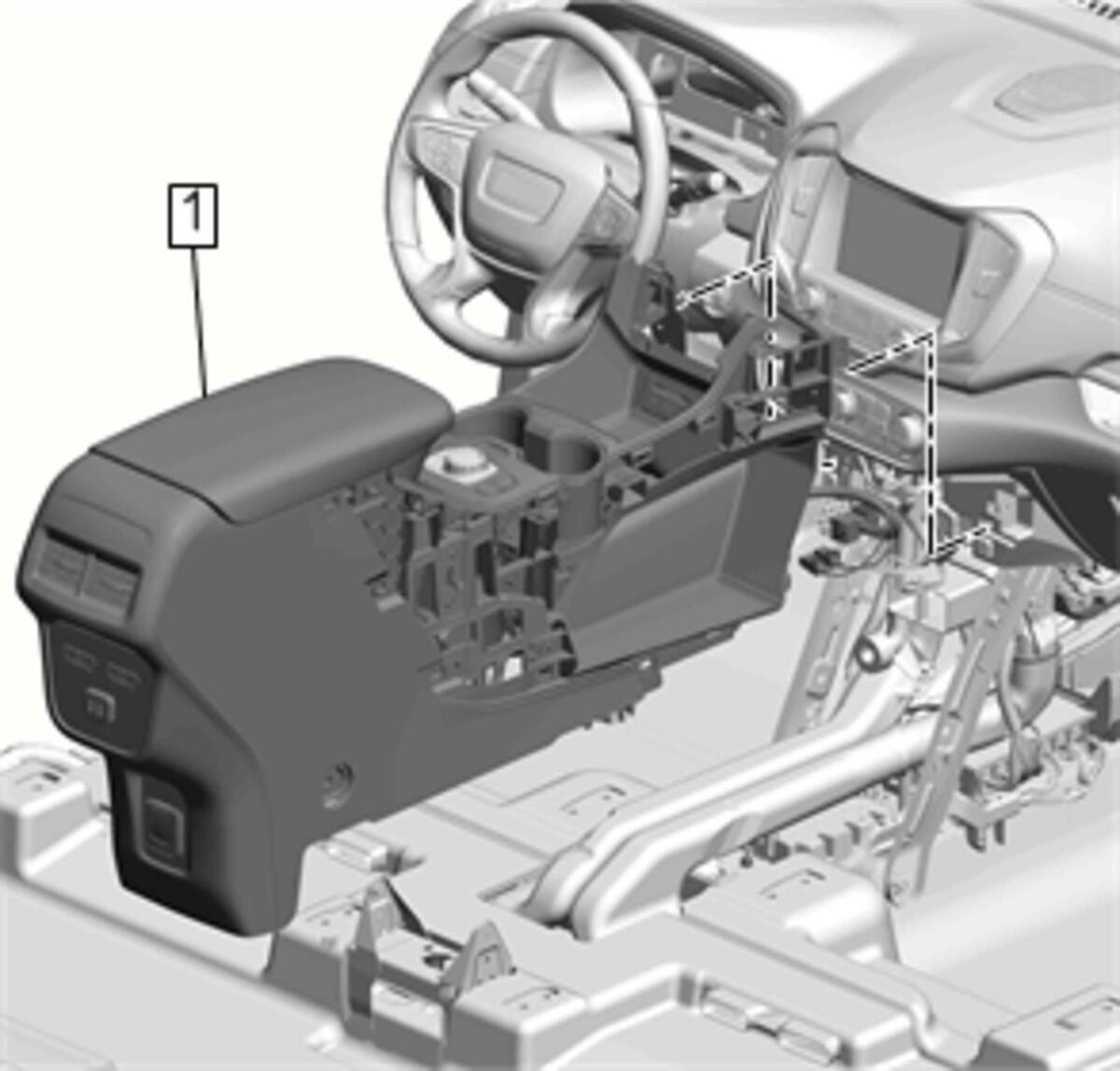

With the aid of an assistant, install the console to the vehicle.(1)
- Connect the electrical connectors.
- Carefully install the front floor console assembly guide pins into the instrument panel assembly.
- When installing the front floor console take care in seating the auxiliary air conditioning air outlet duct to the front floor console rear air duct
- CAUTION:
Refer to Fastener Caution .

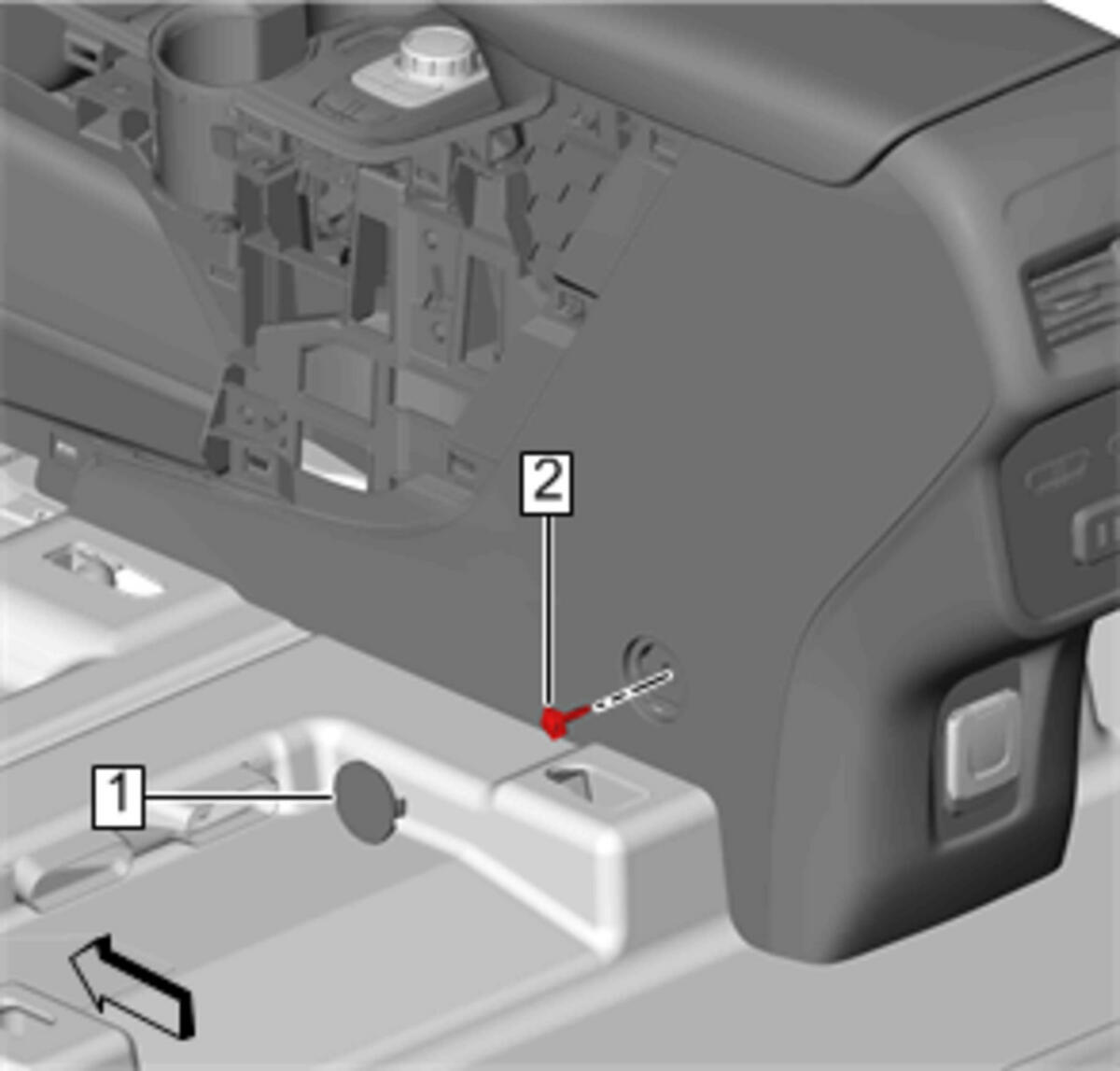

Front Floor Console Bolt (2) @ Front Floor Console Bracket - Install and tighten 9 N.m (80 lb in)
- Front Floor Console Bolt Access Hole Cover (1) - Install

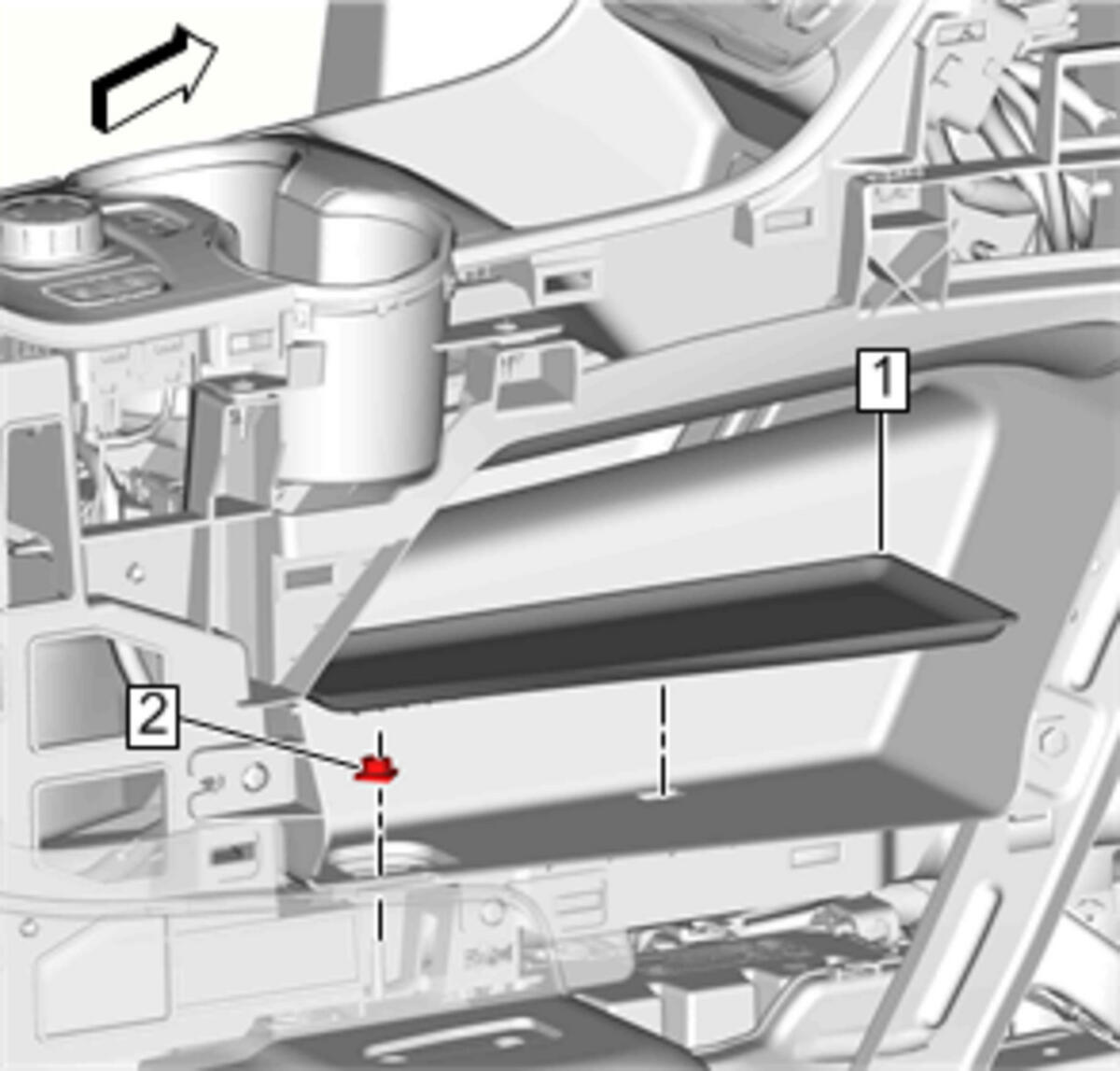

Front Floor Console Nut (2) - Install and tighten 7 N.m (62 lb in)
- Front Floor Side Stowage Compartment Liner (1) - Install

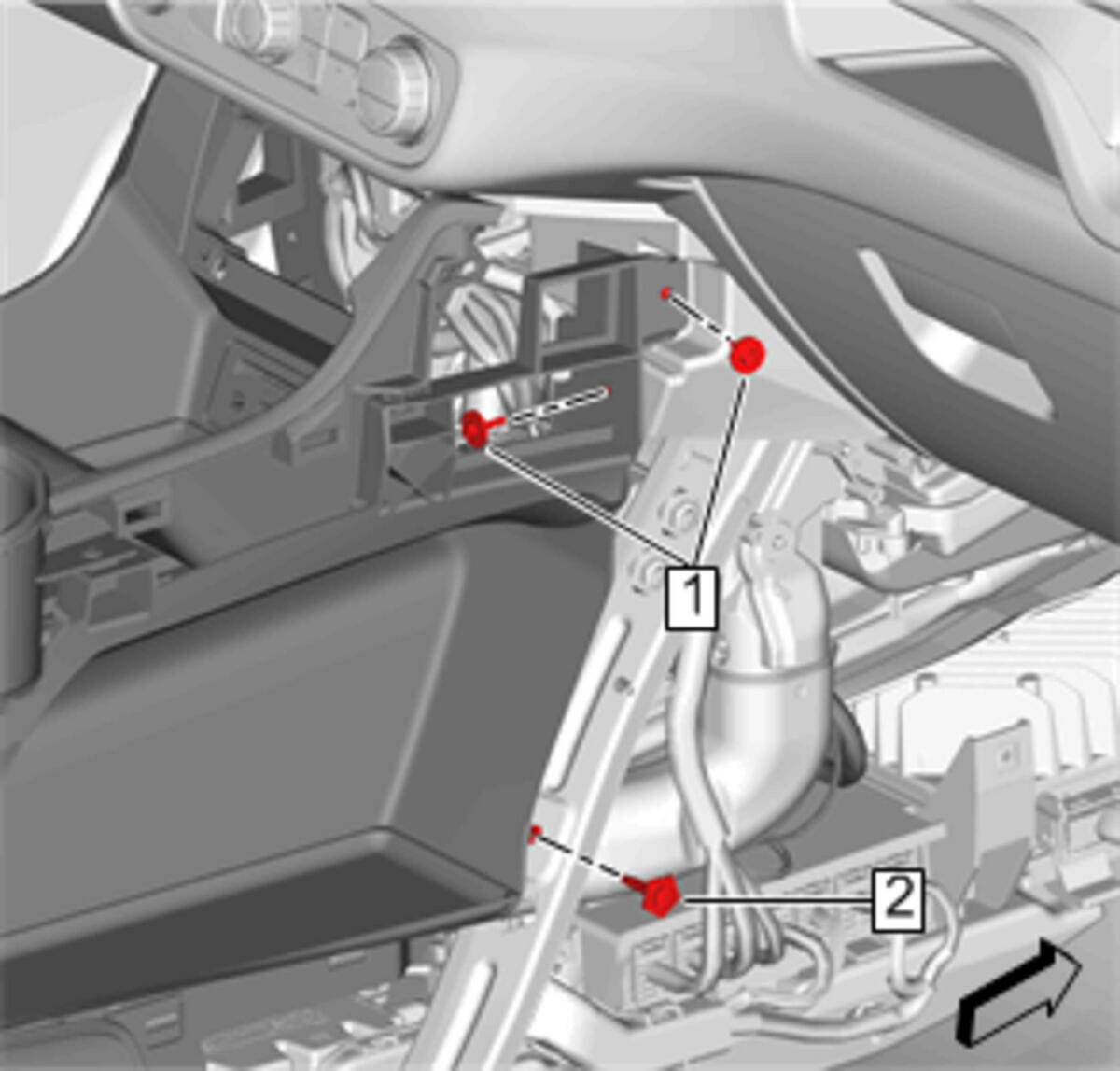

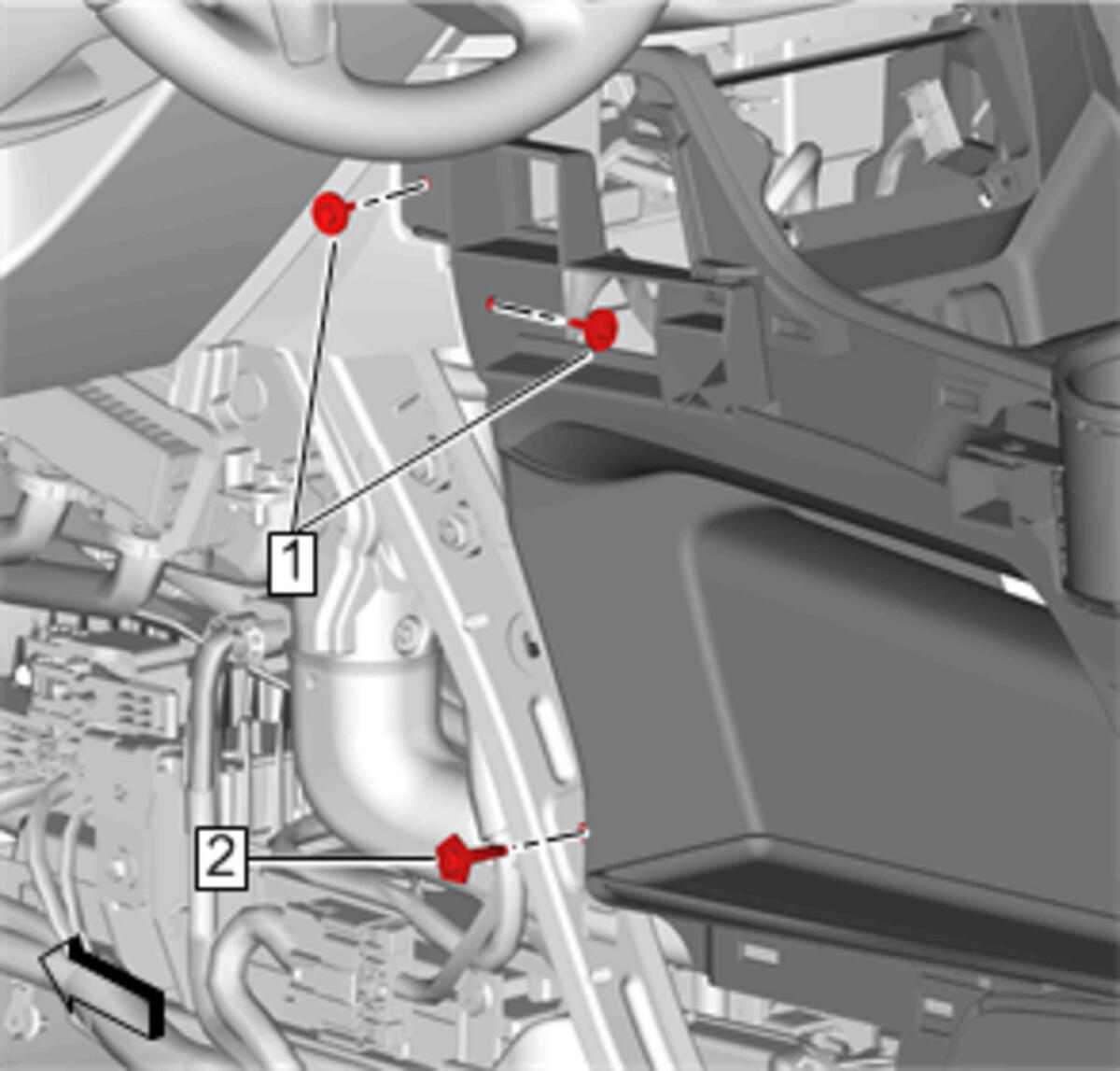

Front Floor Console Bolt (1) @ Instrument Panel - Install and tighten [2x] 2.5 N.m (22 lb in)
- Front Floor Console Retainer Bolt (2) @ Instrument Panel - Install and tighten 7 N.m (62 lb in)

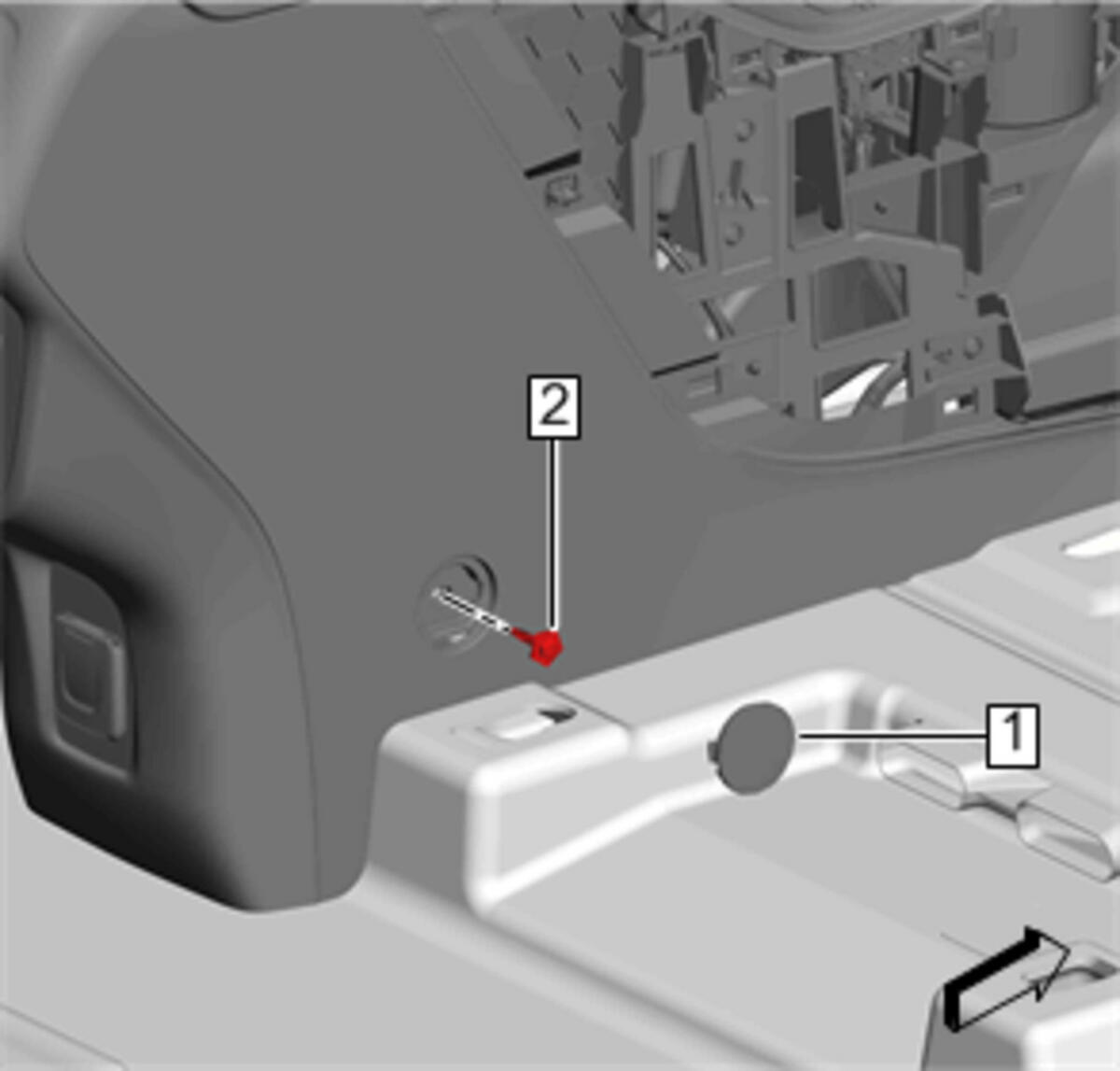

Front Floor Console Bolt (2) @ Front Floor Console Bracket - Install and tighten 9 N.m (80 lb in)
- Front Floor Console Bolt Access Hole Cover (1) - Install
- Return the driver and passenger seats to original position.

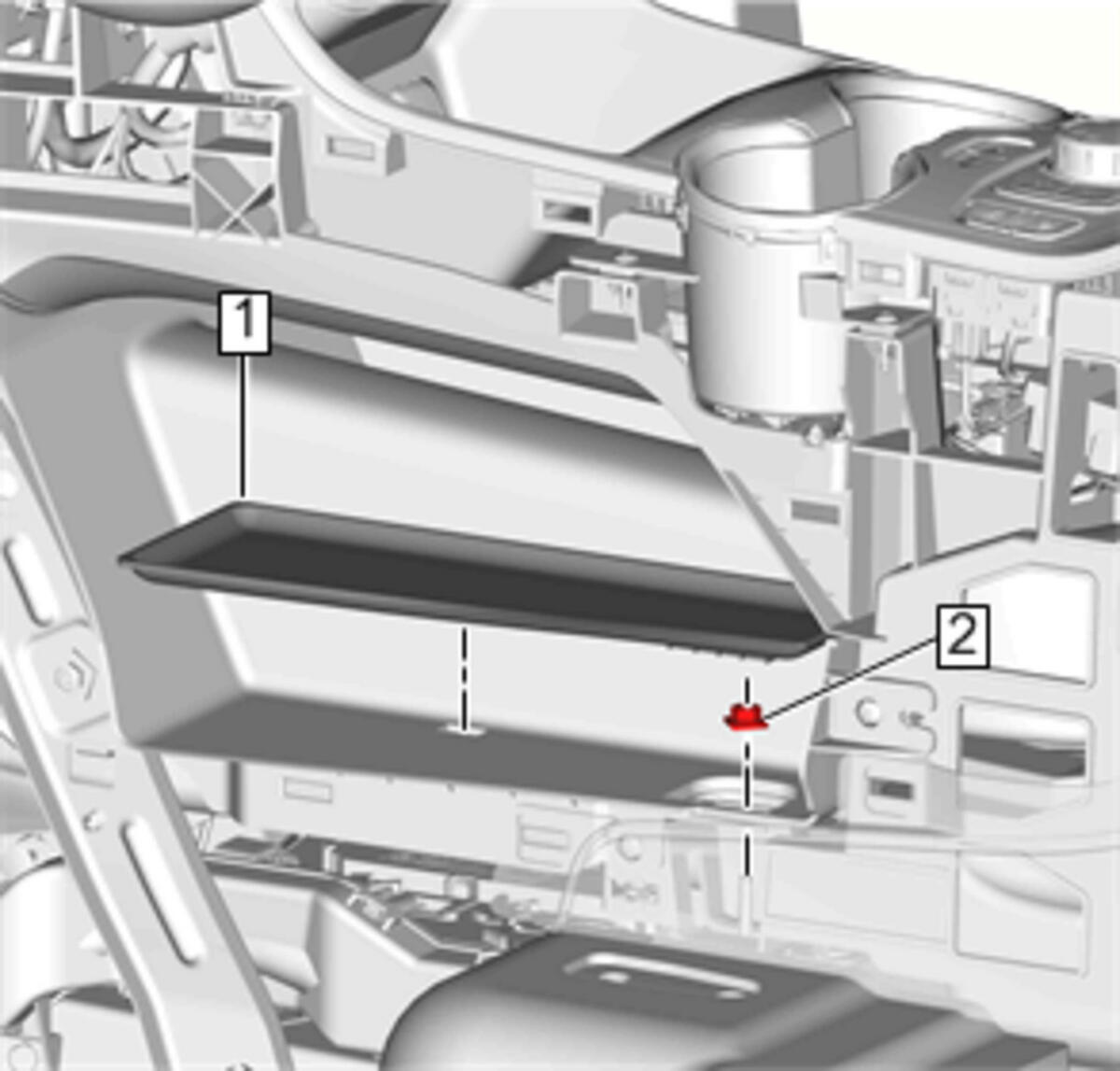

Front Floor Console Nut (2) - Install and tighten 7 N.m (62 lb in)
- Front Floor Side Stowage Compartment Liner (1) - Install
Front Floor Console Bolt (1) @ Instrument Panel - Install and tighten [2x] 2.5 N.m (22 lb in)
- Front Floor Console Retainer Bolt (2) @ Instrument Panel - Install and tighten 7 N.m (62 lb in)

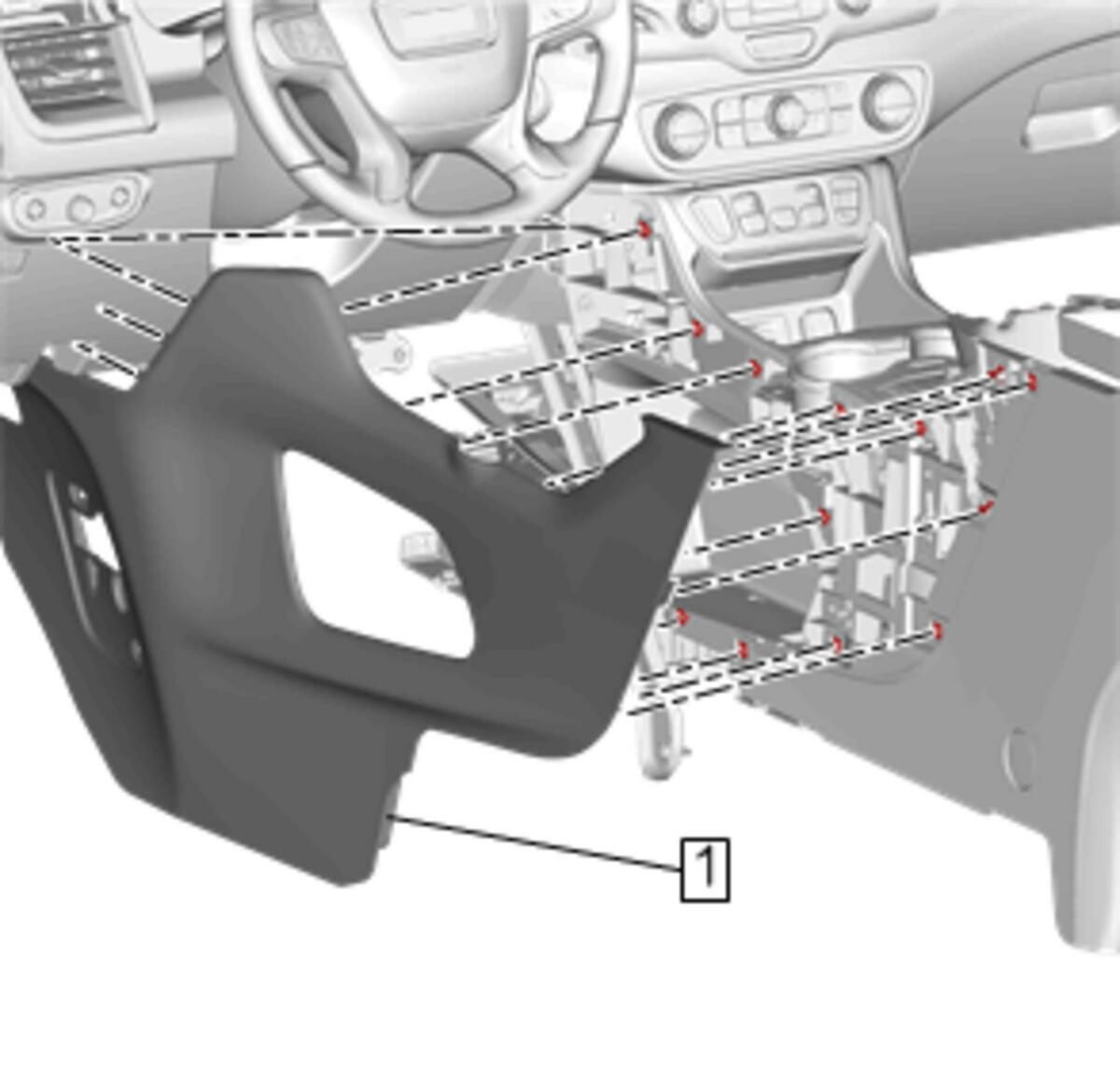

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Terrain)

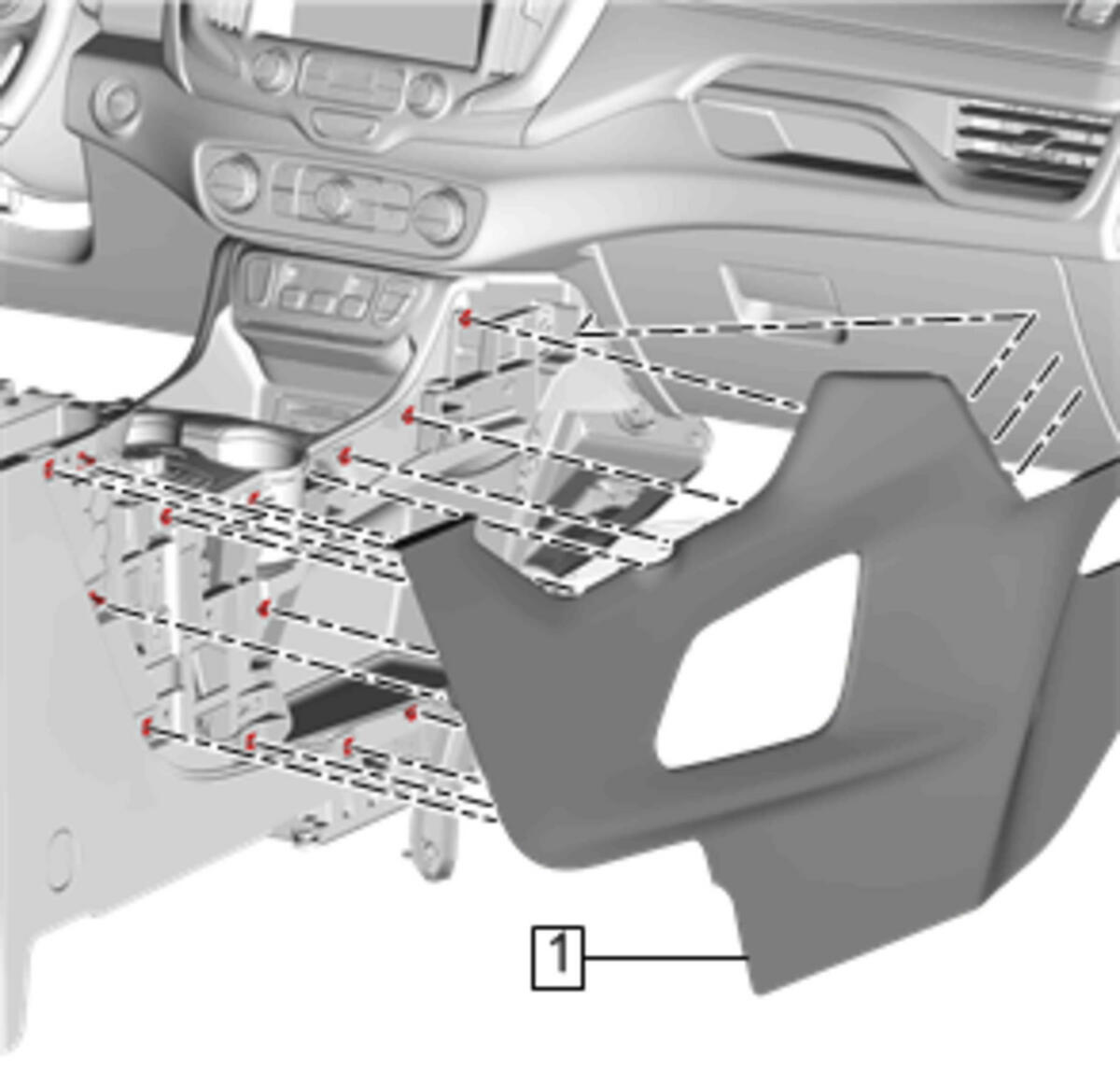

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Terrain)
Electronic Transmission Shift Control Pushbutton (2) - Install - Electronic Transmission Shift Control Pushbutton Replacement (Terrain)
