Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the console to the vehicle.(1)
Connect the electrical connectors.
Carefully install the front floor console assembly guide pins into the instrument panel assembly.
When installing the front floor console take care in seating the auxiliary air conditioning air outlet duct to the front floor console rear air duct
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

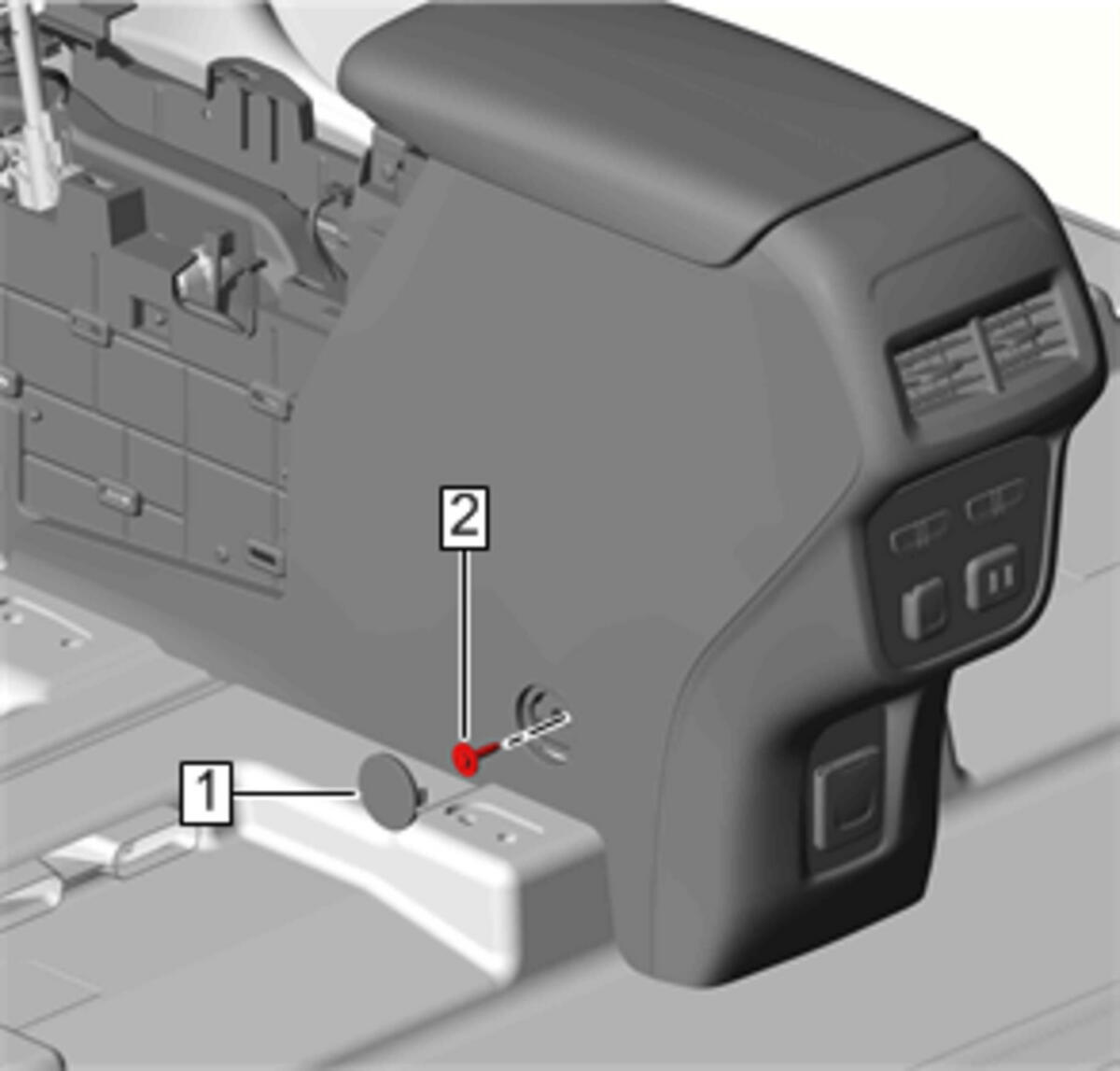

Front Floor Console Bolt (2) @ Front Floor Console Bracket - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

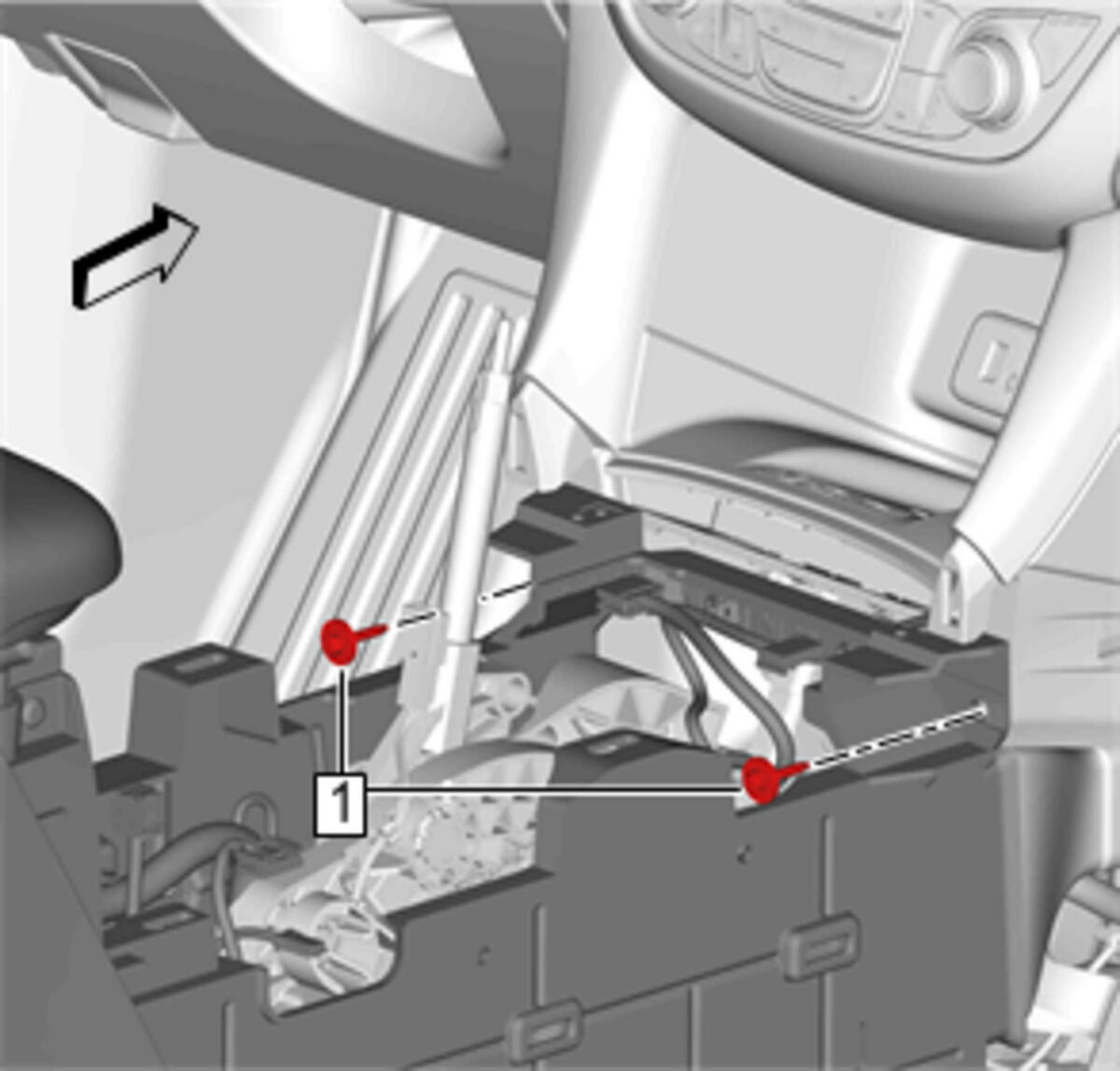

Front Floor Console Bolt (1) @ Automatic Transmission Control - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

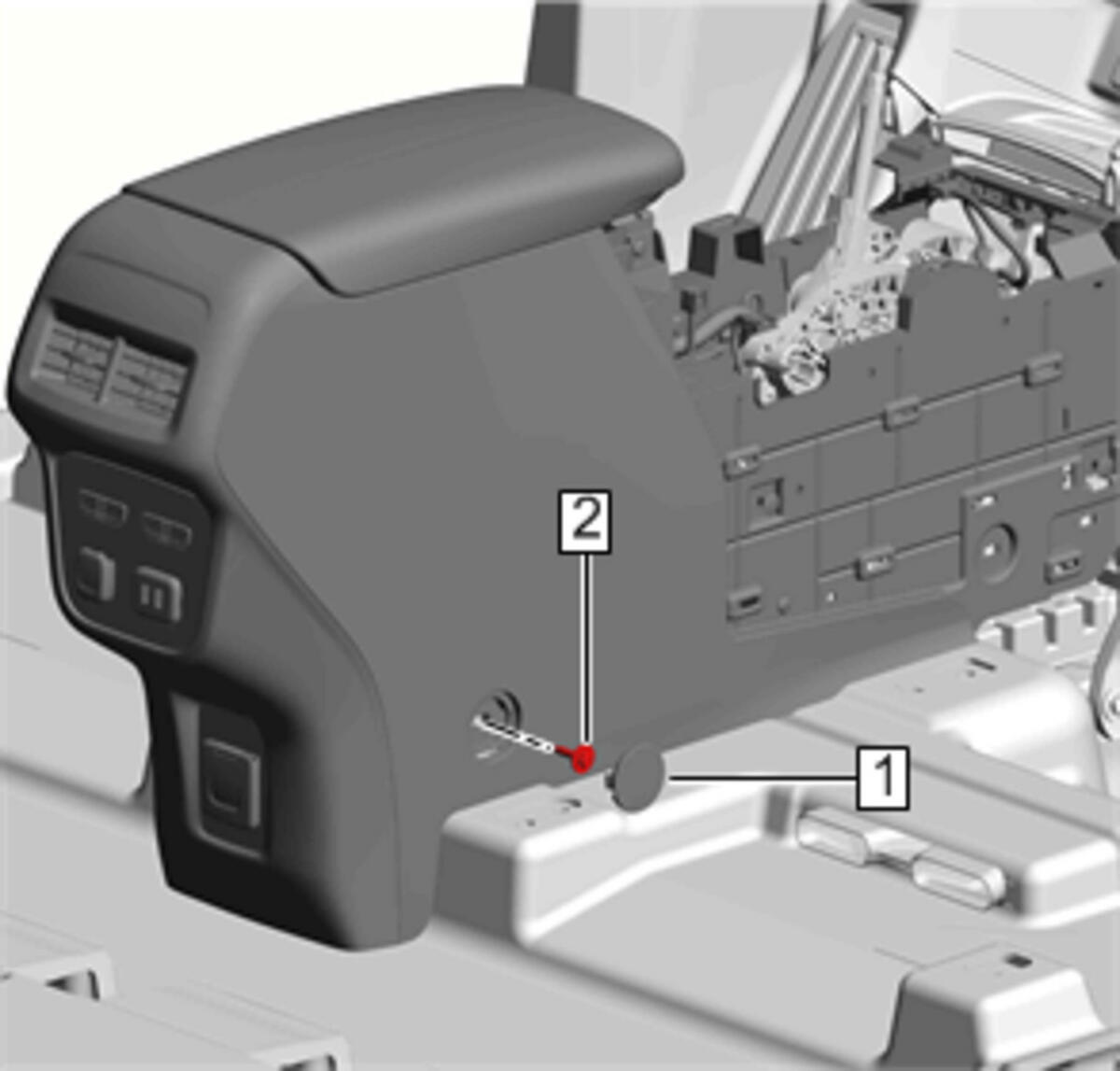

Front Floor Console Bolt (2) @ Front Floor Console Bracket - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

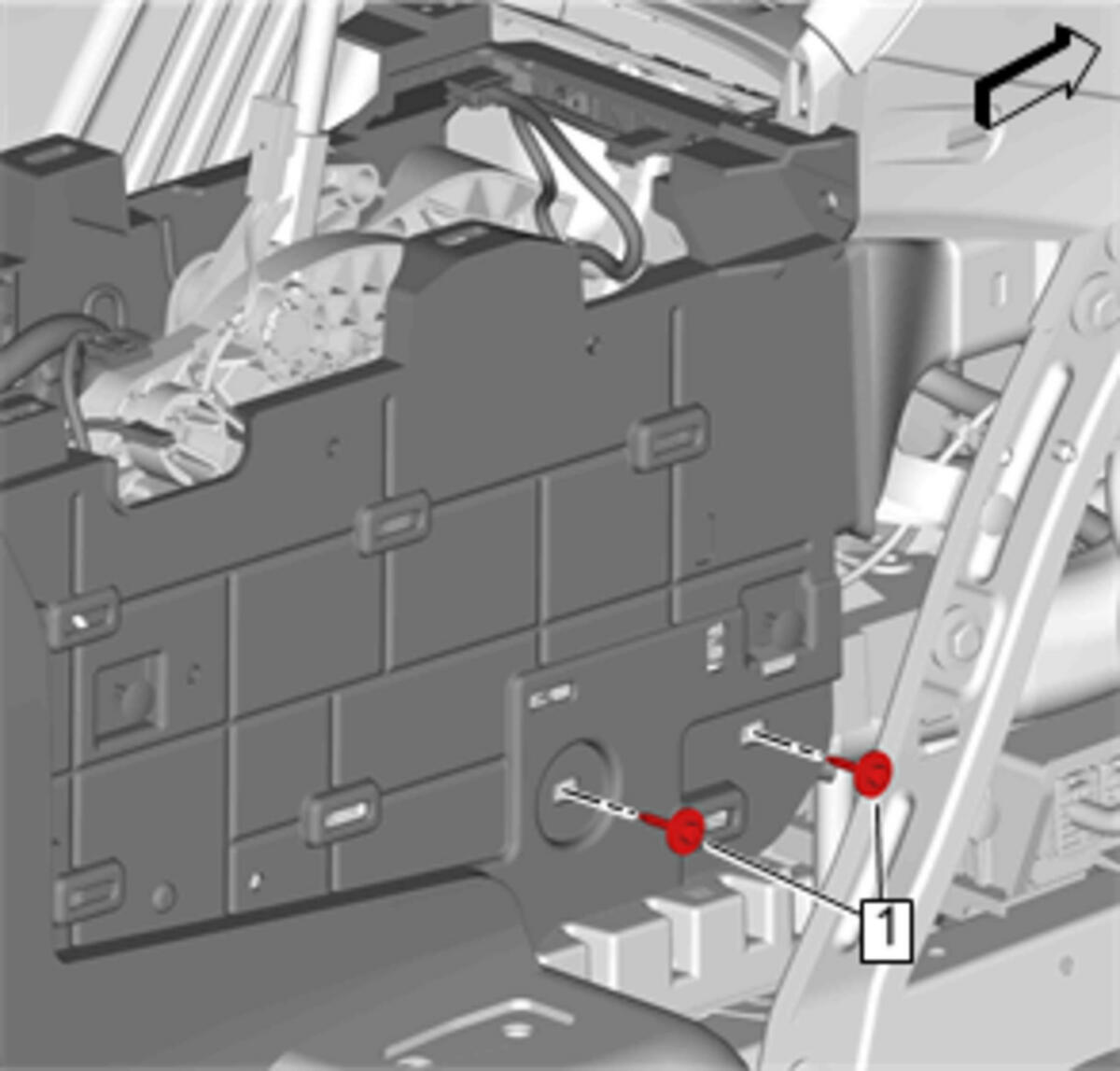

Front Floor Console Bolt (1) @ Automatic Transmission Control - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

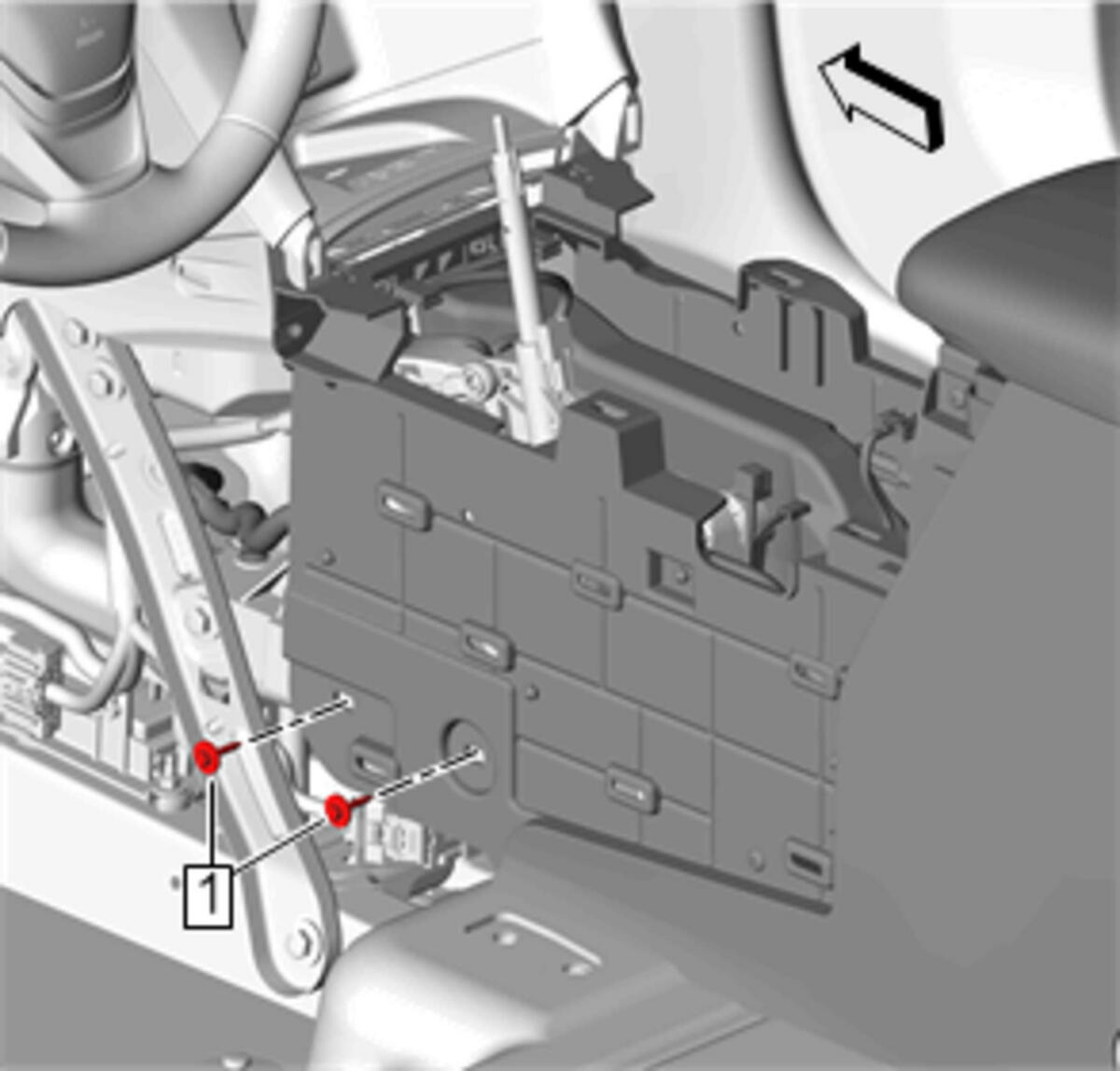

Front Floor Console Bolt (1) @ Instrument Panel - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Equinox)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Equinox)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install - Front Floor Console Applique Replacement (Equinox)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement (Equinox)
Courtesy of GENERAL MOTORS COMPANY

Install the driver and passenger seat (2). Front Seat Removal and Installation
