X420 Body Wiring Harness to Rear Body Structure Stop Lamp (Z88 & V9V)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

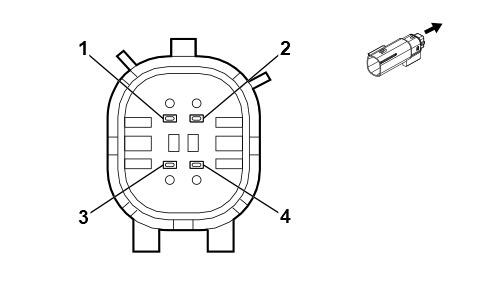

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13510889
- Service Connector: 19368970
- Description: 4-Way F 1.5 MX Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Rear Body Structure Stop Lamp
- OEM Connector: 33482-4002
- Service Connector: Service by Harness - See the appropriate Part Information
- Description: 4-Way M 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1950 |
I |
V9V |
Ground |
1 |
0.5 |
BK |
1950 |
II |
- |
| 2 |
0.5 |
VT |
1203 |
I |
V9V |
Right Park Lamp Control 2 |
2 |
0.5 |
VT |
1203 |
II |
- |
| 3 |
0.5 |
BN / GN |
19 |
I |
V9V |
Right Rear Stop/Turn Signal Lamp Control |
3 |
0.5 |
BN / GN |
19 |
II |
- |
| 4 |
0.5 |
YE / BK |
1967 |
I |
V9V |
Right Stop/Tail Lamp Feedback Signal |
4 |
0.5 |
YE / BK |
1967 |
II |
- |
