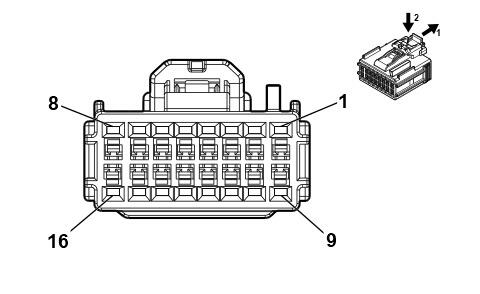

X403 Roof Wiring Harness to Body Wiring Harness
Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19371240 | J-35616-12 (BU) | J-38125-215A |
| II | 84726946 | J-35616-13 (BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | GN / BK | 3008 | I | - | Active Noise Cancellation Microphone 1 Feedback Signal | 1 | 0.35 | GN / BK | 3008 | II | - |
| 2 | 0.35 | GN / WH | 3005 | I | - | Active Noise Cancellation Microphone 1 Signal | 2 | 0.35 | GN / WH | 3005 | II | - |
| 3 | 0.35 | BU / BK | 3009 | I | - | Active Noise Cancellation Microphone 2 Feedback Signal | 3 | 0.35 | BU / BK | 3009 | II | - |
| 4 | 0.35 | BU / YE | 3006 | I | - | Active Noise Cancellation Microphone 2 Signal | 4 | 0.35 | BU / YE | 3006 | II | - |
| 5 | 0.35 0.35 0.35 |
GY / BN GY / BN GY / BN |
3010 3010 3010 |
I I I |
IOR UQA+(IOS/IOU) UZ6-IOR |
Active Noise Cancellation Microphone 3 Feedback Signal Active Noise Cancellation Microphone 3 Feedback Signal Active Noise Cancellation Microphone 3 Feedback Signal |
5 | 0.35 0.35 0.35 |
GY / BN GY / BN GY / BN |
3010 3010 3010 |
II II II |
IOR UQA+(IOS/IOU) UZ6-IOR |
| 6 | 0.35 | GY / BU | 3007 | I | - | Active Noise Cancellation Microphone 3 Signal | 6 | 0.35 | GY / BU | 3007 | II | - |
| 7 | 0.35 | WH / GN | 1776 | I | - | Active Noise Cancellation Microphone 4 Low Reference | 7 | 0.35 | WH / GN | 1776 | II | - |
| 8 | 0.35 | VT / BU | 1775 | I | - | Active Noise Cancellation Microphone 4 Signal | 8 | 0.35 | VT / BU | 1775 | II | - |
| 9 | 0.35 | GN | 2308 | I | - | Passenger Air Bag Off Indicator Control | 9 | 0.35 | GN | 2308 | II | - |
| 10 | 0.35 | GN / BK | 2515 | I | UE1 | Telematics Switch Supply Voltage | 10 | 0.35 | GN / BK | 2515 | II | UE1 |
| 11 | 0.35 | GN / WH | 2514 | I | UE1 | Telematics Switch Signal | 11 | 0.35 | GN / WH | 2514 | II | UE1 |
| 12 | 0.35 | YE / VT | 2516 | I | UE1 | Telematics Switch Green LED Indicator Control | 12 | 0.35 | YE / VT | 2516 | II | UE1 |
| 13 | 0.35 | BN / WH | 2517 | I | UE1 | Telematics Switch Red LED Indicator Control | 13 | 0.35 | BN / WH | 2517 | II | UE1 |
| 14 | 0.35 | WH / YE | 7557 | I | - | Interior Door Handle Accent Lighting Control | 14 | 0.35 | WH / YE | 7557 | II | - |
| 15 | 0.35 | BU | 2307 | I | - | Passenger Air Bag On Indicator Control | 15 | 0.35 | BU | 2307 | II | - |
| 16 | 0.35 | VT / WH | 5234 | I | - | Passenger Seat Belt Indicator Control | 16 | 0.35 | VT / WH | 5234 | II | - |
