X206 Antenna Wiring Harness to Instrument Panel Wiring Harness (IOR & U2Q)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

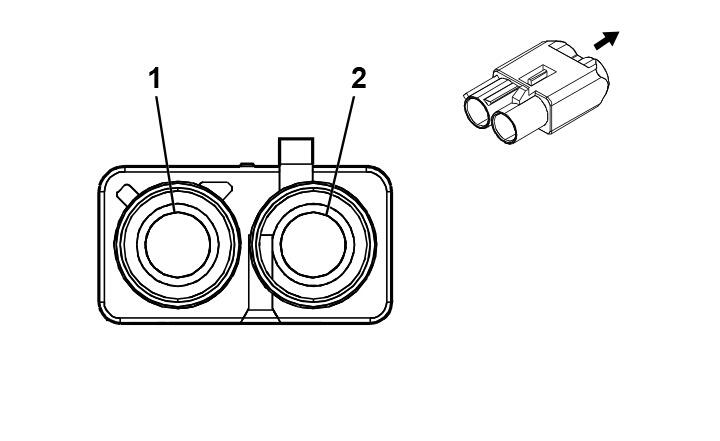

Connector Part Information
- Harness Type: Antenna Wiring Harness COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness COAX
- OEM Connector: 13515669
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
- |
- |
Not Occupied |
1 - 2 |
- |
- |
- |
- |
- |
| C1 |
0.1 |
WH |
6001 |
I |
IOR+U2Q |
Coaxial Antenna RF Signal |
C1 |
0.1 |
WH |
6001 |
II |
IOR+U2Q |
| C2 |
0.1 |
WH |
3297 |
I |
IOR+U2Q |
Coaxial Antenna DAB Signal |
C2 |
0.1 |
WH |
3297 |
II |
IOR+U2Q |
| S1 |
0.1 |
BARE |
6015 |
I |
IOR+U2Q |
Antenna RF Low Reference |
S1 |
0.1 |
BARE |
6015 |
II |
IOR+U2Q |
| S2 |
0.1 |
BARE |
3296 |
I |
IOR+U2Q |
DAB Antenna Coaxial Cable Low Reference |
S2 |
0.1 |
BARE |
3296 |
II |
IOR+U2Q |
