X205 Antenna Wiring Harness to Instrument Panel Wiring Harness (UE1 / UI3)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

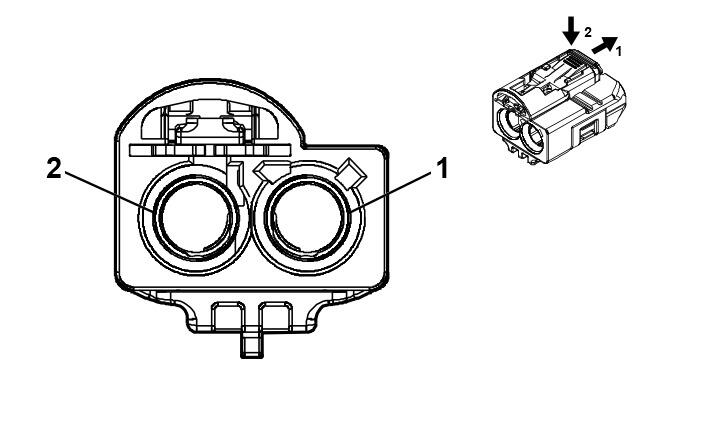

Connector Part Information
- Harness Type: Antenna Wiring Harness COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness COAX
- OEM Connector: 13516606
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (VT)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
(GPS/Cell) Coaxial Antenna Cell/GPS combined Signal |
- |
- |
Coax Cable |
- |
I |
- |
