Removal Procedure

  1. GM6074343Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder (1) - Remove - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module

  2. GM4578531Courtesy of GENERAL MOTORS COMPANY

    Heater Water Auxiliary Pump Hose (2) - Disconnect - Heater Water Auxiliary Pump Hose Replacement

  3. GM4577913Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose (2) - Disconnect - Heater Inlet Hose Replacement

  4. GM4597877Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Refrigerant Heat Exchanger (2) - Disconnect - Air Conditioning Refrigerant Heat Exchanger Replacement

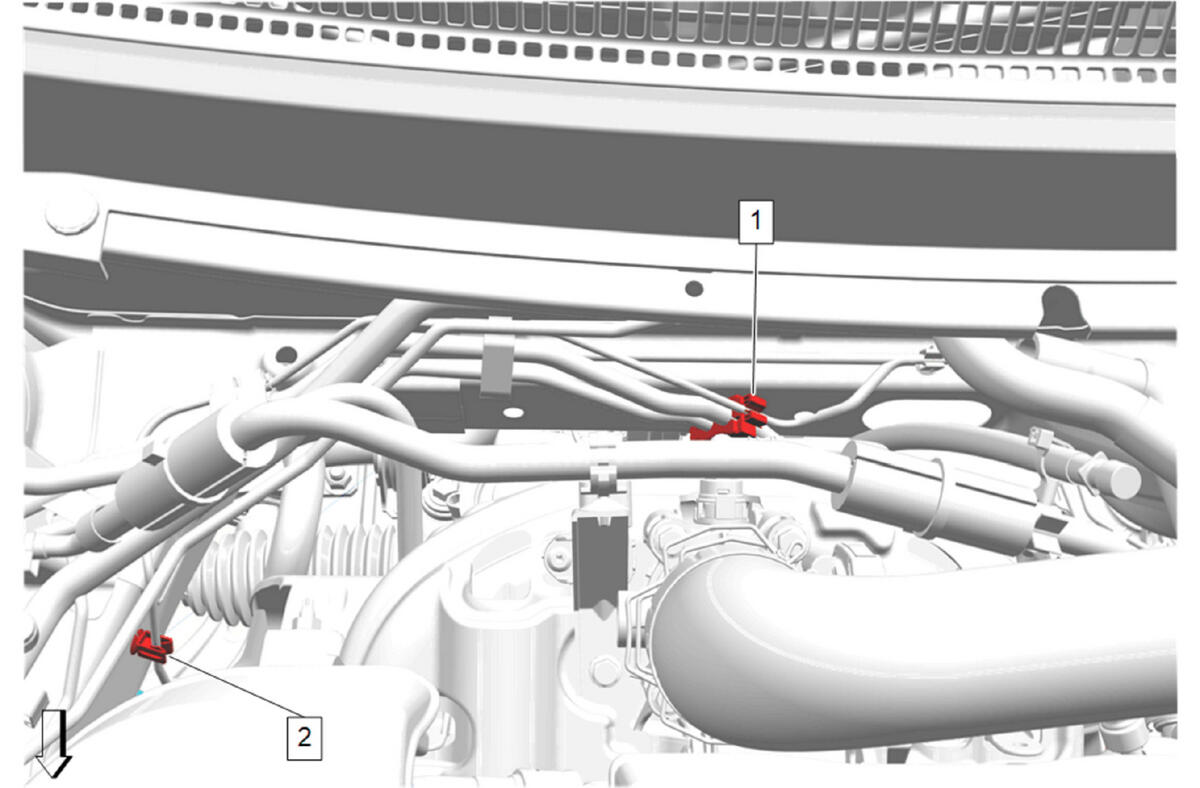

  5. GM6249298Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed and Evaporative Emission and Return Front Pipe Clip (1) - Remove

  6. Front Brake Pipe Clip (2) - Remove
  7. GM4602229Courtesy of GENERAL MOTORS COMPANY

    Dash Panel Outer Insulator Retainer (1) - Remove [4x]

  8. Dash Panel Outer Insulator Retainer Push In (2) - Remove
  9. Dash Panel Outer Insulator (3) - Remove
