Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal Position Sensor (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal Position Sensor Bolt (1) - Install and tighten [2x] - Accelerator Pedal Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bolt (1) - Install and tighten 22 N.m (16 lb ft)

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors and install the wiring harness retainers as necessary. (1)

Courtesy of GENERAL MOTORS COMPANY

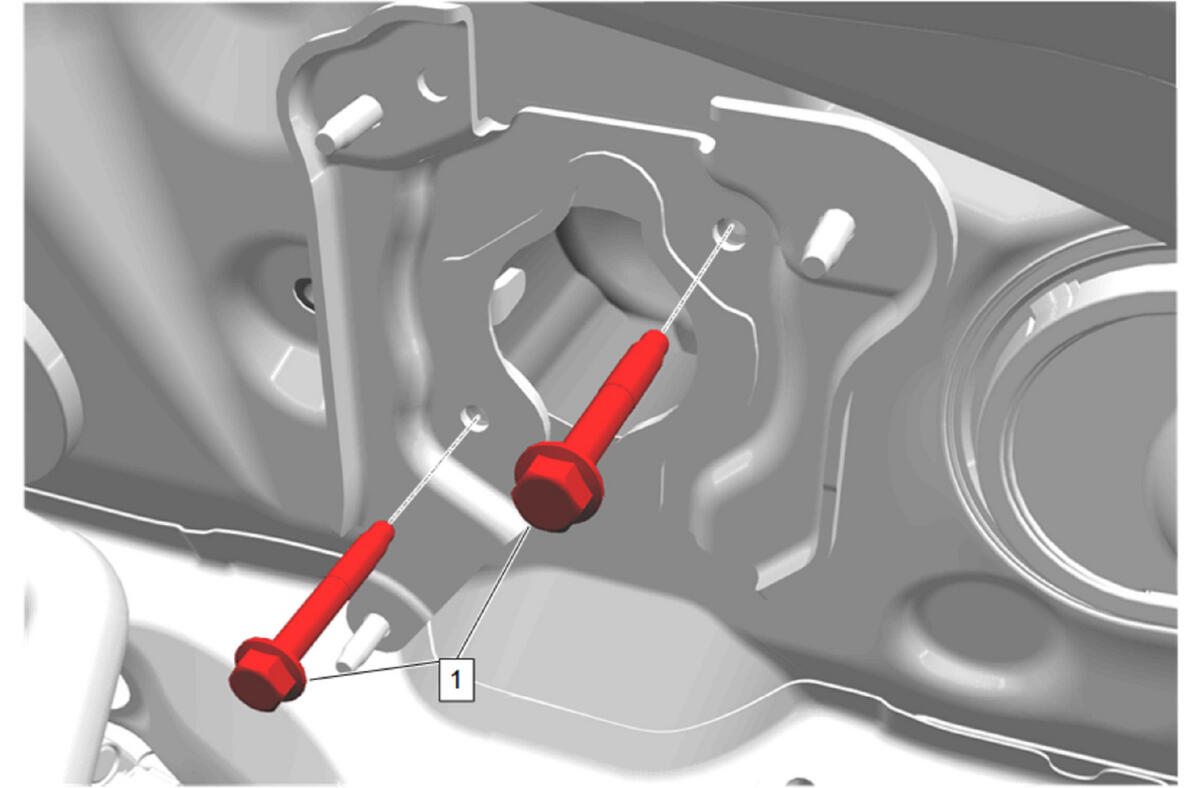

Brake Master Cylinder Bracket Bolt (1) - Install and tighten [2x] 24 N.m (18 lb ft)

Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Assembly (1) - Install - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module

Courtesy of GENERAL MOTORS COMPANY

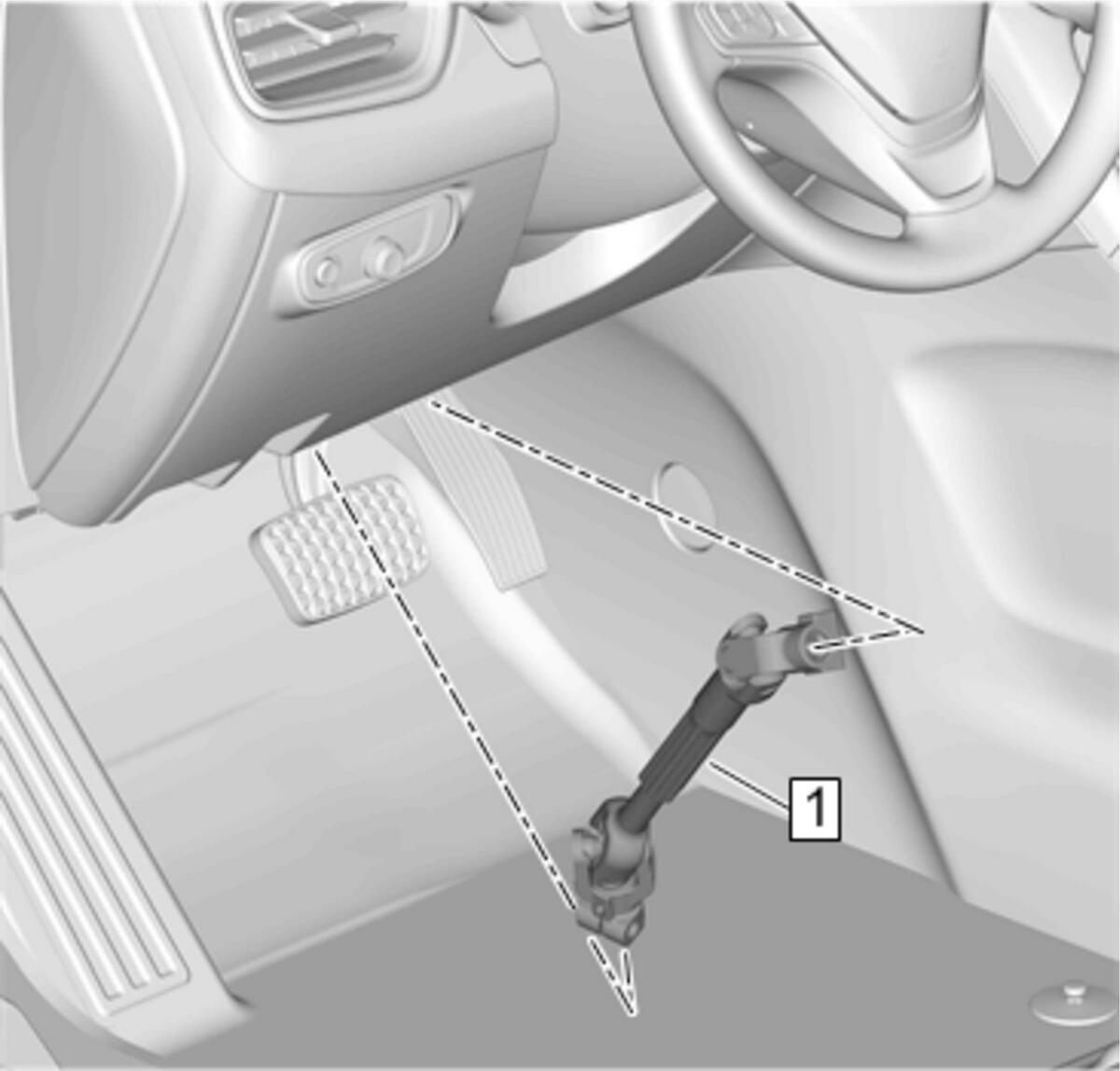

Intermediate Steering Shaft (1) - Install - Intermediate Steering Shaft Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Position Sensor (1) - Install - Brake Pedal Position Sensor Replacement
