Installation Procedure

  1. GM4730492Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel (1) to the instrument panel tie bar and the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).
  3. GM4730469Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Bolt (2) - Install and tighten [8x] 2.5 N.m (22 lb in)

  4. Connect the electrical connector.(1)
  5. GM4730414Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  6. GM4730401Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (2) - Install and tighten [3x] 2.5 N.m (22 lb in)

  7. Connect the electrical connector.(1)
  8. GM4730367Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (2) - Install and tighten [4x] 2.5 N.m (22 lb in)

  9. Connect the electrical connectors.(1)
  10. GM4730328Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  11. GM4730270Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

  12. GM4726911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Terrain)

  13. GM4726924Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Terrain)

  14. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement

  15. GM4703357Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install - Communication Interface Module Replacement (Terrain with IOS, IOT, IOU) , or Communication Interface Module Replacement (Terrain with IOR)

  16. GM4709960Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Terrain)

  17. GM4710565Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Terrain)

  18. GM4706052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Terrain)

  19. GM4565913Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Handle Replacement

  20. GM4717098Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Terrain without UV7) , or Instrument Panel Upper Trim Panel Replacement (Terrain with UV7)

  21. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Terrain)

  22. GM4695950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (GMC)

  23. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Terrain)

  24. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)

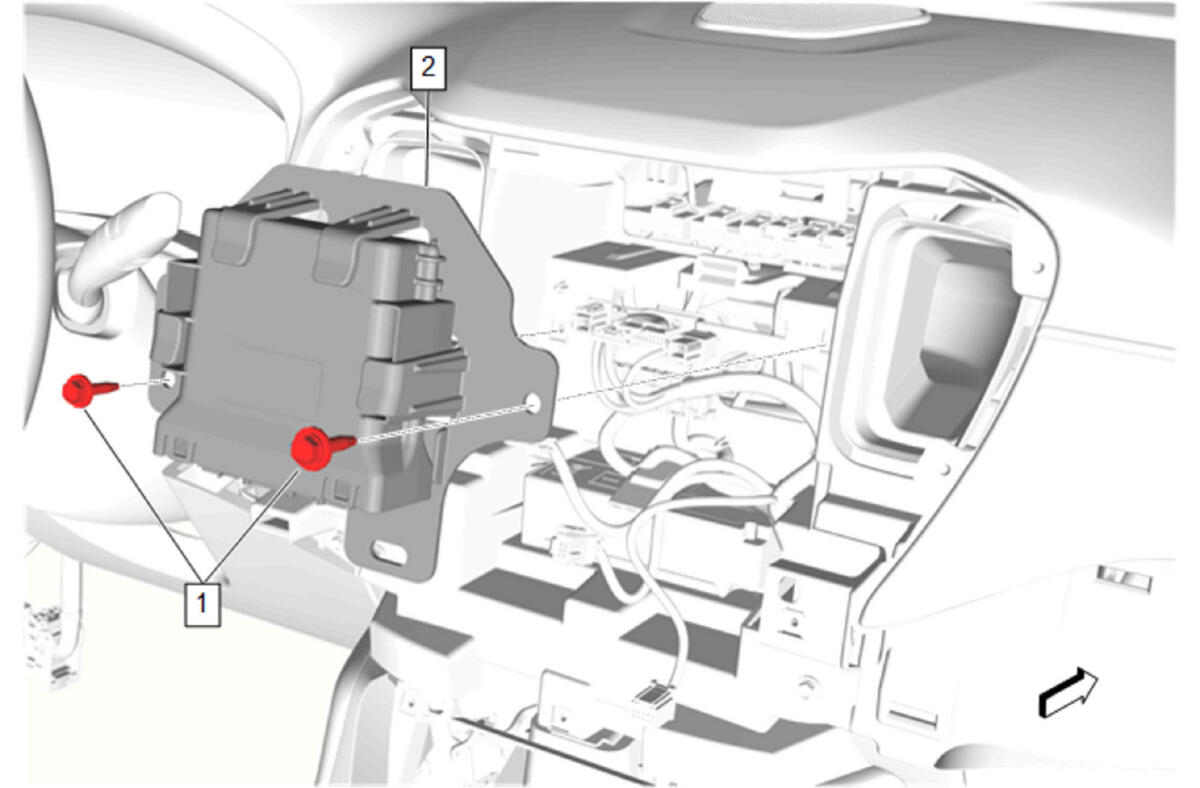

  25. GM5744844Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (2) - Install - Serial Data Gateway Module Replacement (Terrain)

  26. GM4702538Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Terrain)

  27. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  28. GM4692425Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel center trim plate applique (1, 2). Instrument Panel Center Trim Plate Applique Replacement (Terrain)

  29. GM4694926Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Terrain)

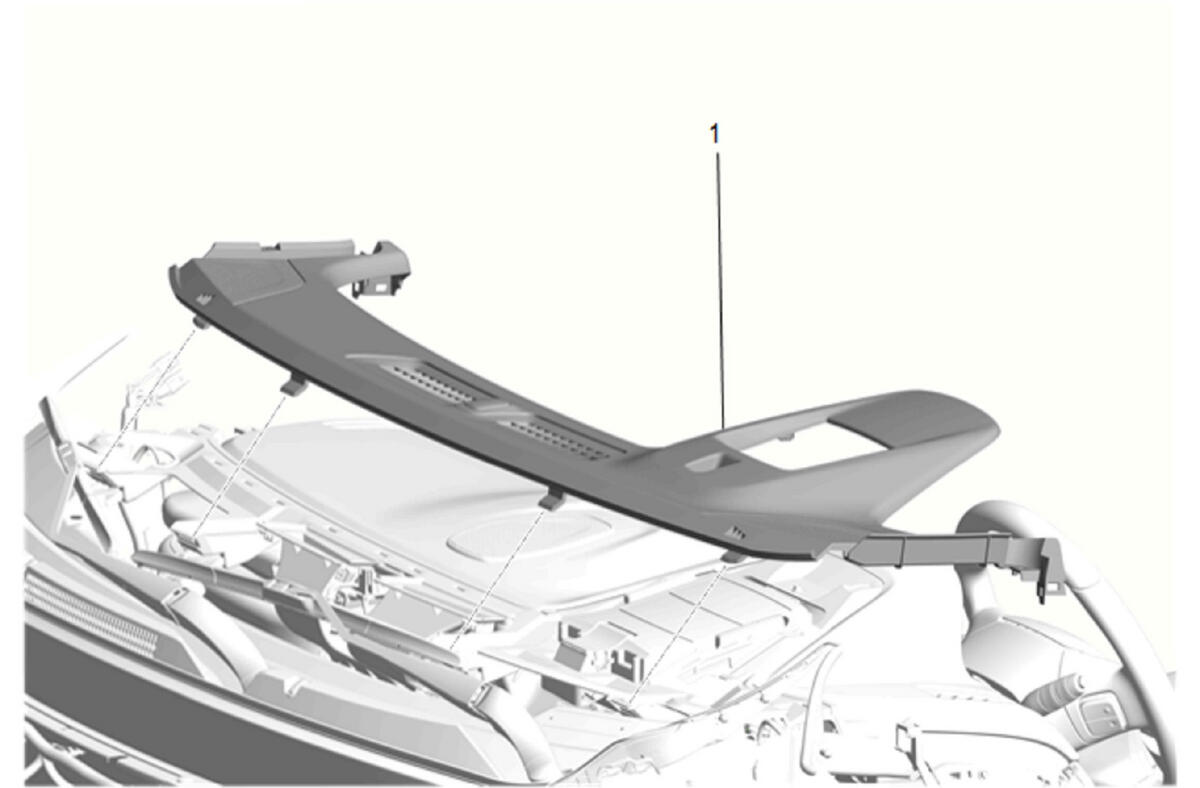

  30. GM5736513Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement (Terrain without UV7) , or Instrument Panel Extension Replacement (Terrain with UV7)

  31. GM4693123Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Terrain)

  32. GM4693192Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install - Radio Front Center Speaker Grille Replacement (Terrain)

  33. GM4694190Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Terrain)

  34. GM4748619Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right windshield garnish molding (1). Windshield Garnish Molding Replacement (Terrain)

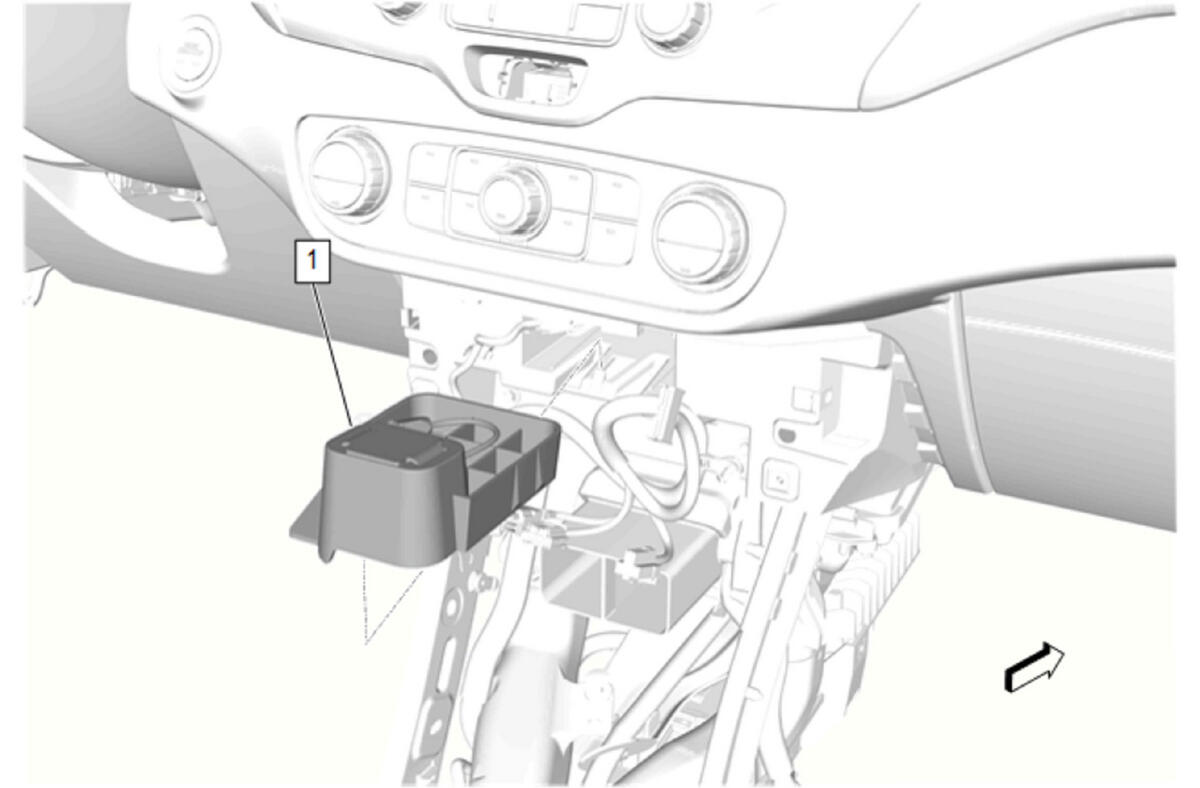

  35. GM5744820Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Wireless Communication Interface Antenna (1) - Install - Auxiliary Wireless Communication Interface Antenna Replacement (Terrain)

  36. GM4741732Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement (Terrain) , or Front Floor Console Replacement (Terrain 2022)
