Electric Drive Transmission (P79) (P80) (P8L) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Electric Drive Transmission Controls Wiring Schematics
>>

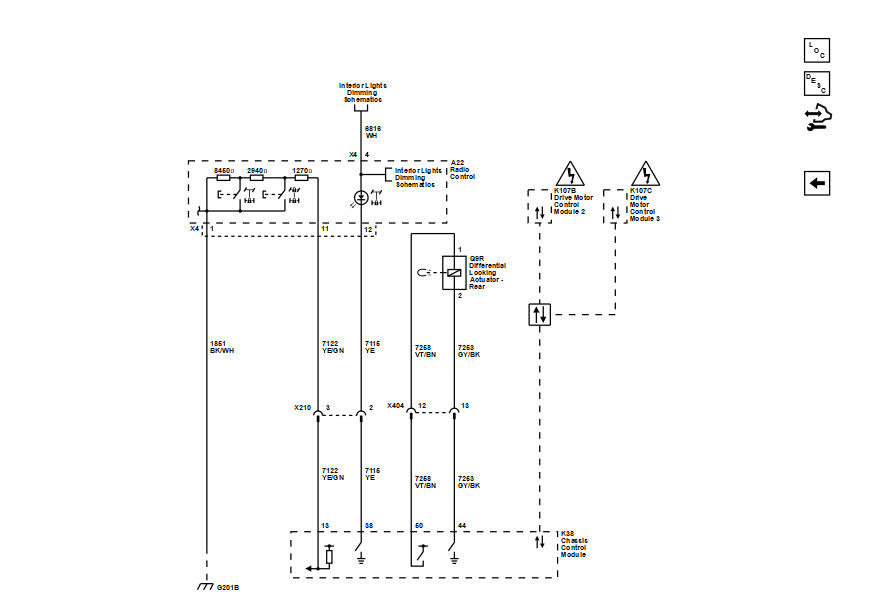

Electric Locking Differential - Rear (G94)
Electric Locking Differential - Rear (G94)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
