Fastener Specifications

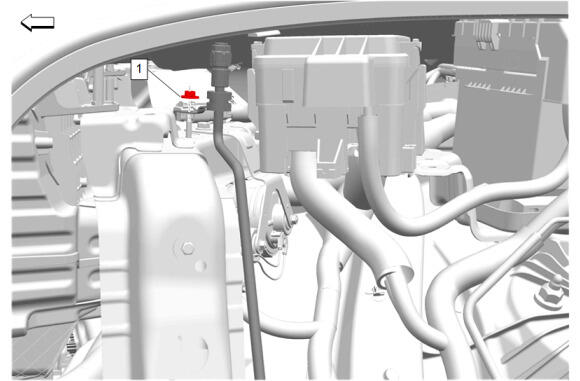

GM6070598Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Accumulator Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Accumulator Bracket Nut - - 9 N.m (80 lb in) Air Conditioning Accumulator Hose Replacement
GM5841563Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Accumulator Hose at Air Conditioning Condenser Check Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Tube Nut - - 22 N.m (16 lb ft) Air Conditioning Accumulator Hose Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Accumulator Hose Replacement
GM5844464Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Accumulator Hose at Air Conditioning Receiver and Dehydrator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Receiver and Dehydrator Tube Nut - - 22 N.m (16 lb ft) Air Conditioning Accumulator Hose Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Accumulator Hose Replacement
GM5920516Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Bolt - - 22 N.m (16 lb ft) Air Conditioning with Motor Compressor Replacement
2 Air Conditioning Compressor Nut - - 22 N.m (16 lb ft) Air Conditioning with Motor Compressor Replacement
GM5920464Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Ground Strap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Bolt - - 22 N.m (16 lb ft) Air Conditioning with Motor Compressor Replacement
GM5831500Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Ground Strap at Air Conditioning Upper Compressor Mount

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Bolt - - 22 N.m (16 lb ft) Air Conditioning with Motor Compressor Replacement
GM5841560Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Hose - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Compressor Hose Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Compressor Hose Replacement
GM5841558Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Hose - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Compressor Hose Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Compressor Hose Replacement
GM5844370Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser and Evaporator Hose - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser and Evaporator Hose Fitting Nut - - 22 N.m (16 lb ft) Air Conditioning Condenser and Evaporator Hose Replacement
2 Air Conditioning Compressor Hose Seal Yes - - Air Conditioning Condenser and Evaporator Hose Replacement
GM5844372Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser and Evaporator Hose at Air Conditioning with Motor Compressor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser and Evaporator Hose Fitting Nut - - 22 N.m (16 lb ft) Air Conditioning Condenser and Evaporator Hose Replacement
2 Air Conditioning Compressor Hose Seal Yes - - Air Conditioning Condenser and Evaporator Hose Replacement

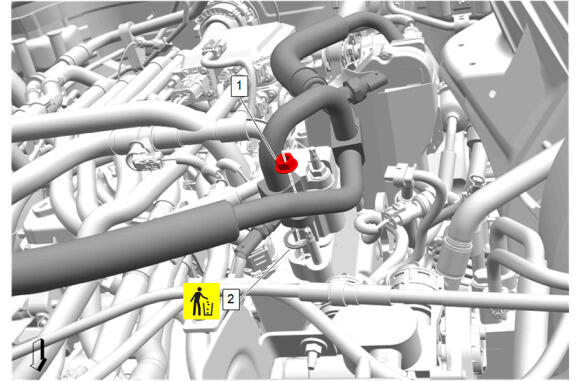

GM6139416Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser and Evaporator Hose at Drive Motor Battery Coolant Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser and Evaporator Hose Fitting Nut - - 22 N.m (16 lb ft) Air Conditioning Condenser and Evaporator Hose Replacement
2 Air Conditioning Compressor Hose Seal Yes - - Air Conditioning Condenser and Evaporator Hose Replacement
GM5841561Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Check Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Bolt - - 9 N.m (80 lb in) Air Conditioning Evaporator Check Valve Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Evaporator Check Valve Replacement

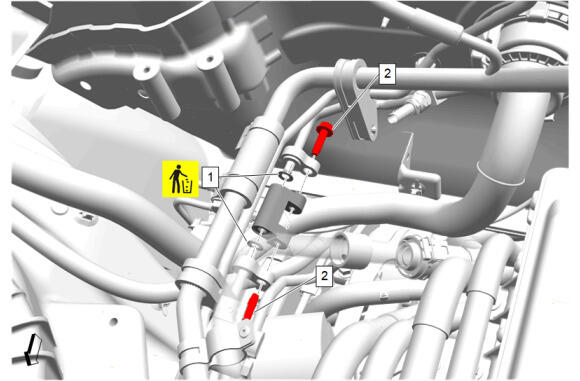

GM6148378Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Check Valve at the Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Check Valve Bolt [2x] - - 22 N.m (16 lb ft) Air Conditioning Evaporator Check Valve Replacement
2 Air Conditioning Evaporator Inlet Tube Seal [2x] Yes - - Air Conditioning Evaporator Check Valve Replacement
GM5841557Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Check Valve Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Check Valve Bolt - - 22 N.m (16 lb ft) Air Conditioning Condenser Check Valve Replacement
GM5842422Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Refrigerant Flow Valve - Lower

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] - - 9 N.m (80 lb in) Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower
2 Air Conditioning Condenser Refrigerant Flow Valve Bolt - - 9 N.m (80 lb in) Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower
3 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower
GM5842428Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Refrigerant Flow Valve - Upper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bolt - - 9 N.m (80 lb in) Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper
GM5835529Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolts - Upper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] - - 9 N.m (80 lb in) Air Conditioning Condenser Refrigerant Flow Valve Replacement - Upper
GM5842424Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Tube

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Tube Nut - - 22 N.m (16 lb ft) Air Conditioning Condenser Tube Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Condenser Tube Replacement
GM5844149Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Valve Hose at Air Conditioning Condenser

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor and Condenser Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Condenser Valve Hose Replacement
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Condenser Valve Hose Replacement
GM5841562Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Valve Hose at Air Conditioning Refrigerant Flow Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bolt - - 9 N.m (80 lb in) Air Conditioning Condenser Valve Hose Replacement
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Condenser Valve Hose Replacement
GM5842427Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt [2x] - - 9 N.m (80 lb in) Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement
2 Air Conditioning Evaporator Tube Bracket Nut - - 9 N.m (80 lb in) Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement
GM5842423Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Air Conditioning Condenser Refrigerant Flow Valve - Lower

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Refrigerant Flow Valve Bolt - - 9 N.m (80 lb in) Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Condenser Refrigerant Flow Valve Replacement - Lower
GM5844386Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Bulkhead

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor and Condenser Hose Clip Bracket Nut - - 9 N.m (80 lb in) Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement
GM5844085Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose at Bulkhead

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Hose Seal Yes - - Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement
2 Air Conditioning Evaporator Seal Yes - - Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
3 Air Conditioning Compressor and Condenser Hose Nut - - 9 N.m (80 lb in) Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose Replacement
GM5823877Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator and Blower Case Replacement - Evaporator Case And Upper Scroll

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [7x] - - 1.5 N.m (13 lb in) Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll
2 Heater and Blower Module Bolt [2x] - - 5 N.m (44 lb in) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
3 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [3x] - - 1.5 N.m (13 lb in) Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll
GM5869336Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator and Blower Case Replacement - Lower Blower Scroll

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [11x] - - 1.5 N.m (13 lb in) Air Conditioning Evaporator and Blower Case Replacement - Lower Blower Scroll
2 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [4x] - - 1.5 N.m (13 lb in) Air Conditioning Evaporator and Blower Case Replacement - Blower Service Access Panel
GM5823870Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [15x] - - 1.5 N.m (13 lb in) Air Conditioning Evaporator and Blower Case Replacement - Lower Case and Middle Scroll
GM5816545Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator Bracket Bolt [2x] - - 9 N.m (80 lb in) Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement

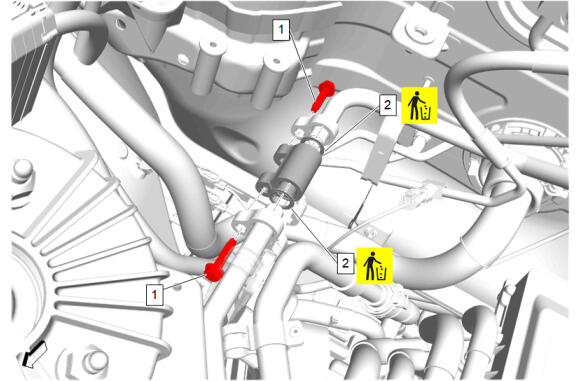

GM6142756Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Check Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Condenser Check Valve Bolt [2x] - - 22 N.m (16 lb ft) Air Conditioning Evaporator Check Valve Replacement
2 Air Conditioning Compressor Hose Seal [2x] Yes - - Air Conditioning Evaporator Check Valve Replacement
GM5844369Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Electronic Thermal Expansion Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator Electronic Expansion Valve Nut - - 22 N.m (16 lb ft) Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
2 Air Conditioning Evaporator Inlet Tube Seal Yes - - Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
3 Air Conditioning Compressor Hose Seal Yes - - Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
4 Air Conditioning Evaporator Thermal Expansion Valve Seal-Large Yes - - Air Conditioning Evaporator Electronic Expansion Valve Replacement
5 Air Conditioning Evaporator Thermal Expansion Valve Seal-Small Yes - - Air Conditioning Evaporator Electronic Expansion Valve Replacement
GM5842425Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Tube at Air Conditioning Evaporative Connector Hose/Tube and Compressor and Condenser Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Evaporator Tube Replacement
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Evaporator Tube Replacement
GM5844382Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Tube at Air Conditioning with Motor Compressor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Evaporator Tube Replacement
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Evaporator Tube Replacement
GM5844377Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Tube Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Evaporator Tube Replacement
GM5812834Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Receiver and Dehydrator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Receiver and Dehydrator Bracket Nut [3x] - - 22 N.m (16 lb ft) Air Conditioning Receiver and Dehydrator Replacement
GM5512177Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant High Pressure Service Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant High Pressure Service Valve - - 0.25 N.m (2.5 lb in) Air Conditioning Refrigerant High Pressure Service Valve Replacement
GM5512177Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Low Pressure Service Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Low Pressure Service Valve - - 0.25 N.m (2.5 lb in) Air Conditioning Refrigerant Low Pressure Service Valve Replacement
GM5813330Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Condenser and Evaporator Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Pressure and Temperature Sensor - - 11 N.m (97 lb in) Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Condenser and Evaporator Hose
GM5814052Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Evaporator Tube

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Pressure and Temperature Sensor - - 11 N.m (97 lb in) Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Evaporator Tube
GM5814065Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Pressure and Temperature Sensor at Air Conditioning Refrigerant Heat Exchanger

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Pressure and Temperature Sensor - - 11 N.m (97 lb in) Air Conditioning Refrigerant Pressure and Temperature Sensor Replacement - Air Conditioning Refrigerant Heat Exchanger
GM5816546Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Temperature Sensor - Air Conditioning

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Temperature Sensor - - 8.5 N.m (75 lb in) Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning
GM5816547Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Temperature Sensor - Heating

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Temperature Sensor - - 8.5 N.m (75 lb in) Air Conditioning Refrigerant Temperature Sensor Replacement - Heating
GM5813309Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Temperature Sensor at Air Conditioning Accumulator Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Temperature Sensor - - 8.5 N.m (75 lb in) Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning Accumulator Hose
GM5813319Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Temperature Sensor at Air Conditioning Condenser and Evaporator Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Temperature Sensor - - 8.5 N.m (75 lb in) Air Conditioning Refrigerant Temperature Sensor Replacement - Air Conditioning Condenser and Evaporator Hose
GM5823713Courtesy of GENERAL MOTORS COMPANY
Air Inlet Duct and Front Floor Duct

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Floor Front Air Outlet Duct Bolt [2x] - - 2.5 N.m (22 lb in) Floor Front Air Outlet Duct Replacement - Left Side
2 Air Inlet Duct Nut [2x] - - 6 N.m (53 lb in) Heater and Air Conditioning Evaporator and Blower Module Adapter Replacement
3 Air Inlet Duct Nut - - 9 N.m (80 lb in) Air Inlet Duct Replacement
4 Floor Front Air Outlet Duct Bolt [2x] - - 2.5 N.m (22 lb in) Floor Front Air Outlet Duct Replacement - Right Side
GM5823818Courtesy of GENERAL MOTORS COMPANY
Air Inlet Housing

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Inlet Housing Bolt [4x] - - 1.5 N.m (13 lb in) Air Inlet Housing Replacement
GM5823721Courtesy of GENERAL MOTORS COMPANY
Floor Rear Air Distributor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Rear Air Duct Bolt [3x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Air Rear Duct Replacement (GQH / GQI / GQO) , or Front Floor Console Rear Air Rear Duct Replacement (GQ2 / GQB / GQC)
2 Floor Rear Air Distributor Bracket Nut [2x] - - 9 N.m (80 lb in) Floor Rear Air Distributor Replacement
GM5844354Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe at Air Conditioning Receiver and Dehydrator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Receiver and Dehydrator Tube Nut [2x] - - 22 N.m (16 lb ft) Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
2 Air Conditioning Evaporator Inlet Tube Seal [2x] Yes - - Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe Replacement
GM5823837Courtesy of GENERAL MOTORS COMPANY
Heater Core Tube Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [4x] - - 1.5 N.m (13 lb in) Heater Core Replacement
GM6083560Courtesy of GENERAL MOTORS COMPANY

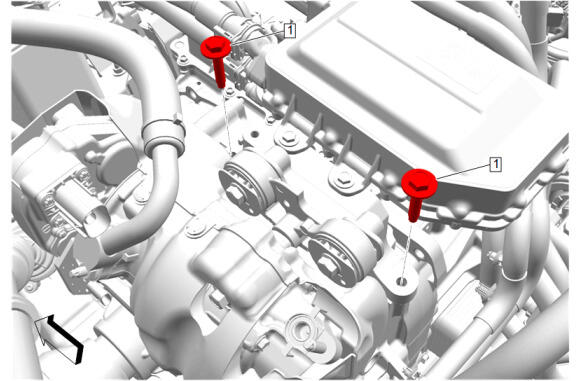

High Voltage Air Conditioning Compressor Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Air Conditioning Compressor Bracket Bolt [2x] - - 30 N.m (22 lb ft) Front Electric Drive Transmission Module Replacement (S80 with GQ2 or GQH) , or Front Electric Drive Transmission Module Replacement (S8L or (S80 with GQI/GQO/GQB/GQC))
GM5831499Courtesy of GENERAL MOTORS COMPANY
High Voltage Air Conditioning Compressor Lower Mount Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Air Conditioning Compressor Lower Mount Bolt - - 30 N.m (22 lb ft) Air Conditioning with Motor Compressor Replacement
GM5831493Courtesy of GENERAL MOTORS COMPANY
High Voltage Air Conditioning Compressor Mount Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Air Conditioning Compressor Mount Bolt [2x] - - 30 N.m (22 lb ft) Air Conditioning with Motor Compressor Replacement
GM5807914Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Air Outlet

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Center Air Outlet Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Center Air Outlet Replacement (GQH / GQI / GQO) , or Instrument Panel Center Air Outlet Replacement (GQ2 / GQB / GQC)
GM5812850Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Outer Air Outlet

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Center Air Outlet Bolt [6x] - - 2.5 N.m (22 lb in) Instrument Panel Outer Air Outlet Replacement - Left Side
Instrument Panel Outer Air Outlet Replacement - Right Side
2 Side Window Defogger Outlet Bolt - - 1.2 N.m (11 lb in) Instrument Panel Outer Air Outlet Replacement - Left Side
Instrument Panel Outer Air Outlet Replacement - Right Side
GM5823758Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Outer Air Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Outer Air Outlet Duct Bolt [6x] - - 2.5 N.m (22 lb in) Instrument Panel Outer Air Outlet Duct Replacement
2 Front Floor Console Auxiliary Cooling Duct Bolt - - 2.5 N.m (22 lb in) Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C)
3 Front Floor Console Auxiliary Cooling Duct Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Auxiliary Cooling Duct Replacement (K4C)
4 Front Floor Console Auxiliary Cooling Intermediate Duct Bolt - - 2.5 N.m (22 lb in) Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C)
scientia non olet · About LEMON Manuals
