Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Routing of the pipes may vary based on option content.

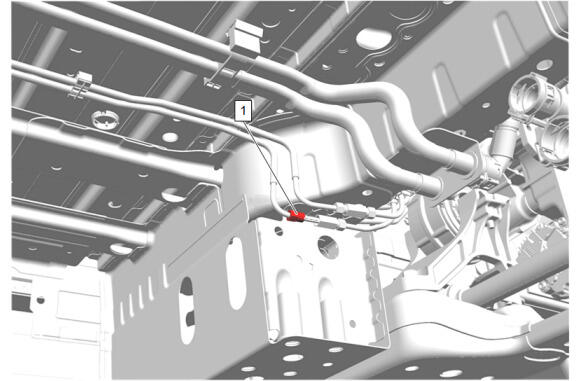

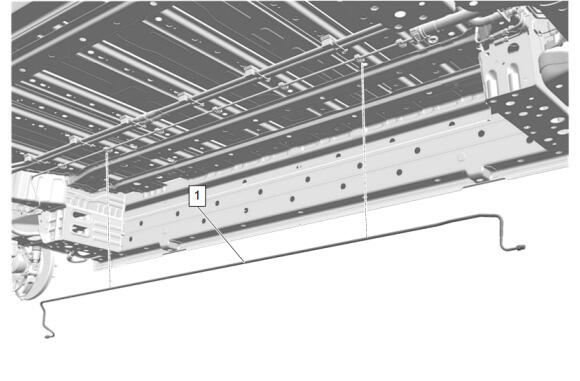

Brake Pipe - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

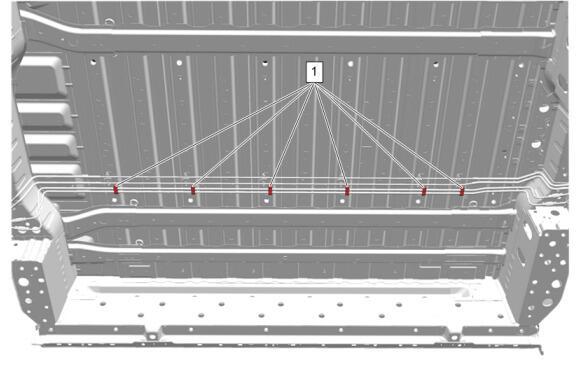

Rear Brake Front Pipe Clip (1) - Engage [6x]
Courtesy of GENERAL MOTORS COMPANY

Remove the plug from the rear brake pipe outlet.

CAUTION:

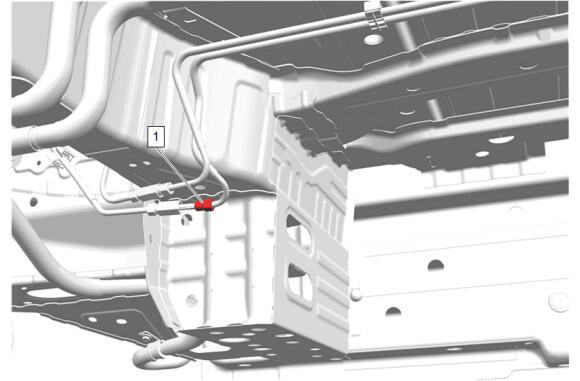

Rear Brake Rear Pipe Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Remove the plug from the front brake pipe outlet.
Rear Brake Rear Pipe Nut (1) - Install and tighten - Fastener Specifications
Hybrid/Electric Vehicle Battery Pack - Install - Hybrid/Electric Vehicle Battery Pack Removal and Installation (Pickup) , or Hybrid/Electric Vehicle Battery Pack Removal and Installation (SUV)
Enable the high voltage system. High Voltage Enabling
Bleed the brake system. Hydraulic Brake System Bleeding
Check for brake system leaks.
