Fastener Specifications

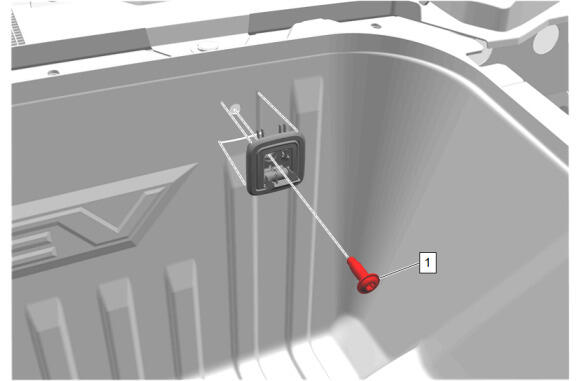

GM6126907Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop - Front

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt - Yes 10 N.m (89 lb in) Cargo Tie Down Loop Replacement - Front

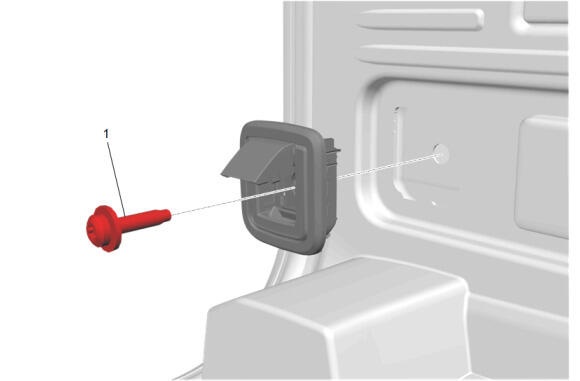

GM6125680Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop - Rear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt - Yes 10 N.m (89 lb in) Cargo Tie Down Loop Replacement - Rear (GQH / GQI / GQO)
GM5807616Courtesy of GENERAL MOTORS COMPANY
Center Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement

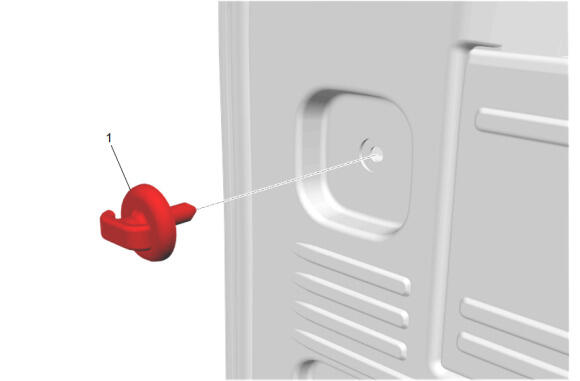

GM6117123Courtesy of GENERAL MOTORS COMPANY
Convenience Net Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Convenience Net Retainer - - 2 N.m (18 lb in) Convenience Net Retainer Replacement
GM5787369Courtesy of GENERAL MOTORS COMPANY
Front Compartment Housing

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Trim Finish Compartment Support Nut [2x] - - 9 N.m (80 lb in) Front Trim Finish Compartment Replacement
GM5774935Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement
GM6051400Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Pull Handle Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement
GM5766448Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement
GM5983285Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement

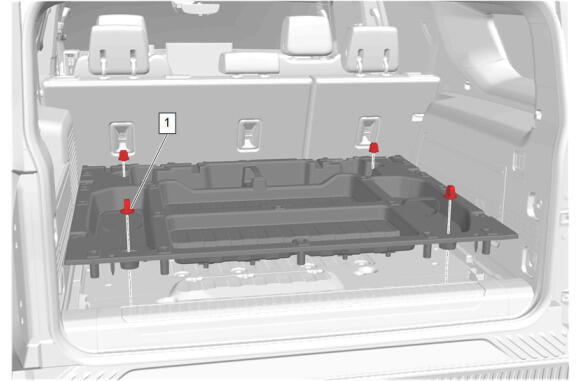

GM6125681Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Floor Stowage Compartment Divider

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Floor Stowage Compartment Divider Retainer [4x] - - 3.5 N.m (31 lb in) Rear Compartment Floor Stowage Compartment Divider Replacement (GQ2 / GQB / GQC)
GM6051401Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement
GM5795285Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement
GM5775432Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement
GM5795275Courtesy of GENERAL MOTORS COMPANY
Sunshade

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [3x] - - 2.5 N.m (22 lb in) Sunshade Replacement
GM5795266Courtesy of GENERAL MOTORS COMPANY
Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement
GM5833031Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Garnish Molding Replacement
GM5794616Courtesy of GENERAL MOTORS COMPANY
Windshield Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Pillar Assist Handle Replacement
