Fastener Specifications

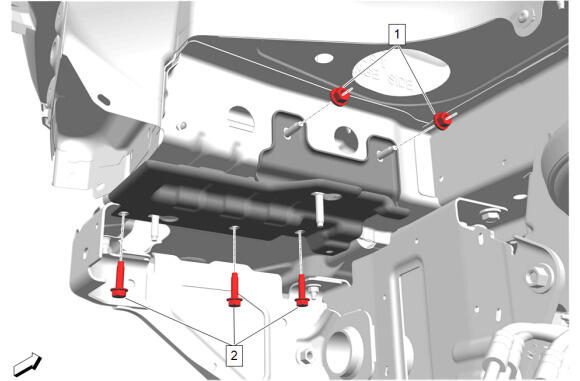

GM6215430Courtesy of GENERAL MOTORS COMPANY
Air Suspension Control Module Bracket - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Nut [2x] - - 22 N.m (16 lb ft) Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRJ) , or Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRL)
2 Trailer Hitch Platform Bolt [3x] - - 22 N.m (16 lb ft) Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRJ) , or Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRL)
GM5833020Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [16x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation
2 Front Bumper Fascia Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Upper Fascia Replacement
3 Front Bumper Fascia Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Bracket Replacement
4 Front Bumper Fascia Bolt [6x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Molding Replacement
5 Front Bumper Fascia Guide Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Guide Replacement
GM5833032Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Lower Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bolt [3x] - - 1.2 N.m (11 lb in) Front Bumper Fascia Lower Reinforcement Replacement
GM6046581Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Skid Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt - - 2.5 N.m (22 lb in) Front Bumper Fascia Skid Plate Replacement
GM5834292Courtesy of GENERAL MOTORS COMPANY
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt [8x] - - 100 N.m (74 lb ft) Front Bumper Impact Bar Replacement
GM5811452Courtesy of GENERAL MOTORS COMPANY
Front Bumper Lower Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Splash Shield Bolt [8x] - - 6 N.m (53 lb in) Front Bumper Lower Shutter Replacement
GM5833081Courtesy of GENERAL MOTORS COMPANY
Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [6x] - - 9 N.m (80 lb in) Front Bumper Shutter Replacement

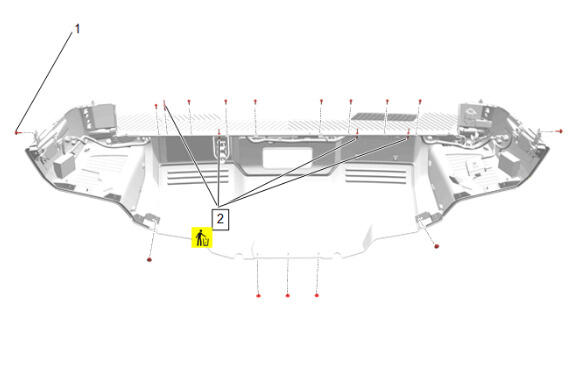

GM6127599Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt [14x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)
2 Rear Bumper Fascia Rivet Yes - - Rear Bumper Fascia Step Pad Replacement - Upper (GQ2 / GQB / GQC)
GM5834731Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia - GQH / GQI / GQO

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt [14x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO)

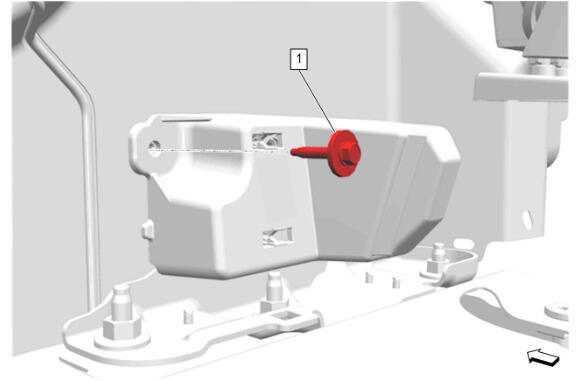

GM6196101Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Center Bracket - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt - - 2.5 N.m (22 lb in) Rear Bumper Fascia Center Bracket Replacement (GQ2 / GQB / GQC)

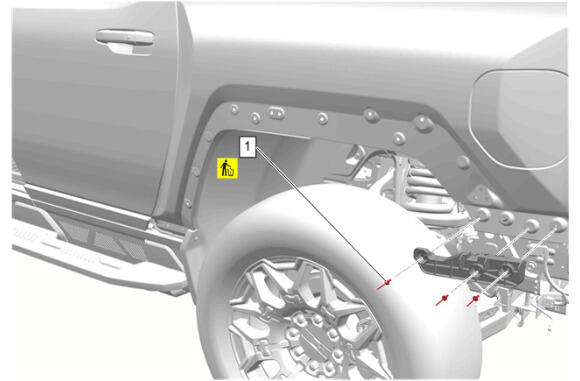

GM6133670Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [3x] Yes - - Rear Bumper Fascia Guide Replacement (GQ2 / GQB / GQC)
GM5834733Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide - GQH / GQI / GQO

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [4x] Yes - - Rear Bumper Fascia Guide Replacement (GQH / GQI / GQO)
GM5811467Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Tail Lamp Opening Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Tail Lamp Opening Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Tail Lamp Opening Bracket Replacement

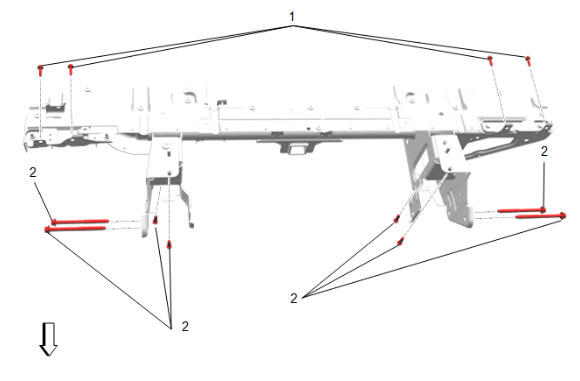

GM6133622Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar - GQ2 / GQB / GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Bolt - Upper
[4x]		 - - 22 N.m (16 lb ft) Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRJ) , or Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRL)
2 Trailer Hitch Platform Bolt [8x] - - 100 N.m (74 lb ft) Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRJ) , or Rear Bumper Impact Bar Replacement (GQ2 / GQB / GQC / XRL)
GM5834632Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar - GQH / GQI / GQO

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Bolt - Long
[4x]		 - - 160 N.m (118 lb ft) Rear Bumper Impact Bar Replacement (GQH / GQI / GQO)
2 Trailer Hitch Platform Bolt - Short [4x] - - 100 N.m (74 lb ft) Rear Bumper Impact Bar Replacement (GQH / GQI / GQO)
GM5991960Courtesy of GENERAL MOTORS COMPANY
Rear Tow Hook

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tow Hook Bolt [4x] - - 100 N.m (74 lb ft) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)
