Fastener Specifications

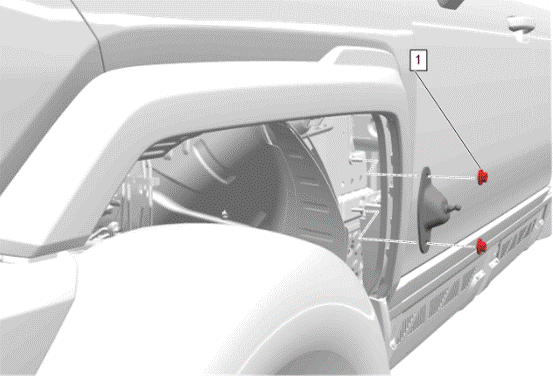

GM6745302Courtesy of GENERAL MOTORS COMPANY
Body Side Hood Strut Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Strut Bracket Nut [2x] - - 22 N.m (16 lb ft) Body Side Hood Strut Bracket Replacement
GM5830958Courtesy of GENERAL MOTORS COMPANY
Endgate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Latch Bolt [4x] - Yes 30 N.m (22 lb ft) Pickup Box Endgate Cable Replacement (GQH / GQI / GQO)
2 Pickup Box Endgate Access Hole Cover Panel Bolt [21x] - - 2.5 N.m (22 lb in) Pickup Box Endgate Access Hole Cover Panel Replacement (GQH / GQI / GQO)
Pickup Box Endgate Access Hole Cover Replacement - Auxiliary Endgate Step (GQH / GQI / GQO)
3 Pickup Box Endgate Dampener Nut - - 25 N.m (18 lb ft) Pickup Box Endgate Dampener Replacement (GQH / GQI / GQO)
GM5831487Courtesy of GENERAL MOTORS COMPANY
Endgate Hinge Body Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Endgate Hinge Bracket Bolt [4x] - - 40 N.m (30 lb ft) Pickup Box Endgate Body Side Hinge Replacement - Left Side (GQH / GQI / GQO)
Pickup Box Endgate Body Side Hinge Replacement - Right Side (GQH / GQI / GQO)
GM5831480Courtesy of GENERAL MOTORS COMPANY
Endgate Hinge and Torque Rod

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Hinge Bolt [12x] - - 22 N.m (16 lb ft) Pickup Box Endgate Closure Side Hinge Replacement - Left Side (GQH / GQI / GQO)
Pickup Box Endgate Closure Side Hinge Replacement - Right Side (GQH / GQI / GQO)
2 Pickup Box Endgate Torque Rod Bolt - - 58 N.m (43 lb ft) Pickup Box Endgate Torque Rod Replacement (GQH / GQI / GQO)
GM5831348Courtesy of GENERAL MOTORS COMPANY
Front Compartment, Hood

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Cross Panel Bolt [4x] - - 22 N.m (16 lb ft) Front End Sheet Metal Cross Brace Bracket Replacement
2 Hood Hinge Bolt [6x] - - 25 N.m (18 lb ft) Hood Hinge Replacement
3 Hood Hinge Nut [4x] - - 22 N.m (16 lb ft) Hood Replacement
GM5831897Courtesy of GENERAL MOTORS COMPANY
Front Fender

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Bolt [6x] - - 9 N.m (80 lb in) Front Fender Replacement
2 Front Fender Nut - - 9 N.m (80 lb in) Front Fender Replacement
GM5607862Courtesy of GENERAL MOTORS COMPANY
Front Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Check Link Bolt - - 22 N.m (16 lb ft) Front Side Door Check Link Replacement
2 Front Side Door Check Link Nut [2x] - - 9 N.m (80 lb in) Front Side Door Check Link Replacement
GM5600915Courtesy of GENERAL MOTORS COMPANY
Front Side Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement
2 Front Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement
GM5835725Courtesy of GENERAL MOTORS COMPANY
Front Suspension Strut Housing Brace

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Cross Brace Bolt [12x] - - 22 N.m (16 lb ft) Front Suspension Strut Housing Brace Replacement
GM5787370Courtesy of GENERAL MOTORS COMPANY
Front Trim Finish Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Trim Finish Compartment Bolt [12x] - - 9 N.m (80 lb in) Front Trim Finish Compartment Replacement
2 Cargo Tie Down Loop Bolt [4x] - - 15 N.m (11 lb ft) Cargo Tie Down Loop Replacement - Front
GM5831313Courtesy of GENERAL MOTORS COMPANY
Hood Latch Actuator, Latch, Mount Panel, Bracket Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [4x] - - 9 N.m (80 lb in) Hood Front Bumper Bracket Support Replacement
2 Hood Latch Actuator Nut [2x] - - 9 N.m (80 lb in) Front Stowage Compartment Latch Actuator Replacement
3 Hood Primary and Secondary Latch Bolt [2x] - - 22 N.m (16 lb ft) Hood Primary and Secondary Latch Replacement
4 Hood Primary Latch Mount Panel Bracket Bolt [4x] - - 9 N.m (80 lb in) Hood Primary Latch Mount Panel Bracket Replacement
5 Hood Primary Latch Support Bolt [4x] - - 9 N.m (80 lb in) Hood Primary Latch Support Replacement
GM5657084Courtesy of GENERAL MOTORS COMPANY
Pickup Box Auxiliary Endgate Step

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Auxiliary Endgate Hinge Bolt [10x] - - 9 N.m (80 lb in) Pickup Box Auxiliary Endgate Step Replacement (GQH / GQI / GQO)
2 Pickup Box Auxiliary Endgate Step Handle Nut - - 22 N.m (16 lb ft) Pickup Box Auxiliary Endgate Step Handle Replacement (GQH / GQI / GQO)
3 Pickup Box Auxiliary Endgate Step Handle Bolt [2x] - - 22 N.m (16 lb ft) Pickup Box Auxiliary Endgate Step Handle Replacement (GQH / GQI / GQO)
4 Pickup Box Endgate Hinge Bolt - Upper [4x] - - 9 N.m (80 lb in) Pickup Box Auxiliary Endgate Replacement - Upper (GQH / GQI / GQO)
GM6053657Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Center Closure Side Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Auxiliary Endgate Hinge Bolt [3x] - - 22 N.m (16 lb ft) Pickup Box Endgate Center Closure Side Hinge Replacement - Left Side (GQH / GQI / GQO)
Pickup Box Endgate Center Closure Side Hinge Replacement - Right Side (GQH / GQI / GQO)

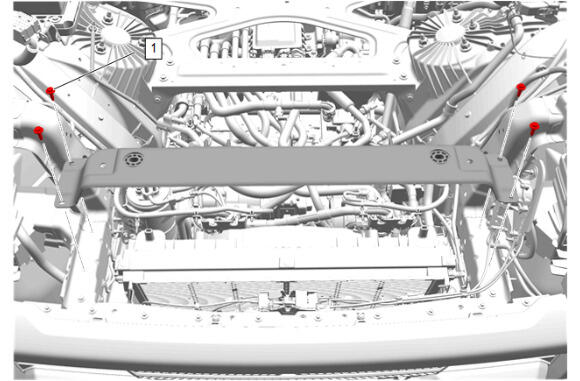

GM5835326Courtesy of GENERAL MOTORS COMPANY
Radiator Upper Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Support Bolt [4x] - - 9 N.m (80 lb in) Radiator Upper Support Replacement

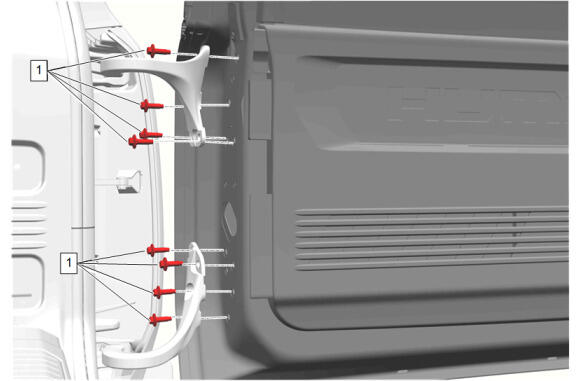

GM6145228Courtesy of GENERAL MOTORS COMPANY
Rear Door

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Hinge Bolt [8x] - - 22 N.m (16 lb ft) Rear Door Replacement (GQ2 / GQB / GQC)

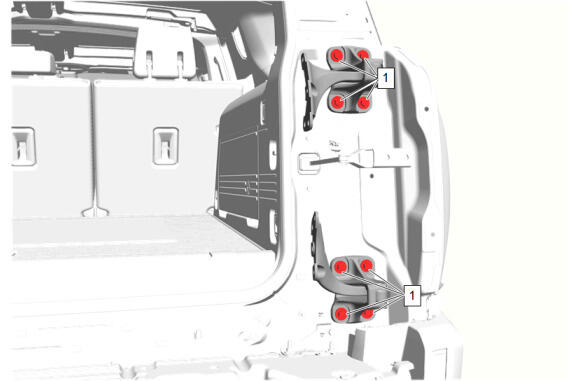

GM6153932Courtesy of GENERAL MOTORS COMPANY
Rear Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Hinge Bolt [8x] - - 58 N.m (42 lb ft) Rear Door Upper Hinge Replacement (GQ2 / GQB / GQC)
Rear Door Lower Hinge Replacement (GQ2 / GQB / GQC)

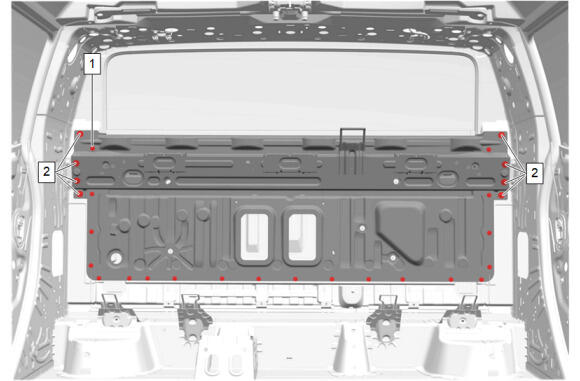

GM6622776Courtesy of GENERAL MOTORS COMPANY
Rear End Panel Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Panel Bolt [20x] - - 9 N.m (80 lb in) Rear End Panel Reinforcement Replacement (GQH / GQI / GQO)
2 Rear Compartment Panel Bolt [8x] - - 22 N.m (16 lb ft) Rear End Panel Reinforcement Replacement (GQH / GQI / GQO)
GM5840079Courtesy of GENERAL MOTORS COMPANY
Rear Floor Panel Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Load Floor Rear Compartment Bolt [4x] - - 9 N.m (80 lb in) Rear Floor Panel Opening Cover Replacement - Pickup Box (GQH / GQI / GQO)
GM5605274Courtesy of GENERAL MOTORS COMPANY
Rear Side Door

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
2 Rear Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
GM5607864Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Check Link Bolt - - 22 N.m (16 lb ft) Rear Side Door Check Link Replacement
2 Rear Side Door Check Link Door Side Nut [2x] - - 9 N.m (80 lb in) Rear Side Door Check Link Replacement
