Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Upper Center Trim Finish Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Upper Side Trim Finish Panel - Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Lower Trim Finish Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

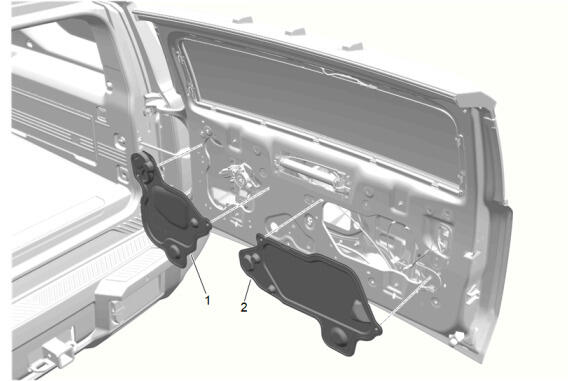

Rear Door Water Deflector (1) - Remove
Remove retainers as necessary.
Disconnect the electrical connector.
Route the auxiliary liftgate latch release cable through the hole in the rear door water deflector (2) while removing it from the rear door.
Rear Door Water Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

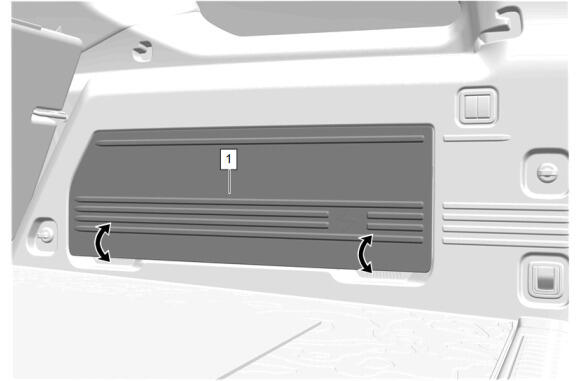

Quarter Trim Panel Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

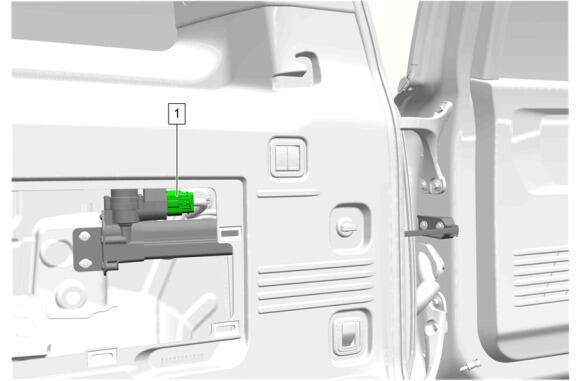

Disconnect the electrical connector (1) from the rear door power assist actuator.
Courtesy of GENERAL MOTORS COMPANY

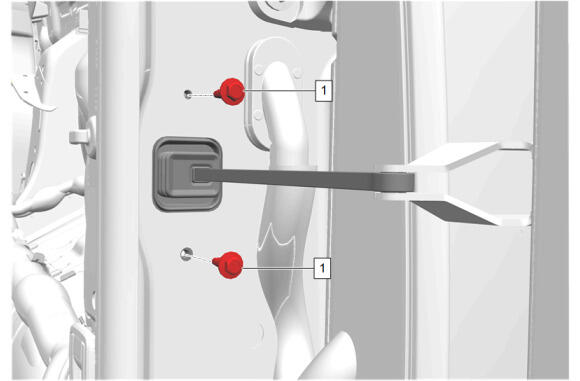

Rear Door Power Assist Actuator Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

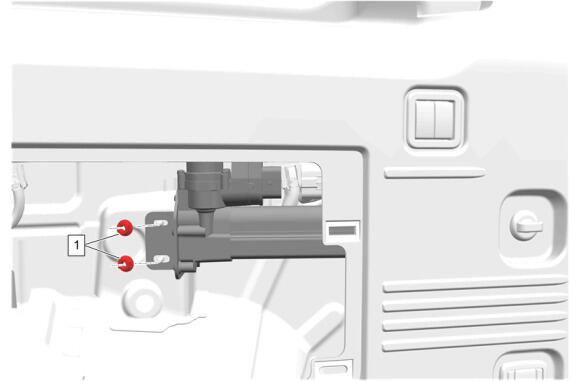

Rear Door Power Assist Actuator Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Door Power Assist Actuator Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Door Power Assist Actuator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

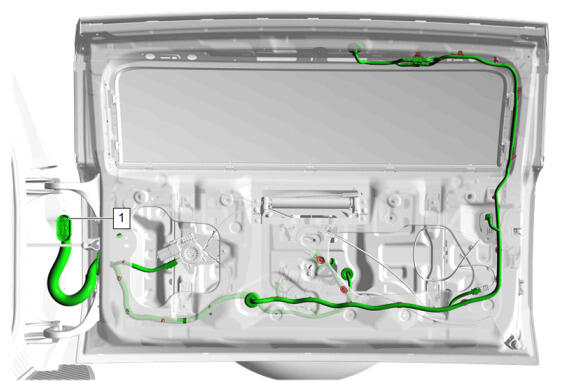

NOTE:
Typical wiring harness shown, individual harness may be different due to option content.

Rear Door Wiring Harness (1) - Remove
