Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

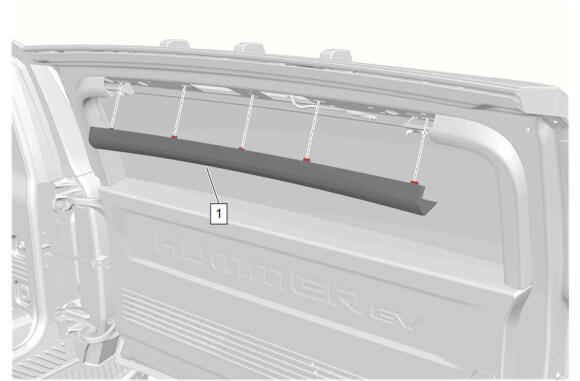

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Upper Center Trim Finish Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

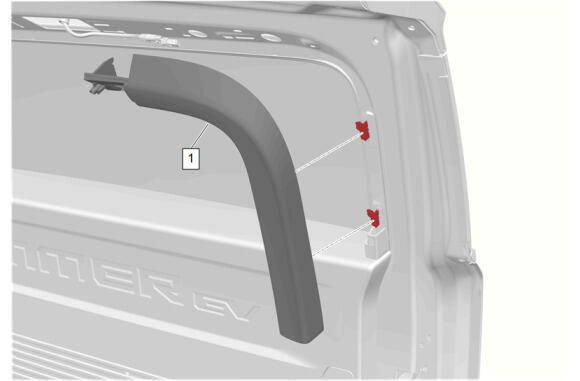

NOTE:
Left side shown, right side similar.

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Upper Side Trim Finish Panel - Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

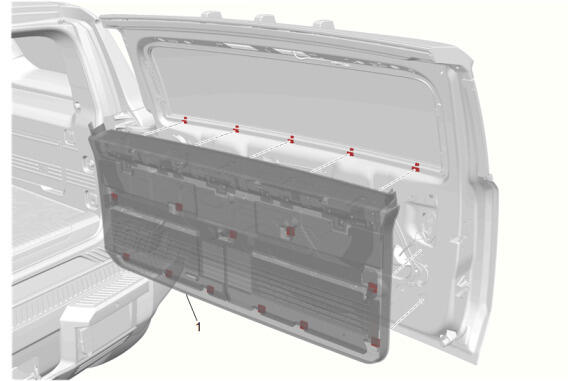

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Door Lower Trim Finish Panel (1) - Remove
Open the endgate window.
Courtesy of GENERAL MOTORS COMPANY

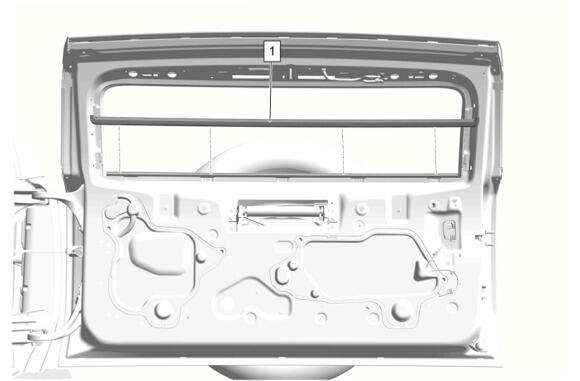

Using the appropriate tool, lift up on the rear window weatherstrip (1) to remove.
Courtesy of GENERAL MOTORS COMPANY

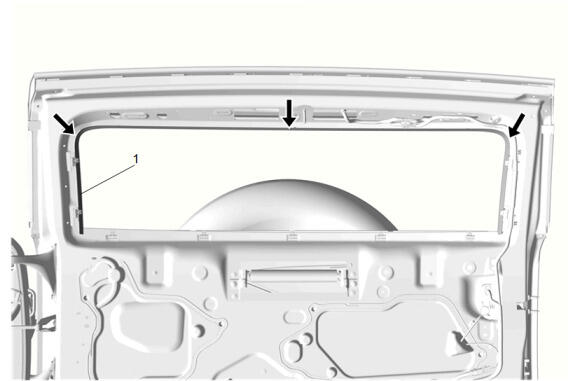

Starting in the middle, pull the rear door weatherstrip (1) down to release from the pinch weld flange around the window opening.
Courtesy of GENERAL MOTORS COMPANY

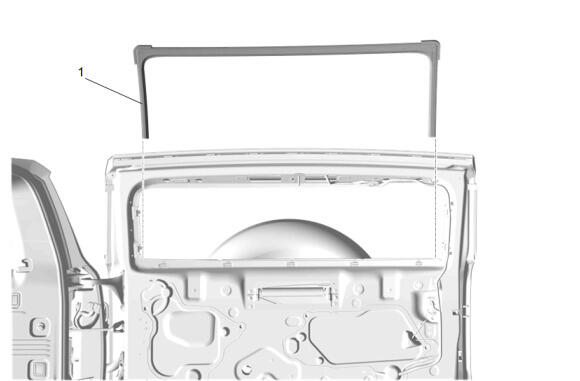

Rear Door Weatherstrip (1) - Remove
