Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

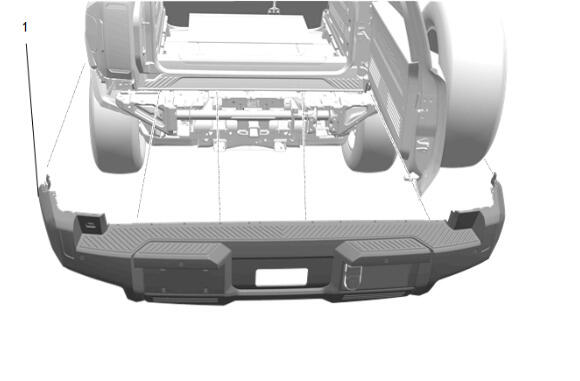

Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Release the retainers with a suitable plastic trim tool.
Back Body Opening Upper Molding - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

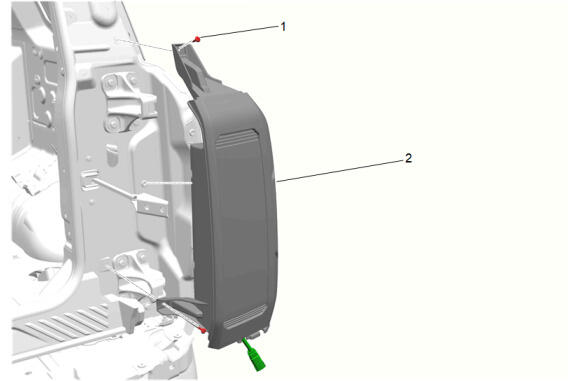

Disconnect the electrical connector.
Rear Body Structure Stop Lamp Bolt (1) - Remove [2x]
Rear Body Structure Stop Lamp (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

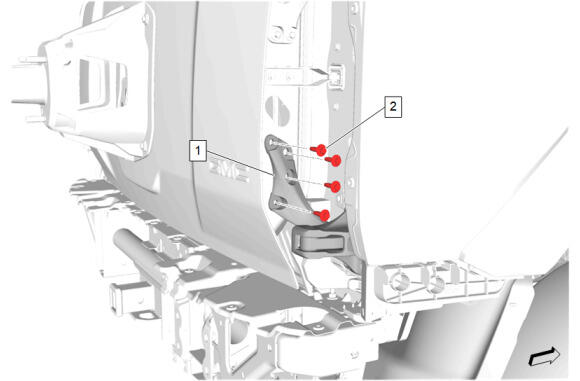

Mark the location of the rear door lower hinge (1) with a grease pencil to aid in alignment during installation.
Rear Door Hinge Bolt (2) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

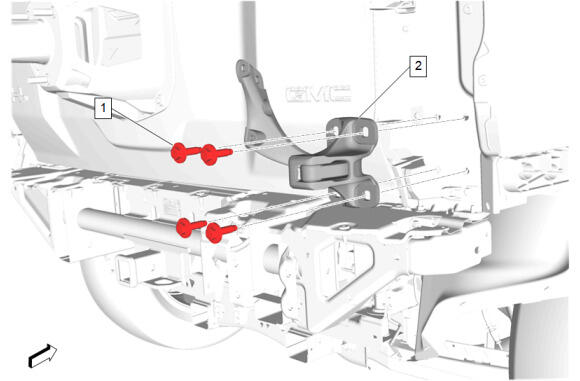

Rear Door Hinge Bolt (1) - Remove [4x]
Rear Door Lower Hinge (2) - Remove
