Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Trim Finish Compartment (2) - Remove - Front Trim Finish Compartment Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

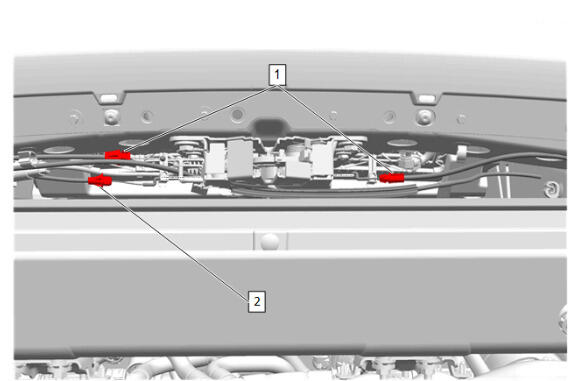

Front Stowage Compartment Latch Actuator Cable (1) - Remove [2x]
Hood Primary and Secondary Latch Release Cable (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Mark the location of the hood primary and secondary latch before removing the bolts with a grease pencil.
Hood Primary and Secondary Latch Bolt (1) - Remove
Hood Primary and Secondary Latch (2) - Remove
Disconnect the electrical connector and release the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

Hood Primary and Secondary Latch Release Cable Retainer (1) - Reposition [6x]
Front Stowage Compartment Latch Actuator Cable (2) - Reposition [2x]
Hood Primary and Secondary Latch Release Cable (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Mount Panel Bracket Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Shutter Bolt - Left Side and Right Side (1) - Remove [4x]
Hood Front Bumper Bracket Support (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

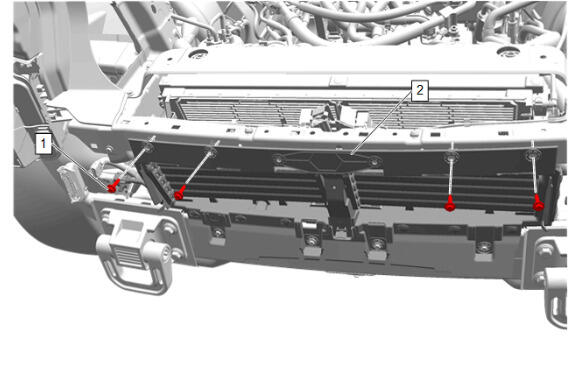

Front Bumper Shutter Bolt (1) - Remove [4x]
Reposition the front bumper shutter (2) away from the hood primary latch support.
Courtesy of GENERAL MOTORS COMPANY

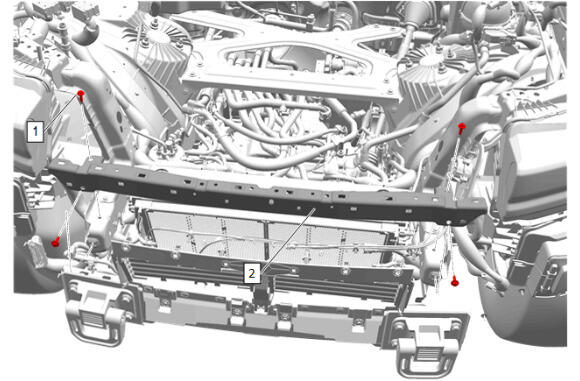

Hood Primary Latch Support Bolt (1) - Remove [4x]
Hood Primary Latch Support (2) - Remove
