Removal Procedure

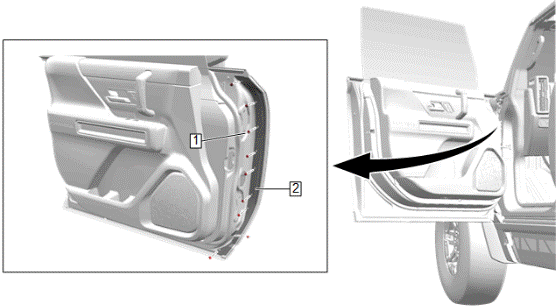

  1. GM6103586Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Front Auxiliary Weatherstrip Retainer (1) - Remove [9x]

  2. Front Side Door Front Auxiliary Weatherstrip (2) - Remove
