Installation Procedure
Clean the area where the endgate weatherstrip (1) will be installed. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.

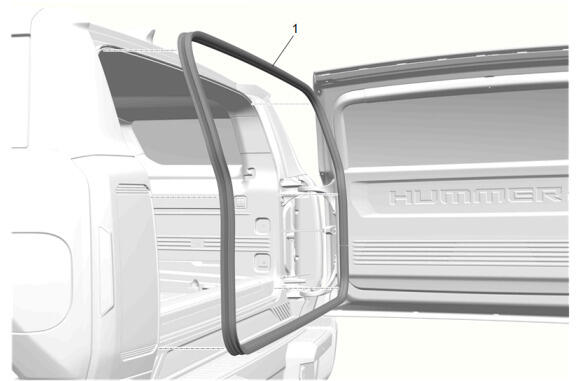

- Push to install the endgate weatherstrip (1) onto the endgate opening flange working downward along the edge.
- Ensure that the endgate weatherstrip (1) is seated on the entire endgate opening flange.
