Installation Procedure

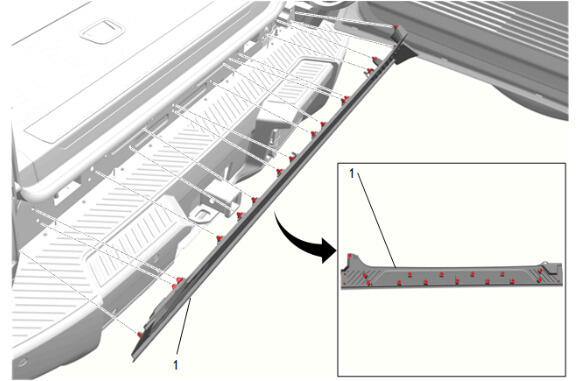

  1. GM6132739Courtesy of GENERAL MOTORS COMPANY

    Back Body Opening Side Center Gutter (1) - Install

  2. GM6126988Courtesy of GENERAL MOTORS COMPANY

    Back Body Opening Side Gutter (2) - Install

  3. Back Body Opening Side Gutter Molding Retainer (1) - Install
  4. GM6147642Courtesy of GENERAL MOTORS COMPANY

    Back Body Opening Upper Molding (1) - Install
