Installation Procedure

  1. GM5793428Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (1) - Install

  2. GM5793425Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Armrest Dampener - Right Side (3) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Floor Console Armrest Nut (2) - Install and tighten - Fastener Specifications
  4. Front Floor Console Armrest Bolt (1) - Install and tighten - Fastener Specifications
  5. GM5793420Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Rear Console Side Trim Panel - Right Side (1) - Install

  6. GM5793424Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Dampener - Left Side (3) - Install

  7. Front Floor Console Armrest Bolt (2) - Install and tighten - Fastener Specifications
  8. Front Floor Console Armrest Nut (1) - Install and tighten - Fastener Specifications
  9. GM5793419Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Rear Console Side Trim Panel - Left Side (1) - Install

  10. GM5786877Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the electrical connectors.

  11. Front Floor Console Rear Trim Panel (1) - Install
  12. GM5786876Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (2) - Install and tighten [2x] - Fastener Specifications

  13. Front Floor Console Rear Trim Plate (1) - Install
  14. Close the armrest cover.
  15. GM5786875Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  16. Front Floor Console Bolt Access Hole Cover - Right Side (1) - Install
  17. GM5786874Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Rear Cover Bolt (2) - Install and tighten - Fastener Specifications

  18. Front Floor Console Bolt Access Hole Cover - Left Side (1) - Install
  19. Return the seat to its original position.

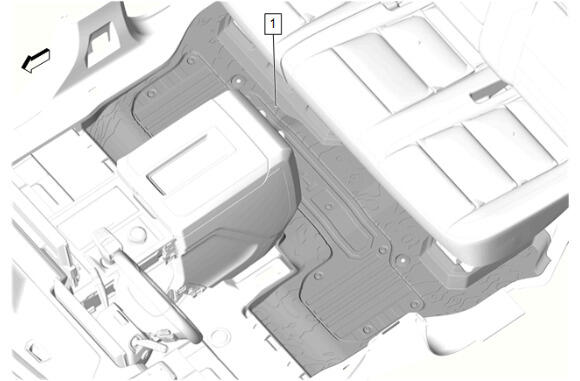

  20. GM6124682Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Rear Floor Mat (1) - Install
