Fastener Specifications

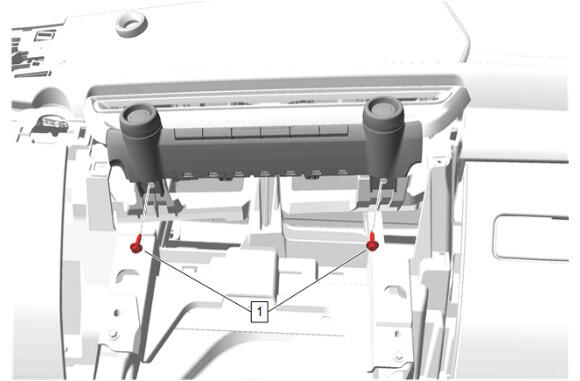

GM6385439Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning User Interface Control

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Control Bolt [2x] - - 2.5 N.m (22 lb ft) Heater and Air Conditioning User Interface Control Replacement
GM6385437Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Auxiliary Control

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Control Bolt [4x] - - 2.5 N.m (22 lb ft) Heater and Air Conditioning Auxiliary Control Replacement

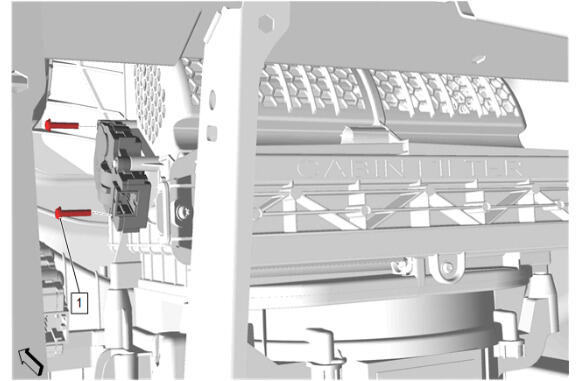

GM6385414Courtesy of GENERAL MOTORS COMPANY
Air Inlet Valve Actuator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Air Inlet Valve Actuator Replacement

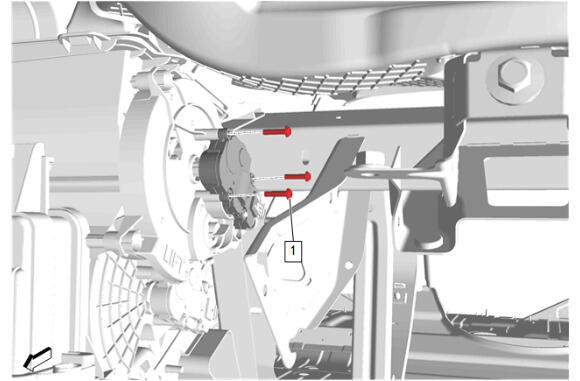

GM6385413Courtesy of GENERAL MOTORS COMPANY
Programmable Temperature Valve Actuator - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [3x] - - 1.5 N.m (13 lb in) Mode Valve Actuator Replacement

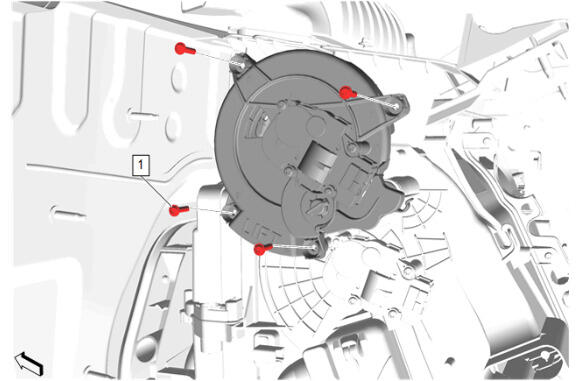

GM6385421Courtesy of GENERAL MOTORS COMPANY
Mode Control Cam

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [4x] - - 1.5 N.m (13 lb in) Mode Control Cam Replacement

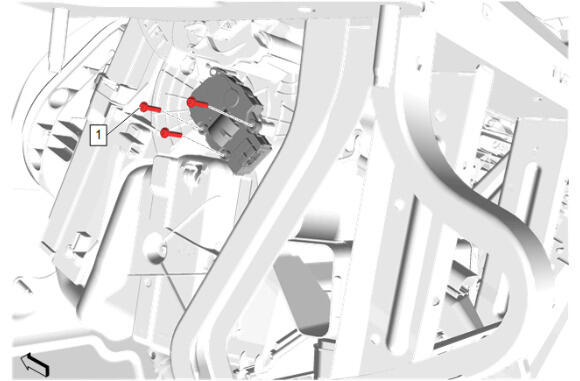

GM6385415Courtesy of GENERAL MOTORS COMPANY
Temperature Valve Actuator - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [3x] - - 1.5 N.m (13 lb in) Temperature Valve Actuator Replacement (Left Side) , or Temperature Valve Actuator Replacement (Right Side)

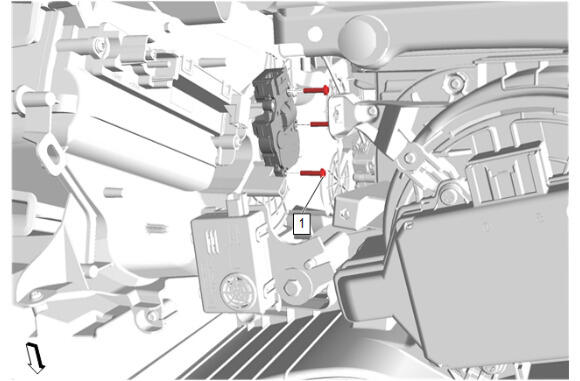

GM6385416Courtesy of GENERAL MOTORS COMPANY
Temperature Valve Actuator - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [3x] - - 1.5 N.m (13 lb in) Temperature Valve Actuator Replacement (Left Side) , or Temperature Valve Actuator Replacement (Right Side)

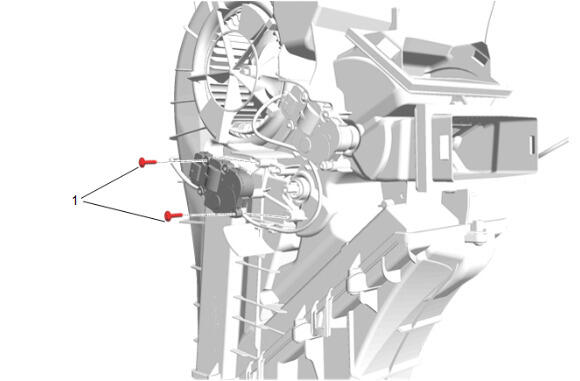

GM6385451Courtesy of GENERAL MOTORS COMPANY
Rear Programmable Temperature Valve Actuator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Rear Programmable Temperature Valve Actuator Replacement (C69)

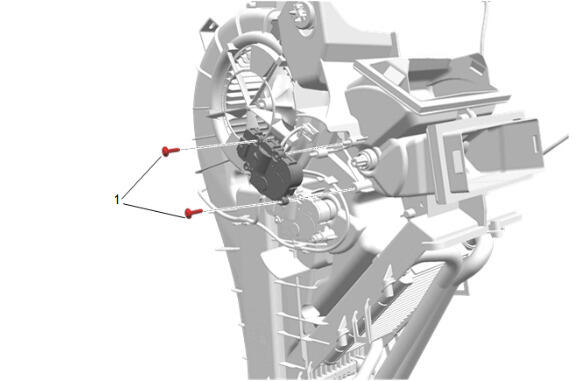

GM6385452Courtesy of GENERAL MOTORS COMPANY
Rear Programmable Mode Valve Actuator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Rear Programmable Mode Valve Actuator Replacement (C69)
