Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation
Oil Filler Cap - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
To avoid small parts like bolts or retainers fallen into the engine, install the Oil Filler Cap.

Oil Filler Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Outlet Duct Front Clamp (1) - Loosen
Air Cleaner Outlet Duct Clamp (5) - Loosen
Air Cleaner Outlet Duct Bolt (2) - Remove [2x]
Air Cleaner Outlet Duct Nut (3) - Remove
Air Cleaner Outlet Duct (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Radiator Surge Tank Bolt (1) - Remove
Without opening the cooling system position the radiator surge tank (2) aside.
Courtesy of GENERAL MOTORS COMPANY

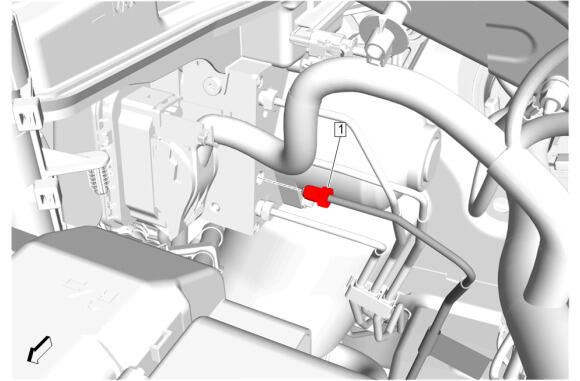

Front Brake Pipe Fitting (1) - Remove
Cap the brake master cylinder outlet to prevent brake fluid loss and contamination.
Courtesy of GENERAL MOTORS COMPANY

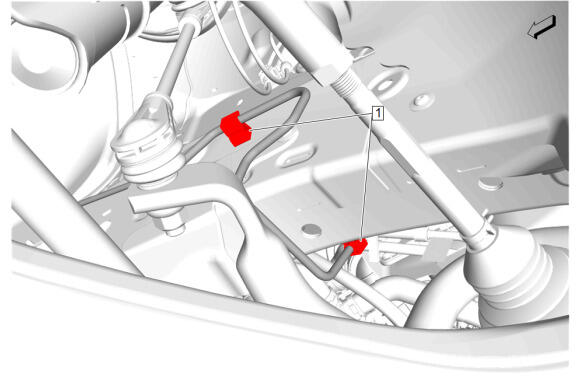

Front Brake Pipe Clip (1) - Disengage [2x]
Courtesy of GENERAL MOTORS COMPANY

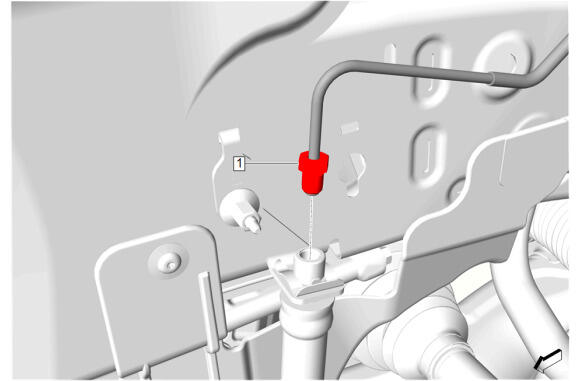

Front Brake Pipe Fitting (1) - Remove
Plug the front brake hose inlet to prevent brake fluid loss and contamination.
Courtesy of GENERAL MOTORS COMPANY

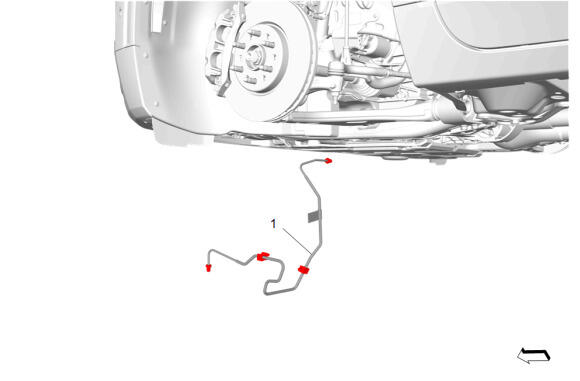

Maneuver the left front brake pipe (1) out of the vehicle.
