Removal Procedure

  1. Without draining the engine coolant, and without disconnected the hoses, position aside the radiator surge tank. Radiator Surge Tank Replacement

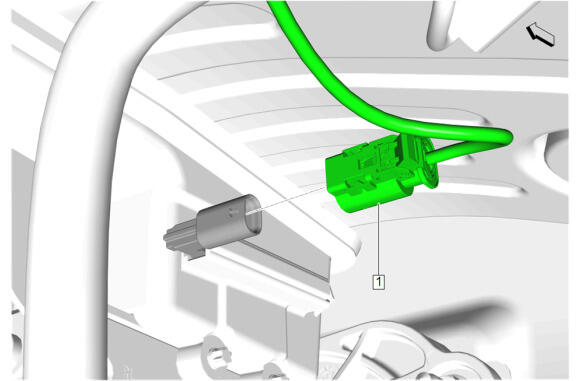

  2. GM6389538Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the locking tabs of the brake fluid level indicator switch are fully engaged in the brake master cylinder reservoir.

    Electrical Connector (1) - Disconnect

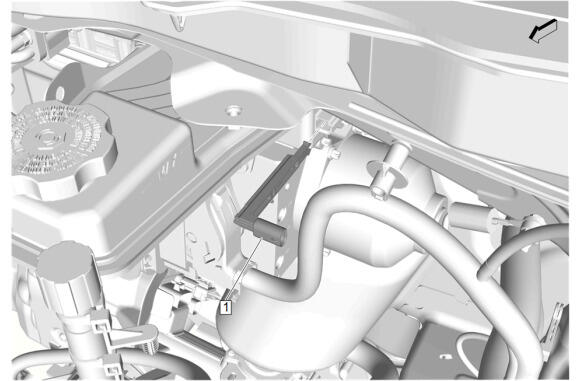

  3. GM6389539Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Indicator Switch (1) - Remove
