Removal Procedure
WARNING:
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

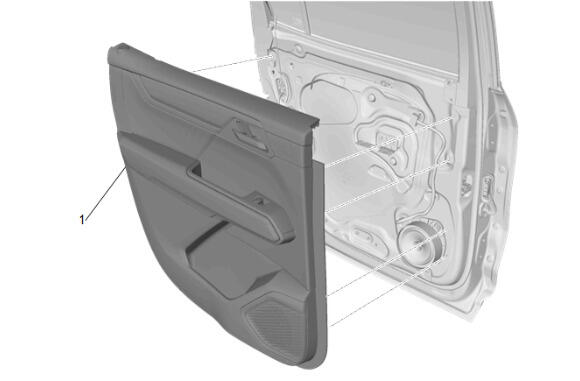

Rear Side Door Trim (1) - Remove - Rear Side Door Trim Removal and Installation

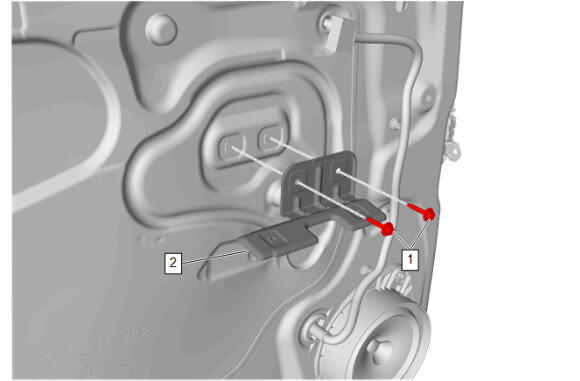

Rear Side Door Armrest Bracket Bolt (1) - Remove [2x]
- Rear Side Door Pull Handle Bracket (2) - Remove

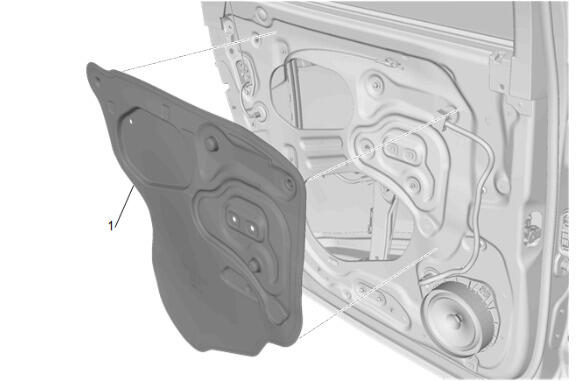

Rear Side Door Water Deflector (1) - Remove
- NOTE:
Left side shown, right side similar.
Radio Rear Side Door Speaker Bolt (1) - Remove
- Disconnect the electrical connector.
- Radio Rear Side Door Speaker (2) - Remove
Disconnect all electrical connectors.

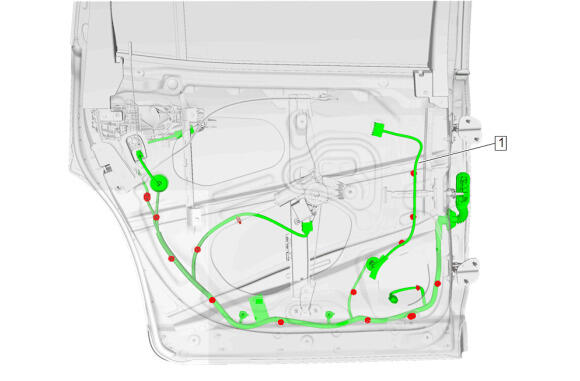

- Rear Side Door Wiring Harness (1) - Remove
NOTE:
Typical wiring harness shown, individual harness may be different due to option content.
