Removal Procedure

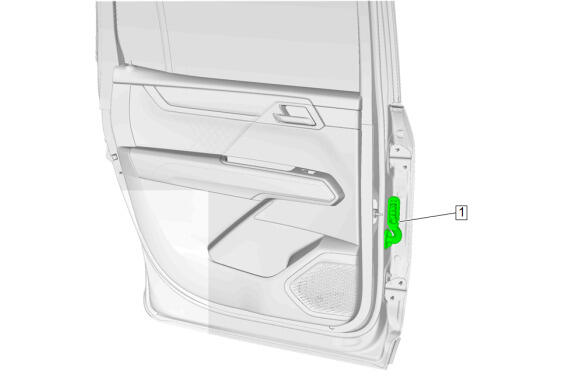

  1. GM6475665Courtesy of GENERAL MOTORS COMPANY

    Disconnect the rear side door wiring harness (1) electrical connector.

  2. GM6475666Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

  3. Mark the location of the rear side door hinges with a grease pencil to aid in alignment during installation.
  4. Support the door before removing the hinge fastener.
  5. Rear Side Door Hinge Bolt - Door Side (2) - Remove [4x]

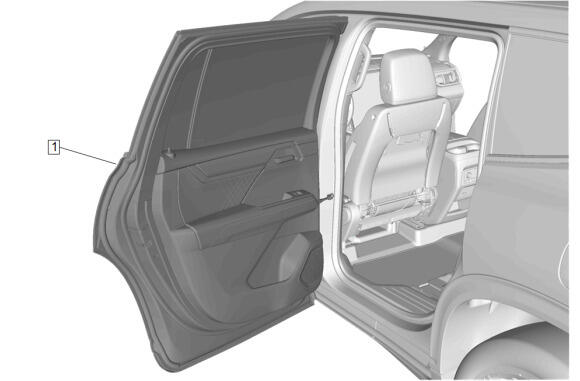

  6. GM6475667Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the rear side door (1).

  7. Transfer components as necessary.
