Removal Procedure

  1. Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation
  2. GM4751378Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Radio Rear Side Door Speaker Bolt (1) - Remove

  3. Disconnect the electrical connector.
  4. Radio Rear Side Door Speaker (2) - Remove

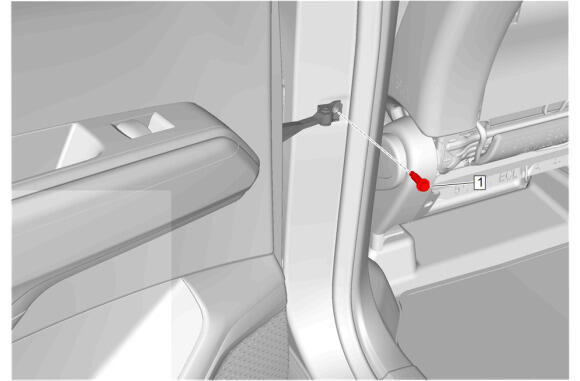

  5. GM6475662Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

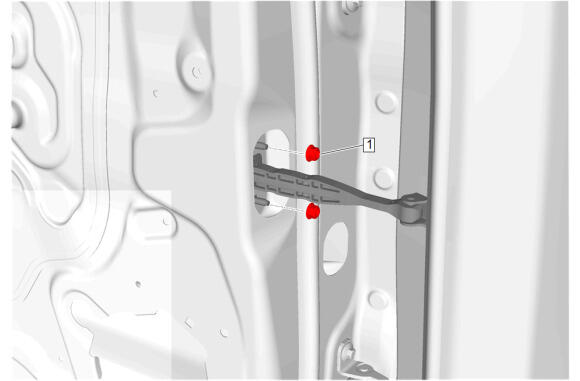

  6. GM6475663Courtesy of GENERAL MOTORS COMPANY
  7. Rear Side Door Check Link Door Side Nut (1) - Remove [2x]

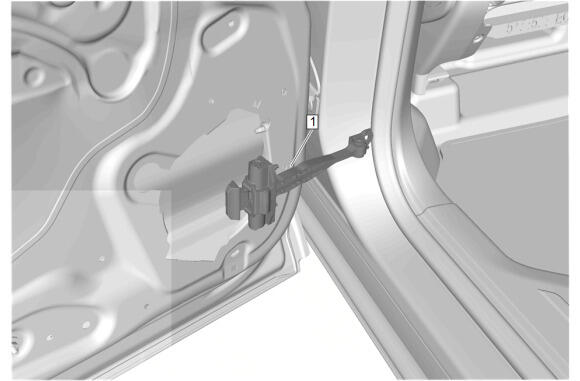

  8. GM6475664Courtesy of GENERAL MOTORS COMPANY

    Remove the rear side door check link (1) through the radio rear side door speaker hole.
