Removal Procedure
Up / Down or In / Out Adjustment
- Apply a double layer of masking tape around the perimeter of the painted surfaces.
- Rear Side Door Hinge Bolt - Door Side - Loosen
Do NOT remove the bolts from the door.

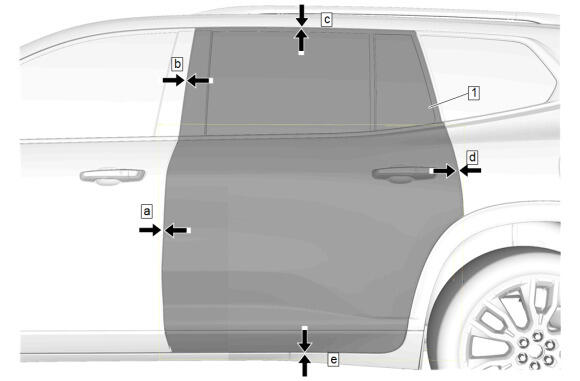

Adjust the rear side door (1) up or down by repositioning the door as necessary.
- Rear side door (1) to body side outer panel (c) 4.0 mm ± 1.5 mm (0.16 in ± 0.06 in)
- Rear side door (1) to rocker panel molding (e) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
- Adjust the rear side door (1) in or out by repositioning the door as necessary.
- Rear side door (1) to front side door (a) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Ensure the rear side door window frame front applique and front side door window frame rear applique gap (b) is 4.0 ± 1.5 mm (0.16 ± 0.06 in)
- Ensure the rear side door weatherstrip to body side outer panel gap (c) is consistent and the weatherstrip is fully seated.
- Rear side door (1) to body side outer panel (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Rear side door (1) to rocker panel molding (e) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
Fore / Aft Adjustment
- Apply a double layer of masking tape around the perimeter of the painted surfaces.
- Rear Side Door Hinge Bolt - Body Side - Loosen
Do NOT remove the bolts from the door.

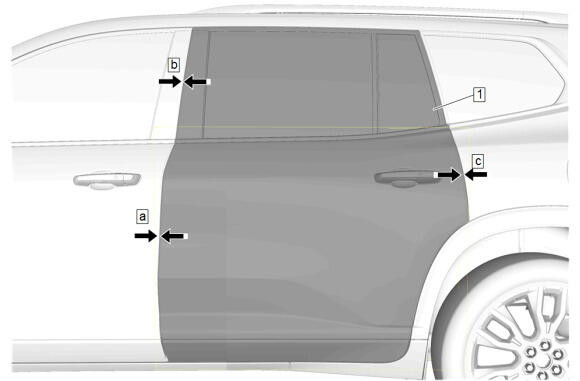

Adjust the rear side door (1) fore and aft by repositioning the door as necessary.
- Rear side door (1) to front side door (a) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Rear side door window frame front applique to front side door window frame rear applique 4.0 ± 1.5 mm (0.16 in ± 0.06 in)
- Rear side door (1) to body side outer panel (c) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
