Removal Procedure

  1. GM6478656Courtesy of GENERAL MOTORS COMPANY

    Liftgate - Remove - Liftgate Removal and Installation

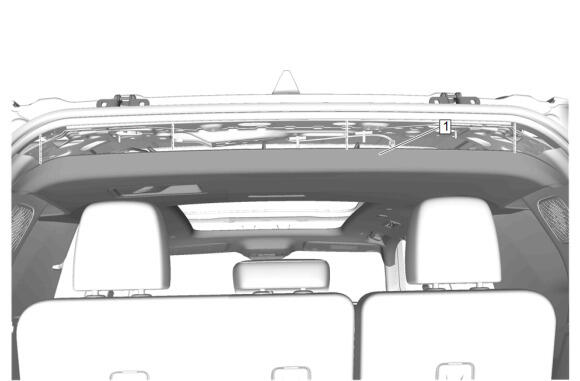

  2. GM6401141Courtesy of GENERAL MOTORS COMPANY

    Lower headlining trim panel (1) enough to access the liftgate hinge nuts. - Headlining Trim Panel Replacement (With CAJ) , or Headlining Trim Panel Replacement (Without CAJ)

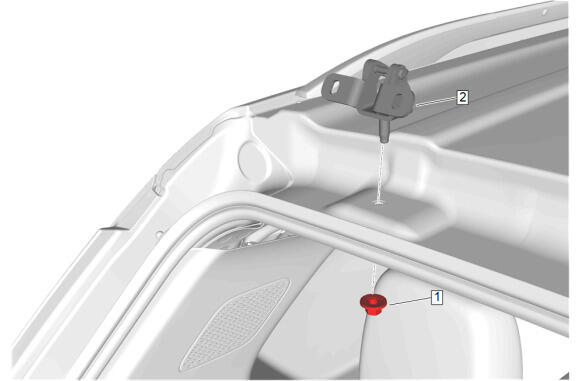

  3. GM6478659Courtesy of GENERAL MOTORS COMPANY

    Liftgate Hinge Nut (1) - Remove

  4. Liftgate Hinge (2) - Remove
