Installation Procedure

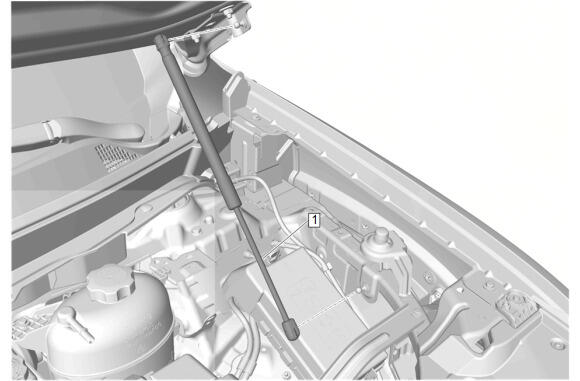

  1. GM6465645Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Hood Strut (1) - Install

  2. Install the 2 metal clips to each end of the hood strut (1).
  3. Remove the hood support.
