Installation Procedure

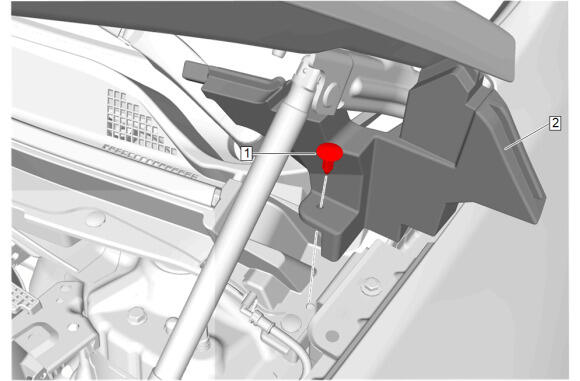

  1. GM6465641Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Hood Rear Outer Air Inlet Seal (2) - Install

  2. Hood Rear Outer Air Inlet Seal Retainer (1) - Install
