Removal Procedure

  1. GM6465587Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

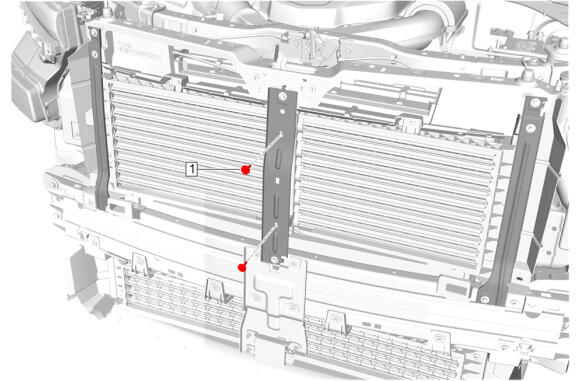

  2. GM6397927Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Bolt (1) - Remove [2x]

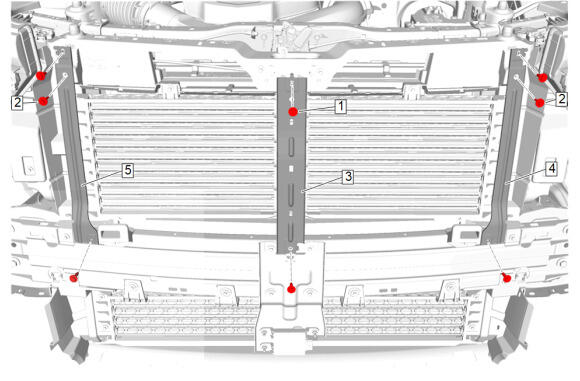

  3. GM6397995Courtesy of GENERAL MOTORS COMPANY

    Hood Front Bumper Bracket Support Bolt (1) - Remove [6x]

  4. Hood Front Bumper Bracket Support Bolt (2) - Remove [2x]
  5. Hood Front Bumper Bracket Support- Center (3) - Remove
  6. Hood Front Bumper Bracket Support- Left Side (4) - Remove
  7. Hood Front Bumper Bracket Support- Right Side (5) - Remove
