Installation Procedure

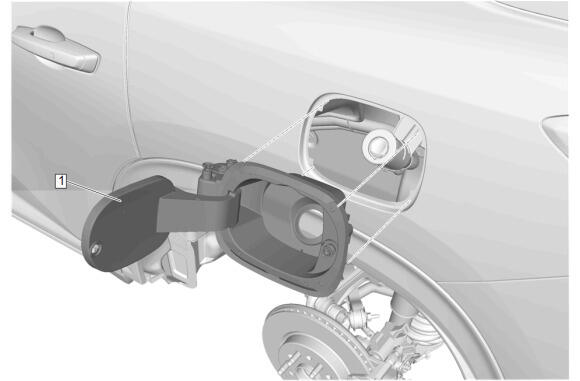

  1. GM6398024Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Door Latch Housing (1) - Install

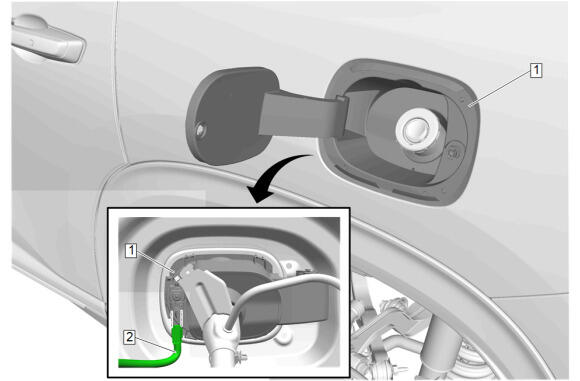

  2. GM6397993Courtesy of GENERAL MOTORS COMPANY

    Ensure that the fuel tank filler door latch housing is fully seated and that all retaining tabs are locked.

  3. Ensure the fuel tank filler door latch housing seal is fully seated to the filler pipe.
  4. { If equipped } Connect the electrical connector (2).

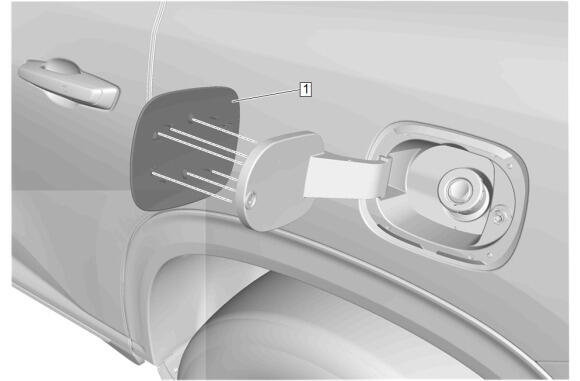

  5. GM6397924Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Door (1) - Install -

  6. GM6465566Courtesy of GENERAL MOTORS COMPANY

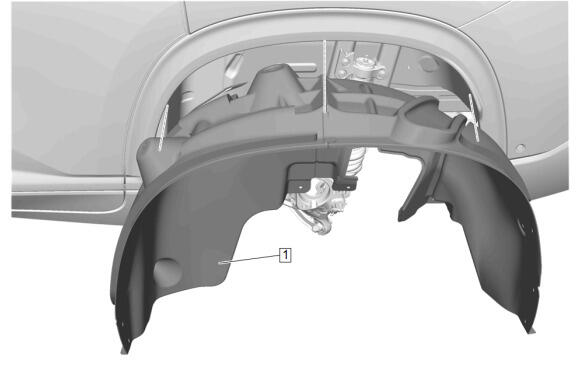

    Rear Wheelhouse Liner (1) - Install - Rear Wheelhouse Liner Replacement
