Removal Procedure

  1. Open both side doors.

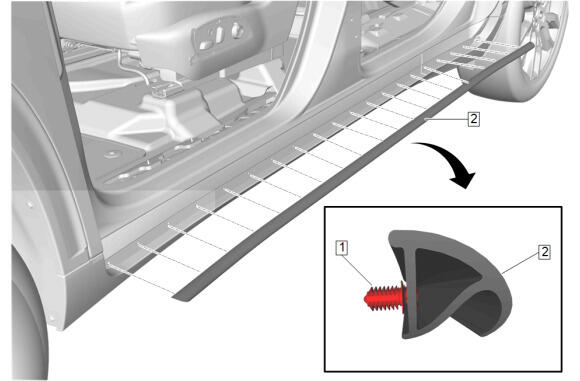

  2. GM6465199Courtesy of GENERAL MOTORS COMPANY

    Front and Rear Side Door Lower Auxiliary Weatherstrip Retainer (1) - Release [20x]

  3. Front and Rear Side Door Lower Auxiliary Weatherstrip (2) - Remove
