Removal Procedure
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

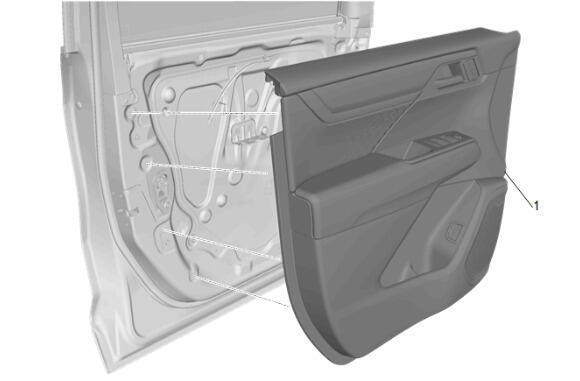

Front Side Door Trim (1) - Remove - Front Side Door Trim Removal and Installation

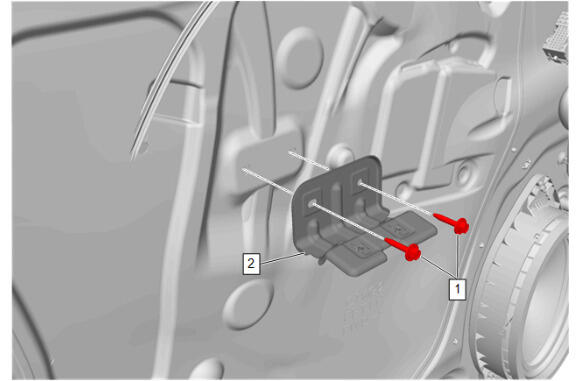

Front Side Door Armrest Bracket Bolt (1) - Remove [2x]
- Front Side Door Armrest Bracket (2) - Remove

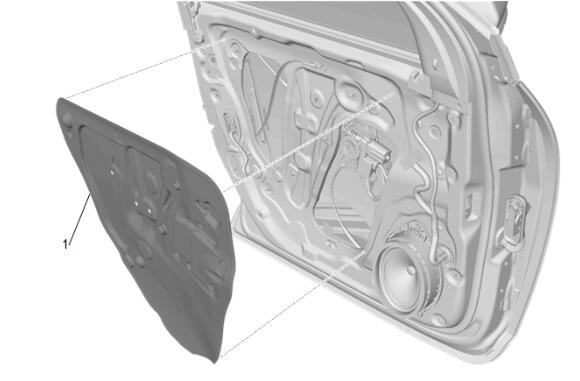

Front Side Door Water Deflector (1) - Remove
- NOTE:
Left side shown, right side similar.
Radio Front Side Door Speaker Bolt (1) - Remove
- Disconnect the electrical connector.
- Radio Front Side Door Speaker (2) - Remove

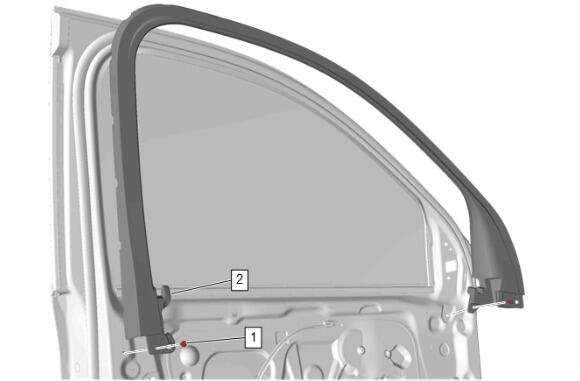

- Front Side Door Window Garnish Molding Retainer (1) - Remove [2x]
- Front Side Door Window Garnish Front Molding (2) - Remove
Disconnect all electrical connectors.
- Front Side Door Wiring Harness (1) - Remove
Typical wiring harness shown, individual harness may be different due to option content.
